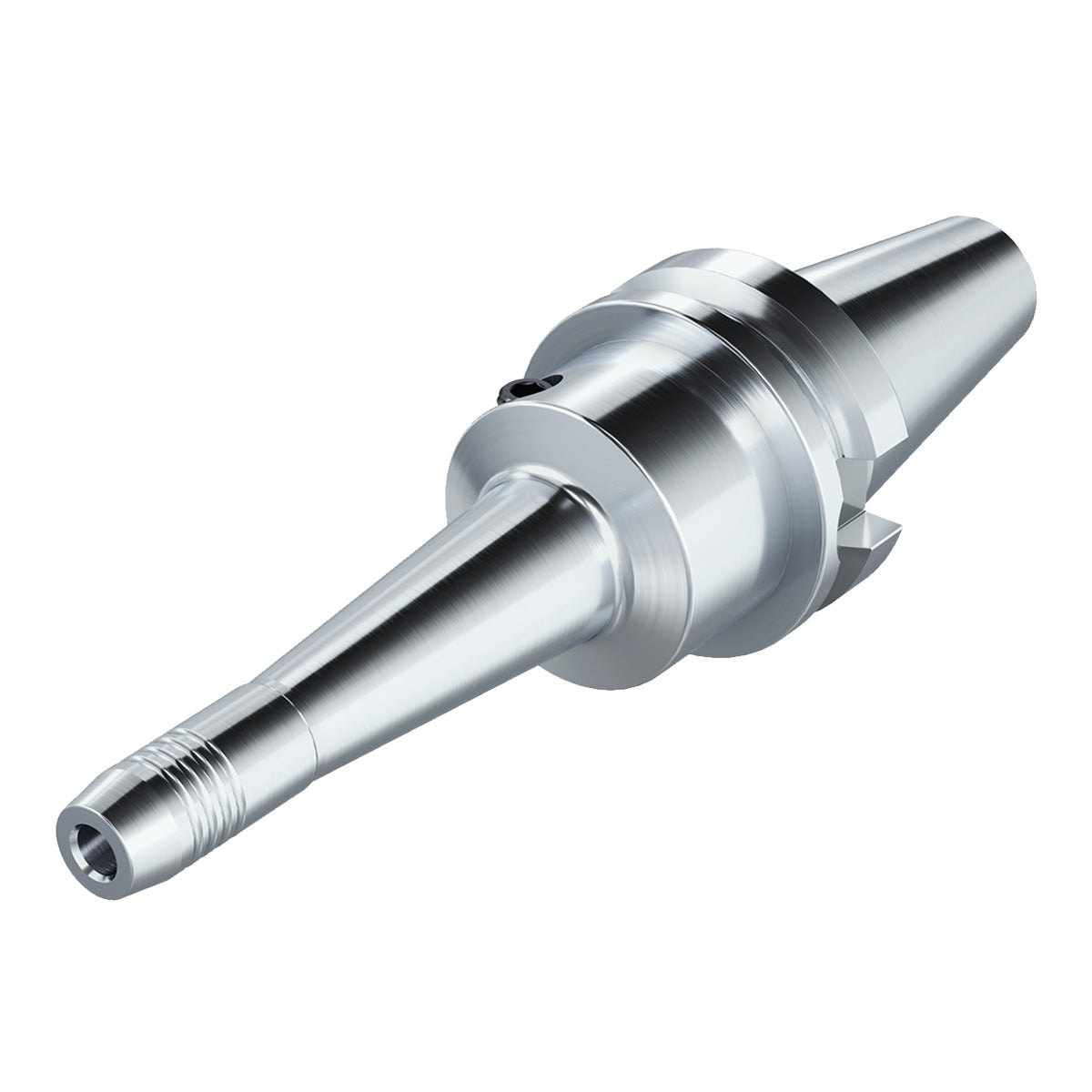

Hydraulic expansion chuck BT 40 - 08 - 160

Name: Hydraulic expansion chuck BT 40 - 08 - 160
Brand: Kemmler GmbH
SKU: KEM-406.HSL08.160
Price: 439.0 EUR
Availability:  InStock

Hydraulic expansion chuck BT 40 - 08 - 160

€439.00

Tax included. Shipping calculated at checkout.

Product Details

Application:
For mounting straight-shank tools acc. DIN 1835 form A+B+E and DIN 6535 form HB+HE.
Especially in operations in toolmaking and mould making. Wherever reduced interference contours are required.

Specifications

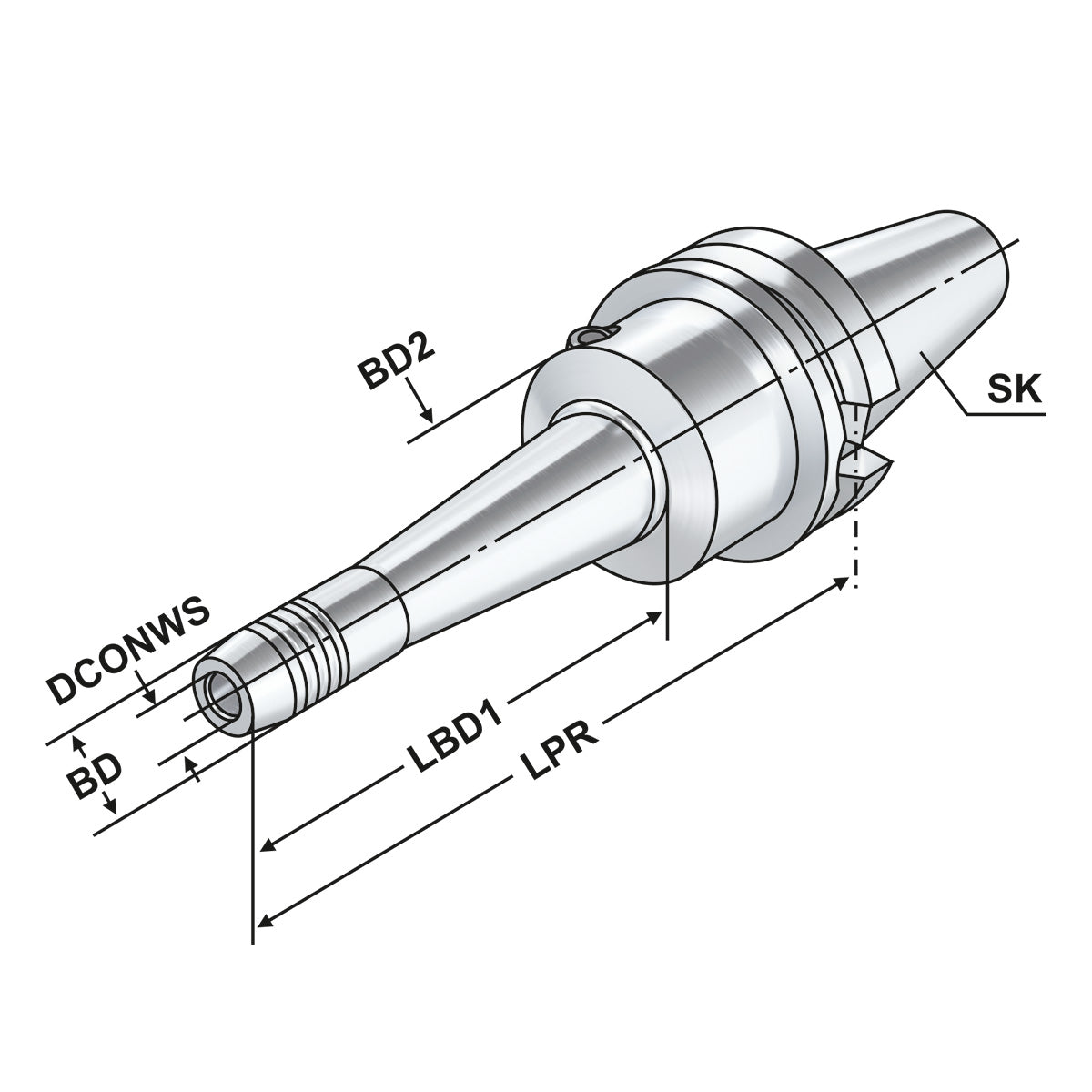

Property	Specification
DCONWS	8
BD	18
ADINTMS	ISO 7388-2 (MAS-BT)
ADINTWS	Hydro-Dehnspannfutter
DRVS	5
Rundlauf	< 3µm
LPR	160
BD2	50
CNSC	JD/JF (AD/B)
SK	BT 40
Auswuchtgüte	G2,5 \| 25.000 1/min
THID	M6x1
ADJRGA	10
LSCX	37
LBD1	103
