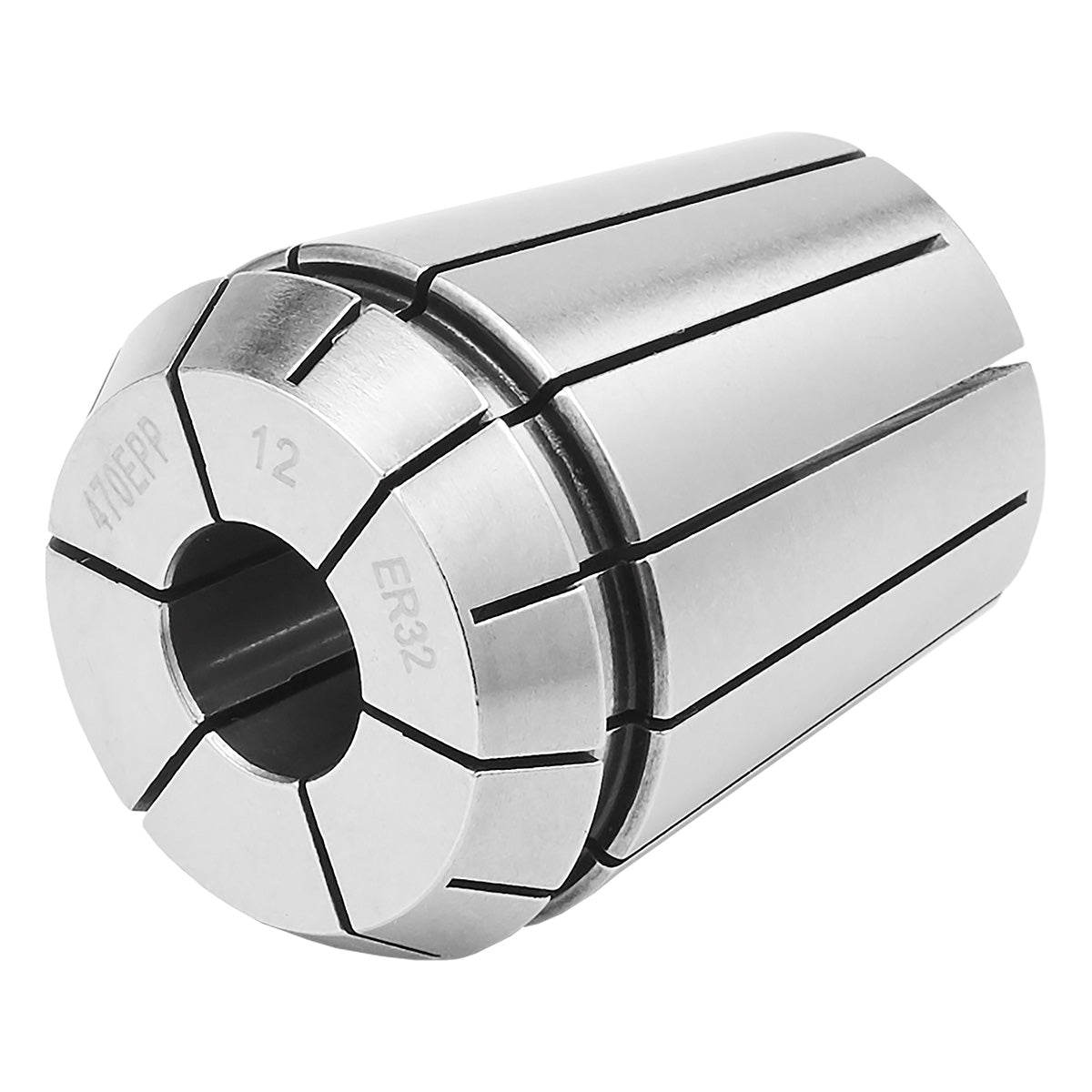

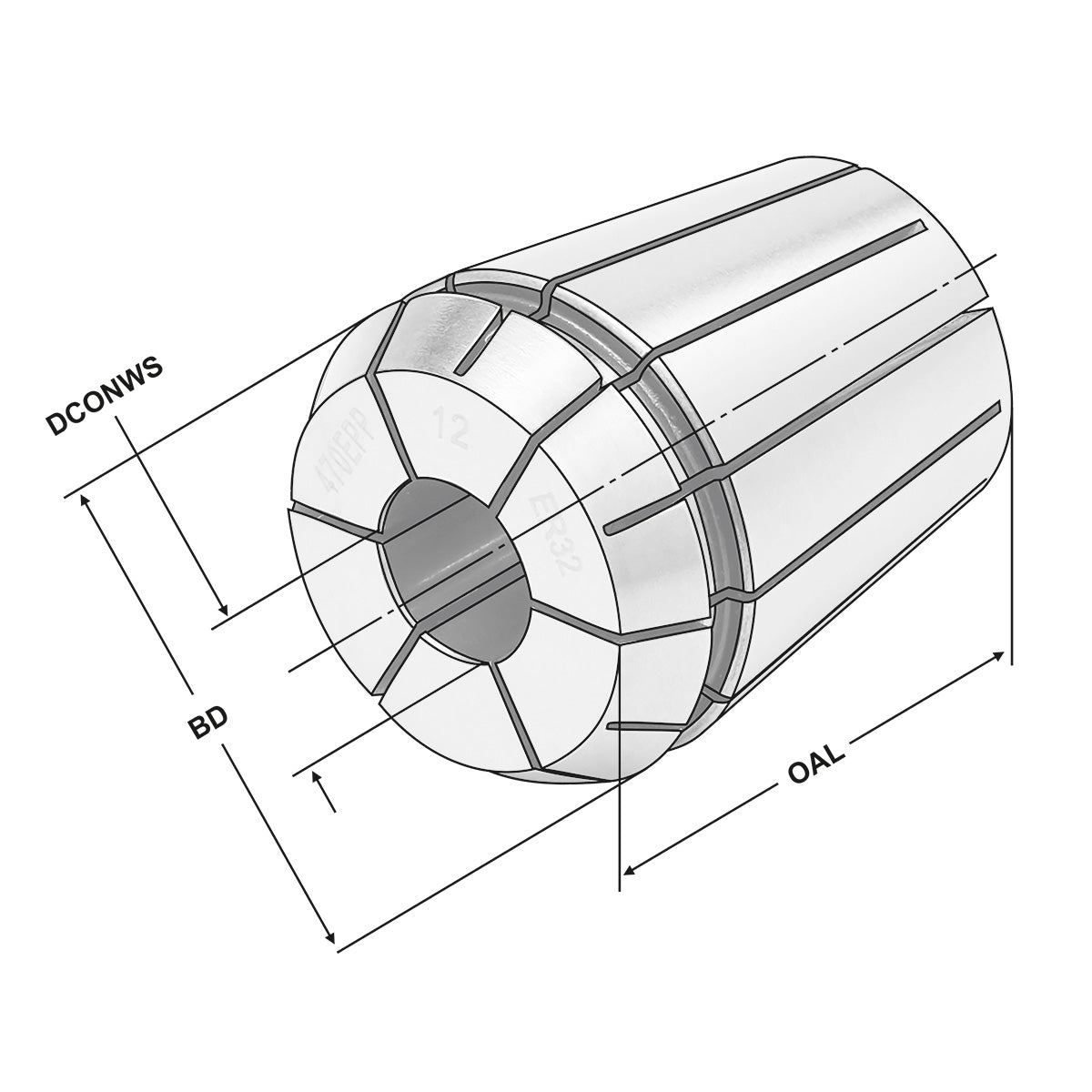

ER-Precision collet ER32 | 470EPP | < 3 µm | Ø 20,0

Application:
For mounting straight-shank tools in collet chucks ISO 15488 (ex. DIN 6499).

Version:
System concentricity and repetition accuracy 3 µm (3×D, maximum = 50 mm), in conjunction with „KEMMLER Precision collet chuck ER".

Suitable for:
KEMMLER Precision collet chuck ER or standard collet chuck Spannfutter ISO 15488 (ex. DIN 6499).

Note:
The collet clamping Ø range is always up to 0.5 mm less than nominal.
