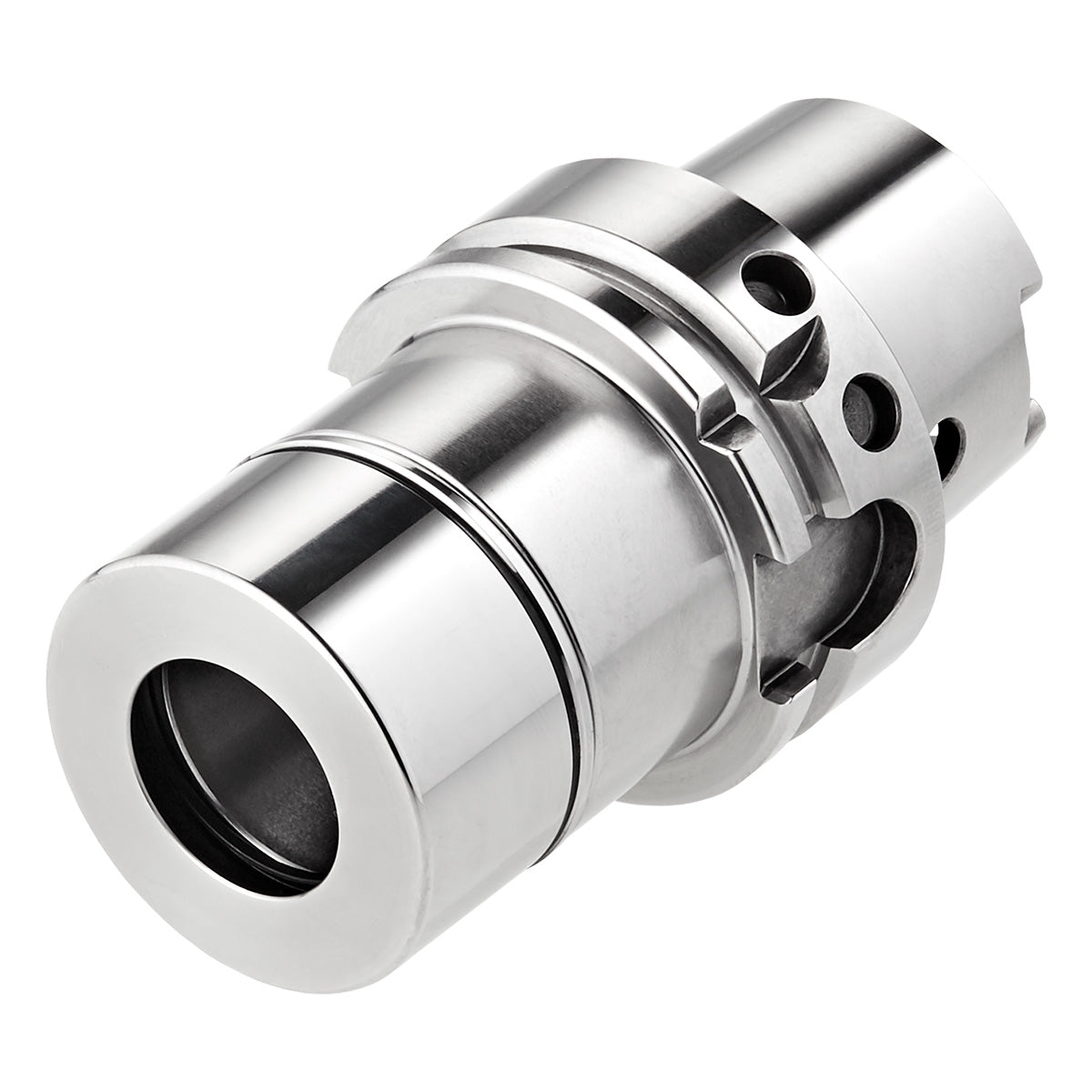

ER-Precision collet chuck HSK 100 - 2/20 - 100 | ER 32

ER-Precision collet chuck HSK 100 - 2/20 - 100 | ER 32

€256.00
€256.00
Tax included. Shipping calculated at checkout.

Product Details

Application:
For mounting straight-shank tools in 2 µm-collets.

Advantage:

  • Excellent concentricity in the system (chuck + collet + clamping nut)
  • 3 µm radial run-out with a 2 µm clamping nut, 6 µm radial run-out with a 5 µm clamping nut
  • Extremely strong holding force (increases the holding power by at least 60% compared to standard ER chuck)
  • Plain clamping nut without grooves for high speed machining
Specifications

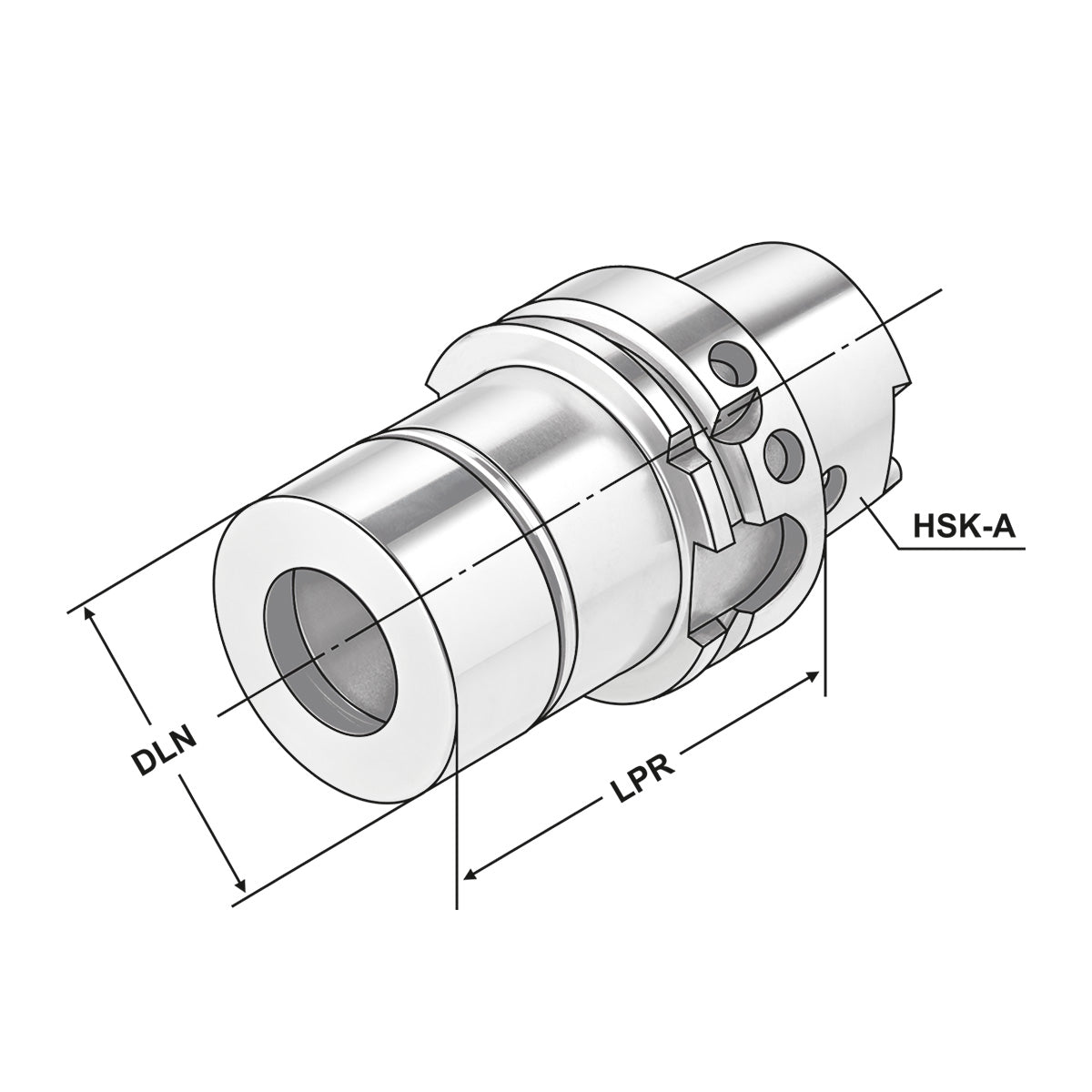

PropertySpecification
DCONWS2 - 20
Typ470E | ER 32
LB61
ADINTMSISO 12164 (HSK-A)
ADINTWSPräzisions-Spannzangenfutter ER
DLN50
LPR100
AuswuchtgüteG2,5 | 25.000 1/min
DCPJa
DCPSD10/H4,5
THIDM16 x 2,0
HSKHSK-A 100
max. Rundlaufabweichung< 3µm
Expected delivery date:
11 Sep Usually ready in 6-7 days.
