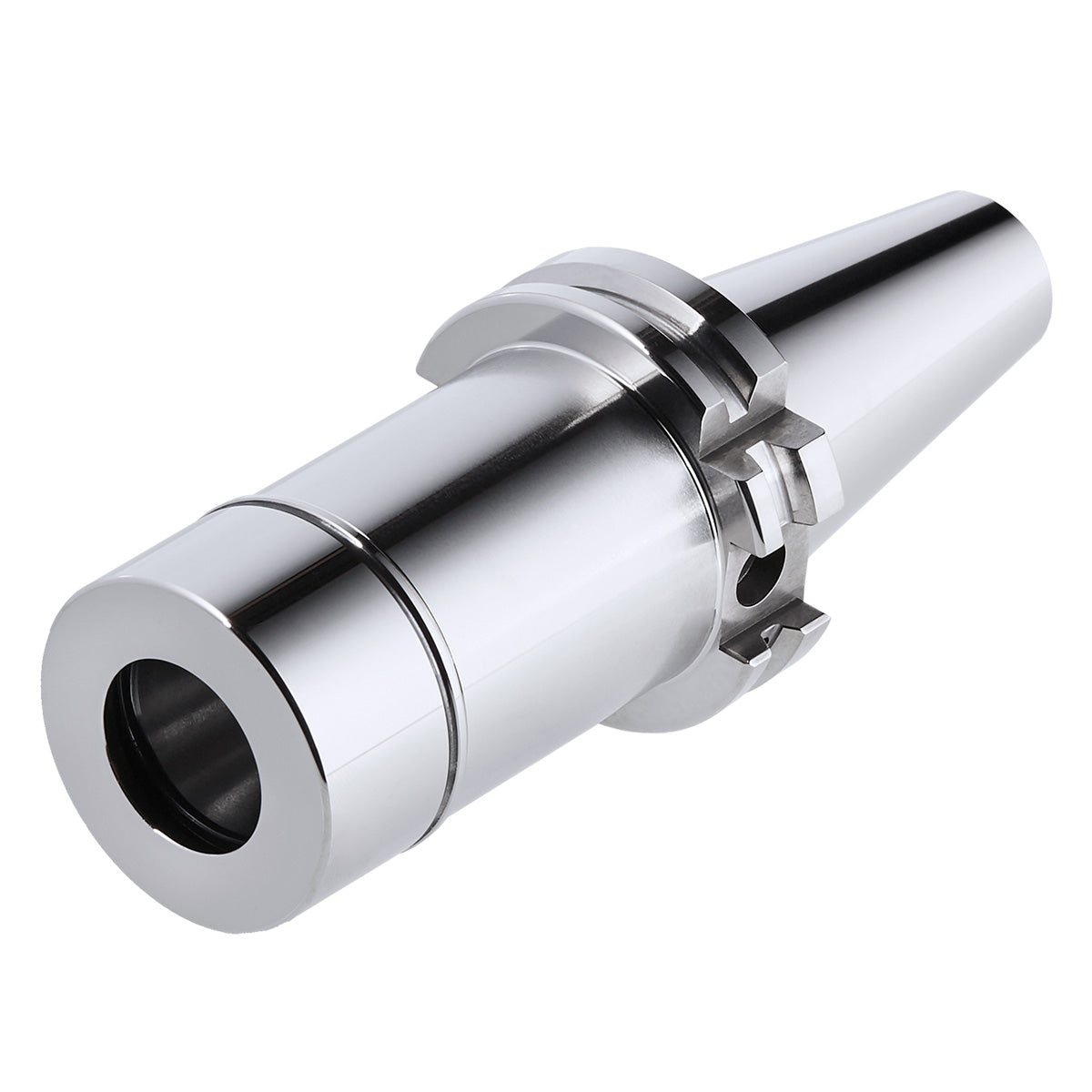

ER-Precision collet chuck SK 40 - 2/20 - 70 | ER 32

ER-Precision collet chuck SK 40 - 2/20 - 70 | ER 32

€99.00
€99.00
Tax included. Shipping calculated at checkout.

Product Details

Application:
For mounting straight-shank tools in 3µm-collets.

Advantage:

  • Excellent concentricity in the system (chuck + collet + clamping nut)
  • Extremely strong holding force (increases the holding power by at least 60% compared to standard ER chuck)
  • Plain clamping nut without grooves for high speed machining

Note:
Only nominal size DCONWS can be clamped.

Delivery:
With precision clamping nut

Specifications
PropertySpecification
DCONWS2 - 20
Typ470E | ER 32
LB50,1
ADINTMSISO 7388-1 (DIN 69871)
ADINTWSPräzisions-Spannzangenfutter ER
Rundlauf< 3µm

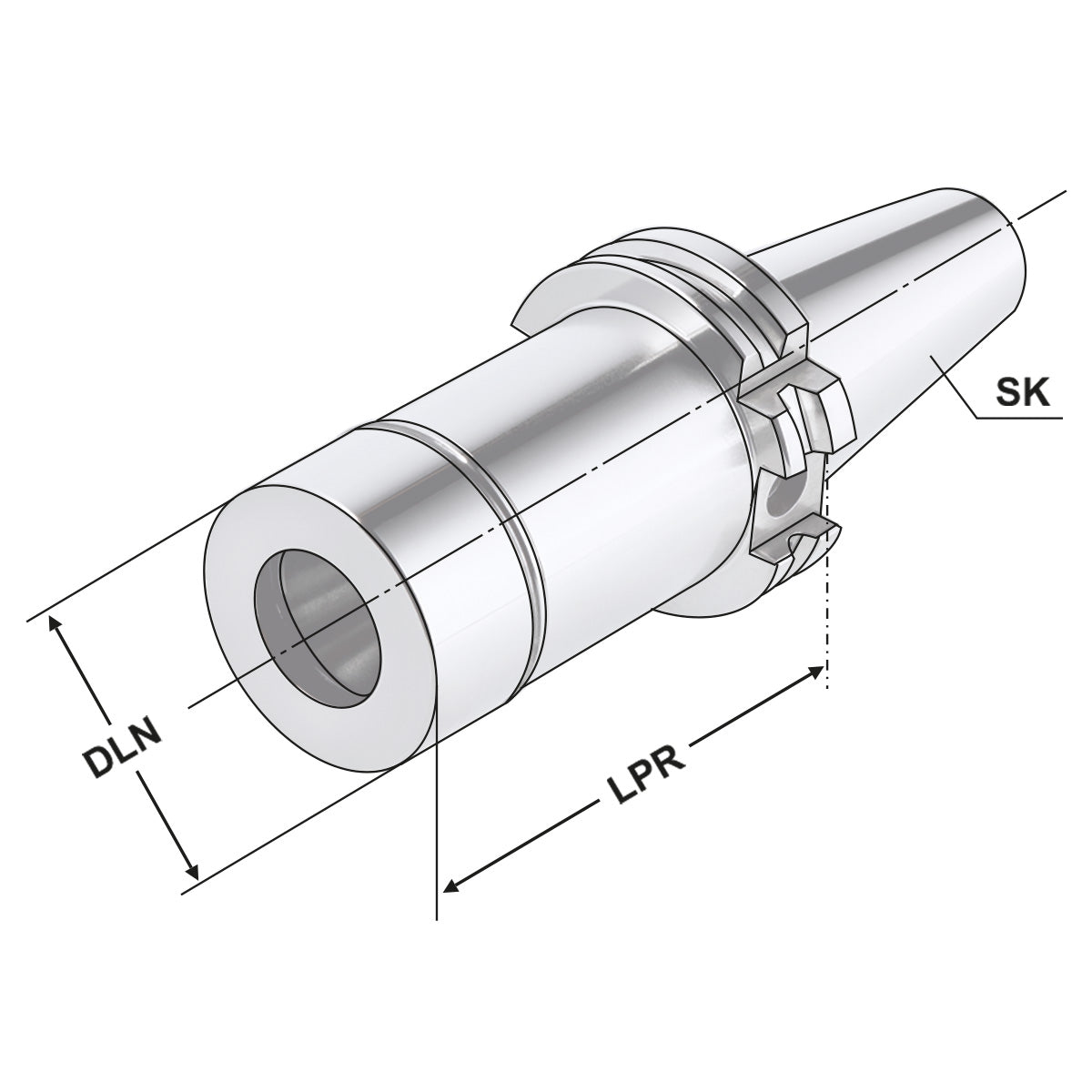

DLN50
LPR70
CNSCAD
SKSK 40
AuswuchtgüteG2,5 | 25.000 1/min
DCPJa
DCPSD10/H4,5
THIDM16 x 2,0
Expected delivery date:
16 Sep Usually ready in 6-7 days.
