Product Details

Application:
For mounting straight-shank tools in collets. To use for high speed cutting and high precision milling.

Delivery:
With balanced clamping nut

  • All holders are made of forged steel
  • Specific, low warpage hardened
  • Surface hardened HRC 58~60
  • Hardening depth 0,8mm~0,9mm
  • Surface roughness Ra < 0,4 µm
  • Tensile strength in the core of min. 800 N/mm² after DIN
  • All functional surfaces fine machined

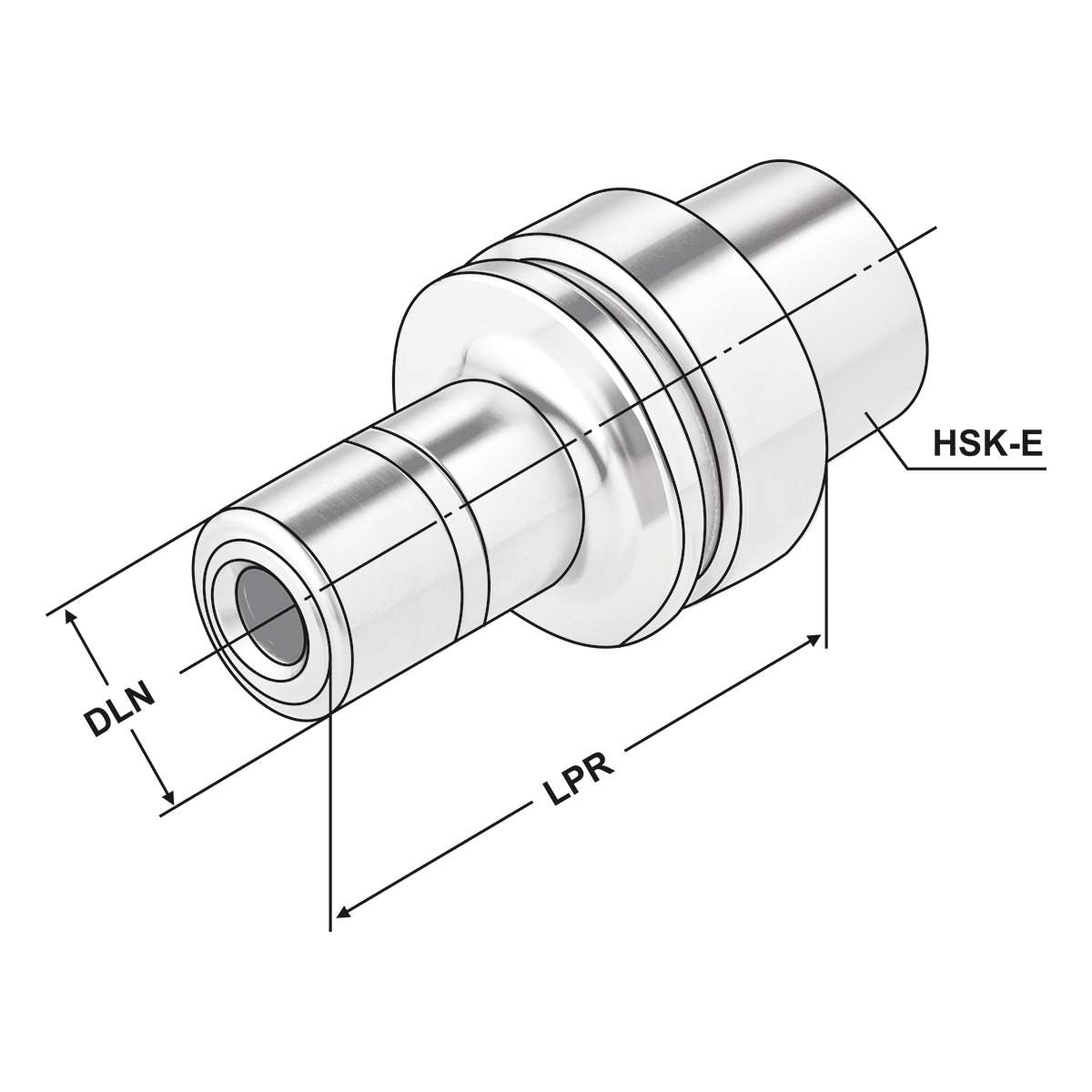

Specifications
PropertySpecification
DCONWS4 - 16
Typ496E | KPS 16
ADINTMSDIN 69893-5 (HSK-E)
ADINTWSKPS Spannzangenfutter
Rundlauf< 3µm
DLN40,0
LPR75
AuswuchtgüteG2,5 | 30.000 1/min
THIDM18 x 1,50
HSKHSK-E 40
