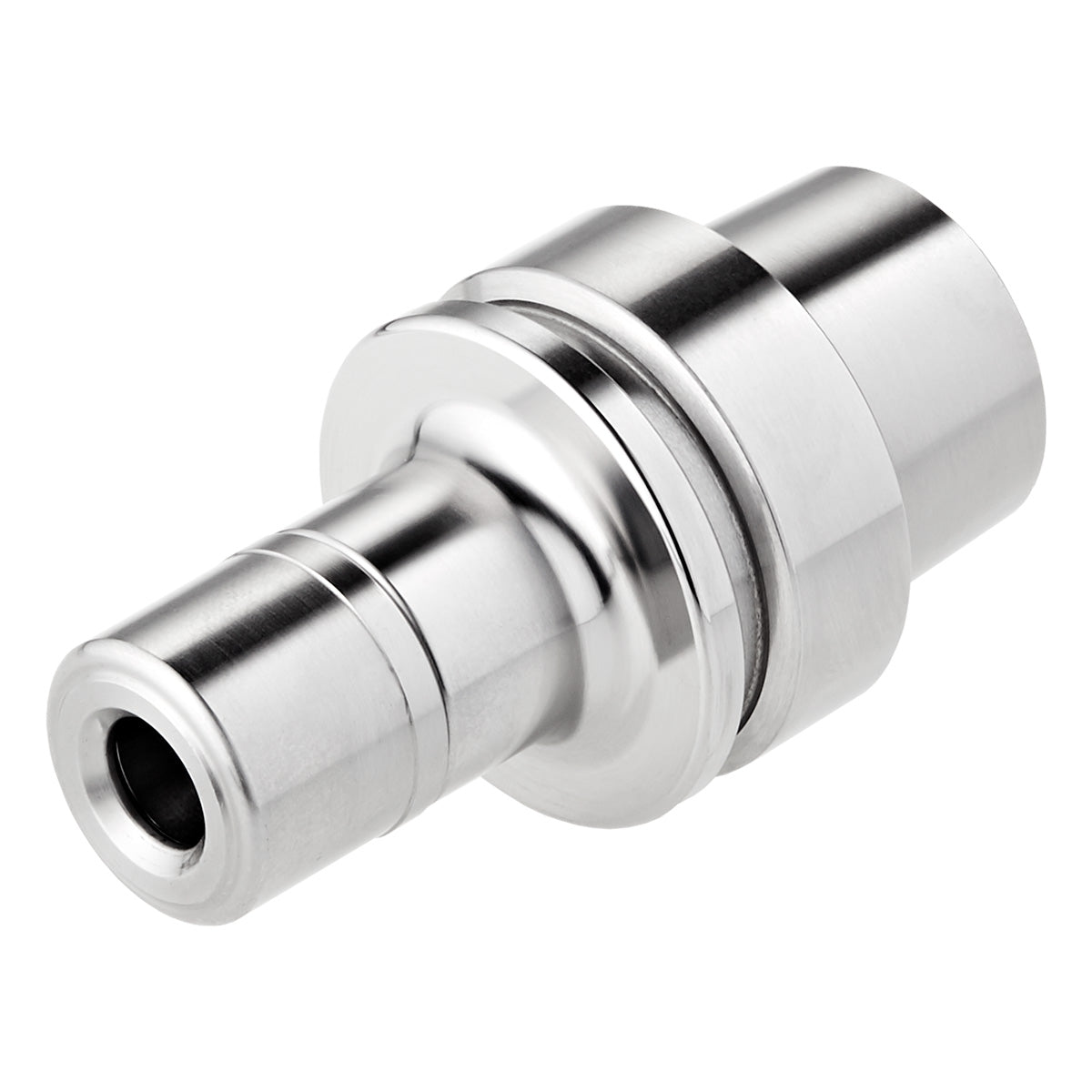

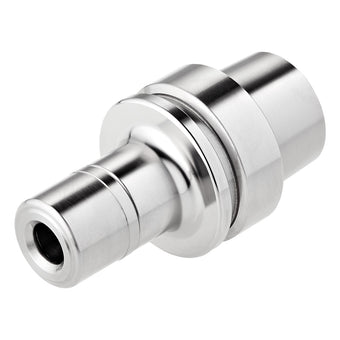

KPS-Collet chuck HSK 40 - 1/10 - 75 | KPS 10

KPS-Collet chuck HSK 40 - 1/10 - 75 | KPS 10

€120.00
€120.00
Tax included. Shipping calculated at checkout.

Product Details

Application:
For mounting straight-shank tools in collets. To use for high speed cutting and high precision milling.

Delivery:
With balanced clamping nut

  • All holders are made of forged steel
  • Specific, low warpage hardened
  • Surface hardened HRC 58~60
  • Hardening depth 0,8mm~0,9mm
  • Surface roughness Ra < 0,4 µm
  • Tensile strength in the core of min. 800 N/mm² after DIN
  • All functional surfaces fine machined





Specifications
PropertySpecification
DCONWS1 - 10
Typ490E | KPS 10
ADINTMSDIN 69893-5 (HSK-E)
ADINTWSKPS Spannzangenfutter
Rundlauf< 3µm

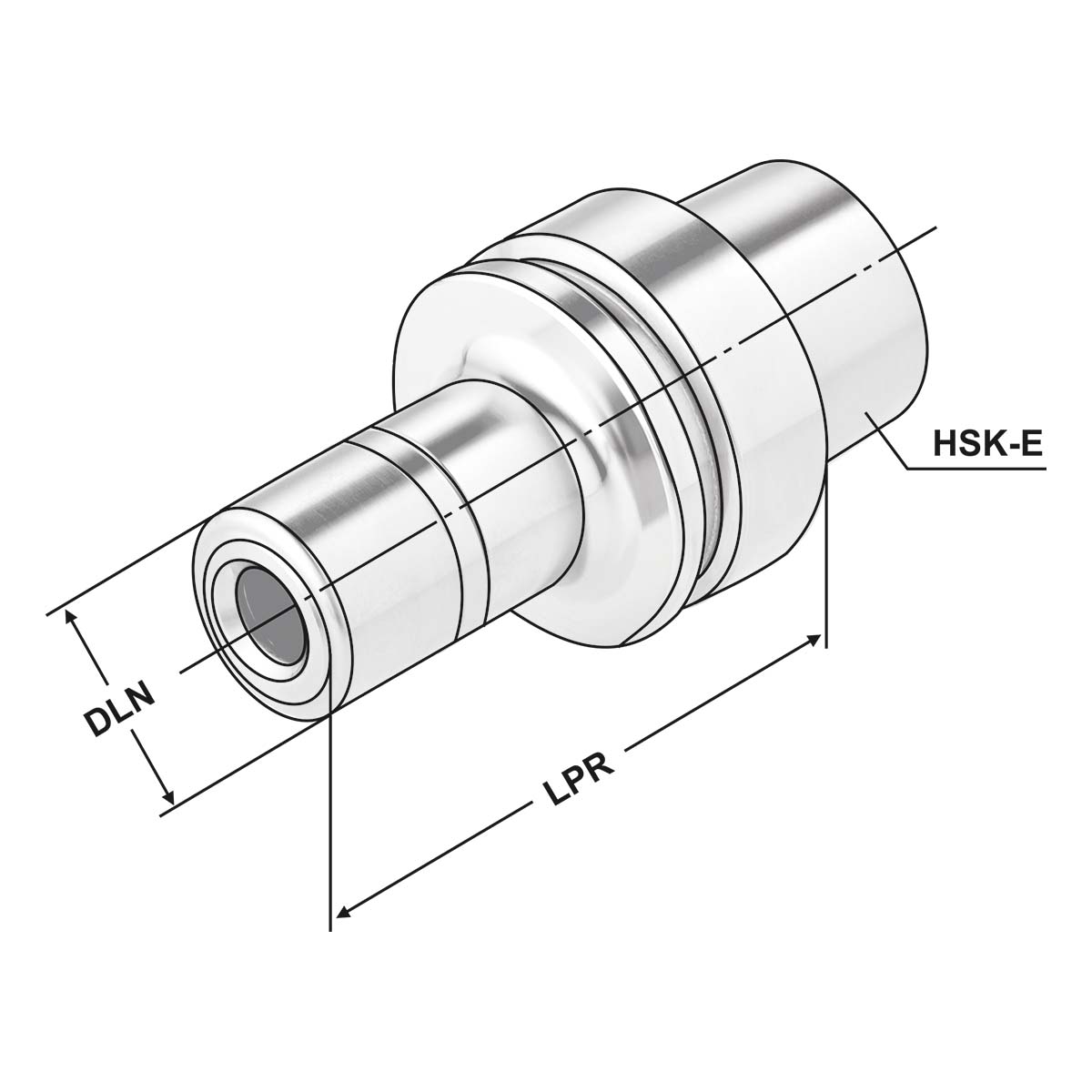

DLN27,5
LPR75
AuswuchtgüteG2,5 | 30.000 1/min
THIDM12 x 1,75
HSKHSK-E 40
