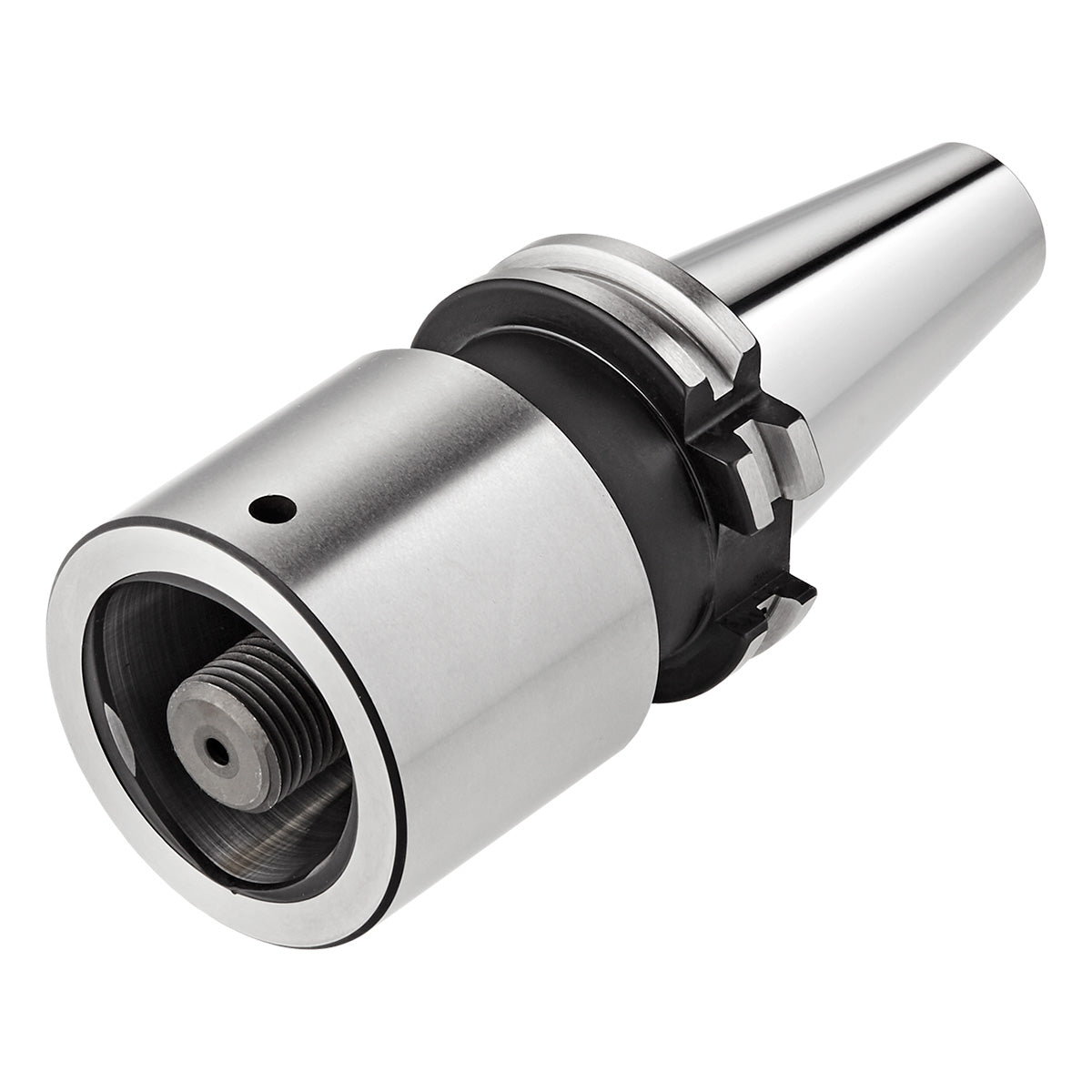

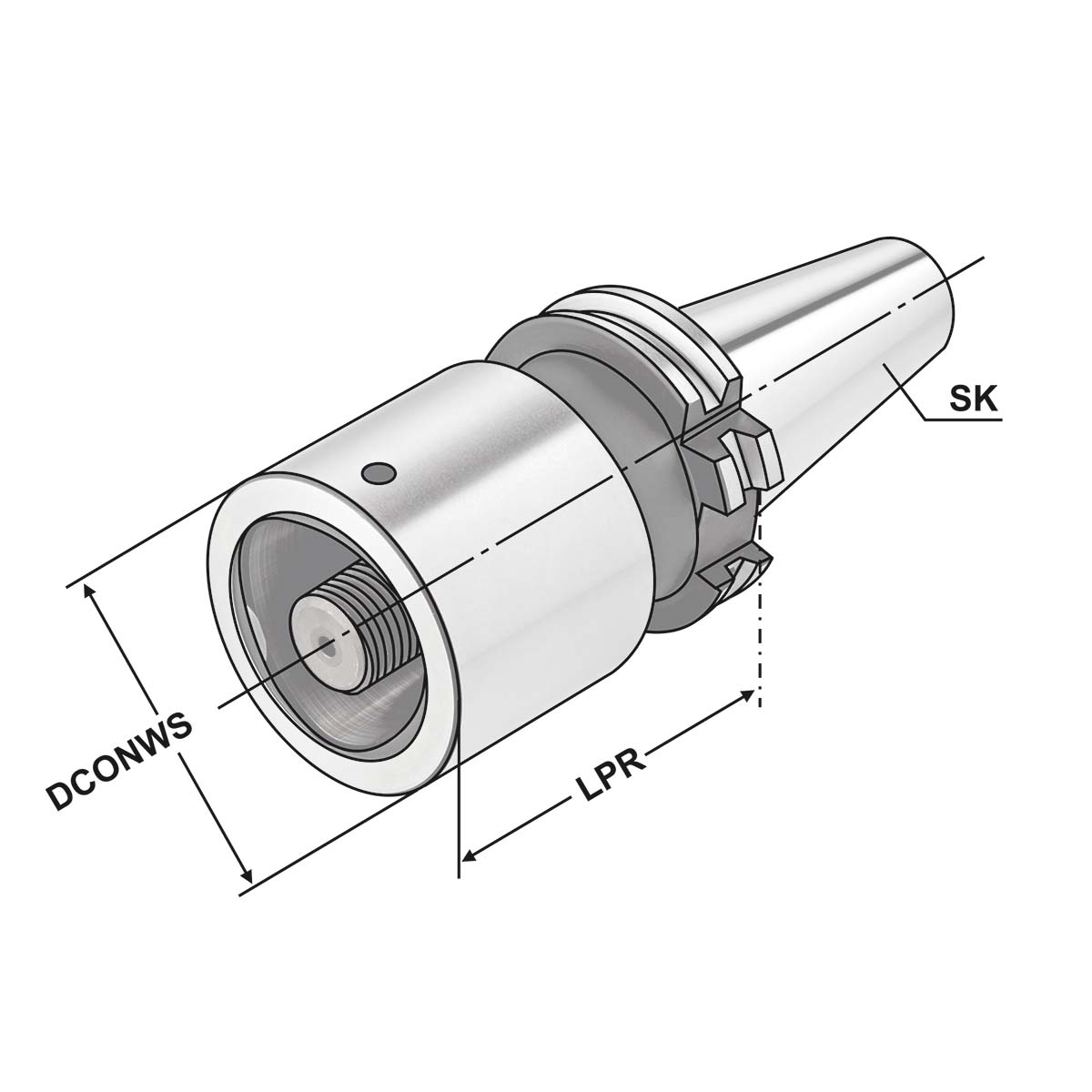

Adaptor SK to ISO 26623 (PSK) SK 40 - PSK 32 - 30

Application:
For adaption from ISO40 to PSC (ISO 7388-1 to ISO 26623-1)

Delivery:
Clamping screw

Version:
Adapters ISO / PSK with axial clamping. Ground internally and externally. The internal thread provided for the coolant tube in the PSC toolholder is plugged with the socket-head screw incorporated in the adapter. The clamping screw incorporates a through hole, so the system is suitable for through-coolant feed.
Suitable for tool arbor with polygonal shank (PSC) - ISO 26623-1.
