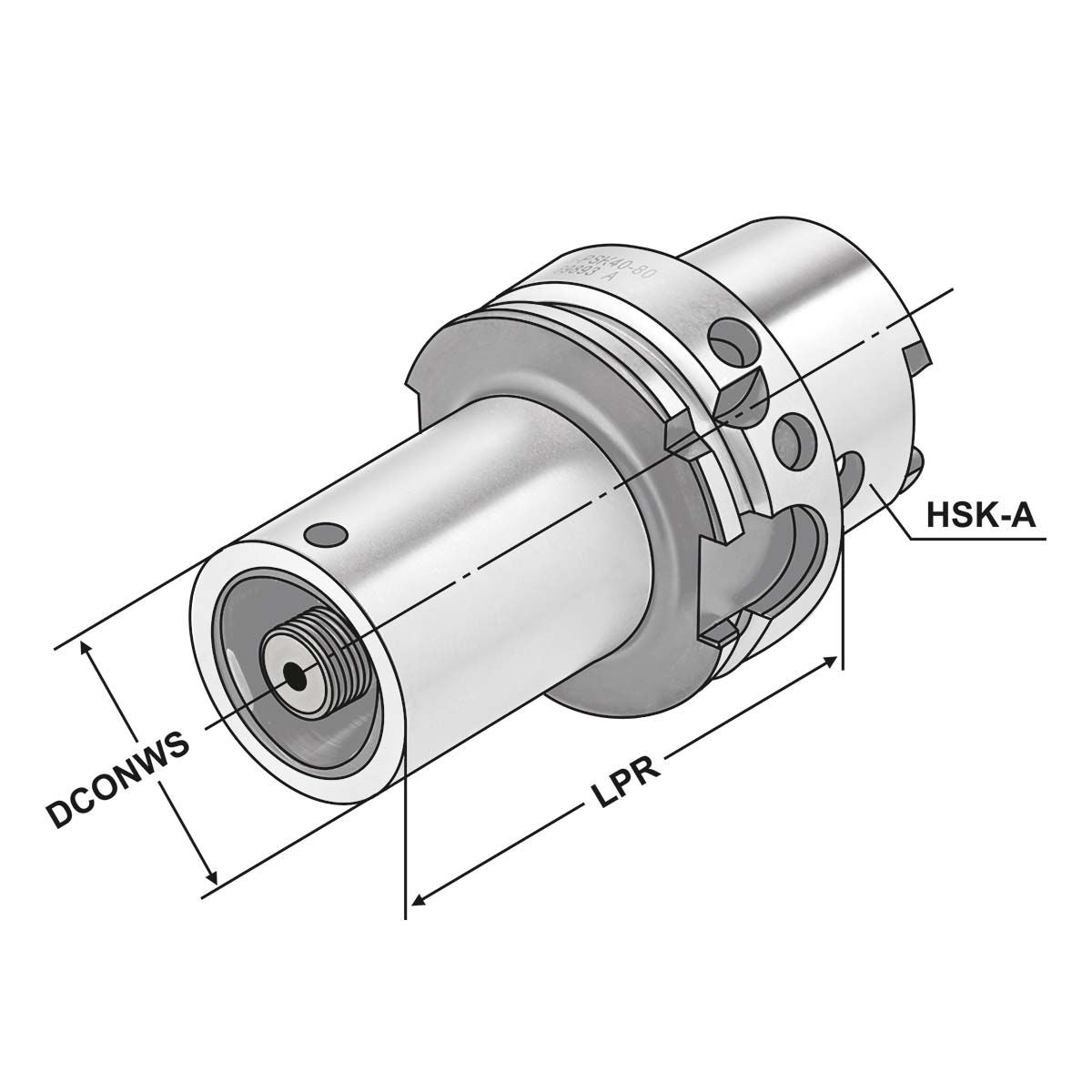

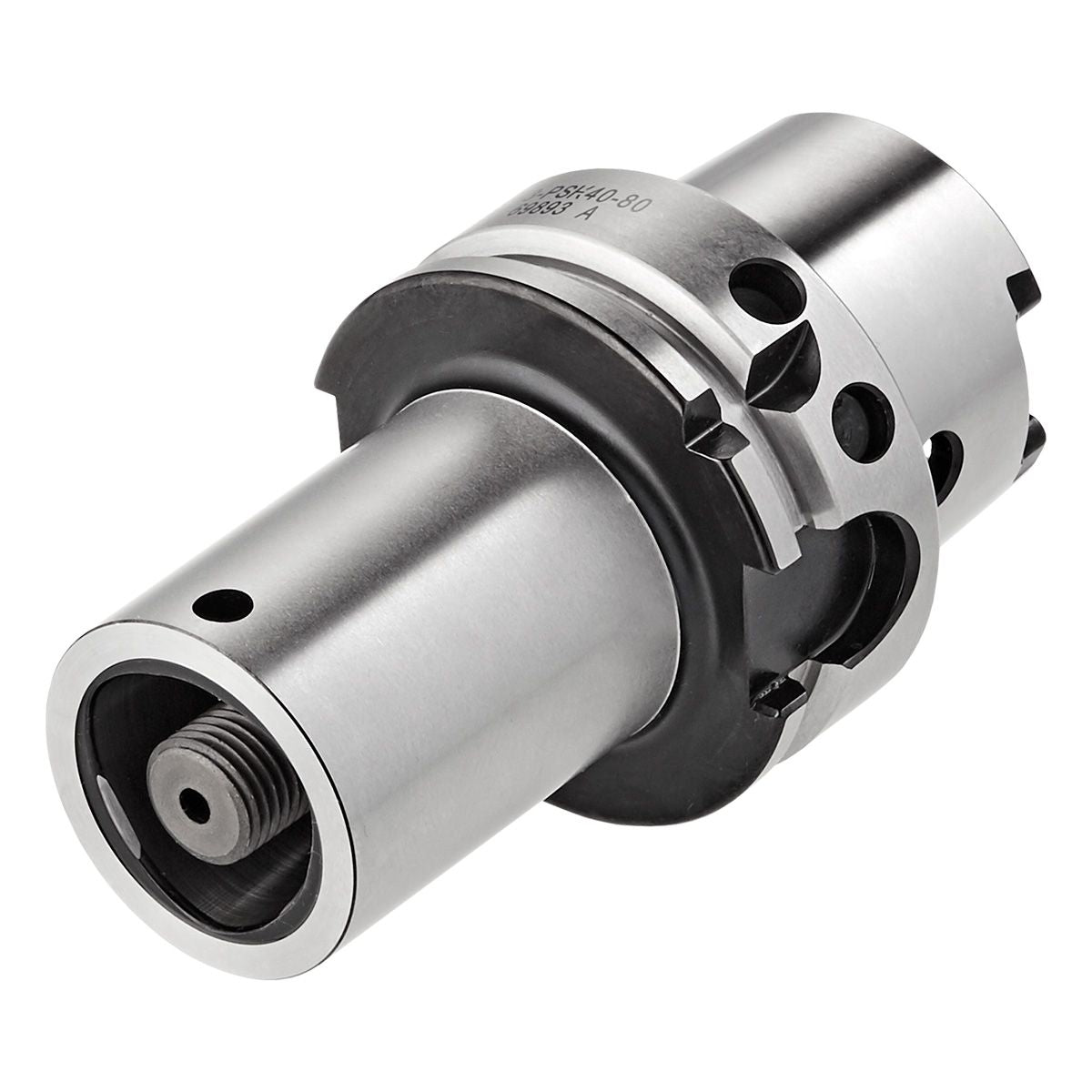

Adapters SK to ISO 26623 (PSK) HSK 63 - PSK 50 - 90

Application:
For adaption from HSK-A to PSC (ISO 7388-1 to ISO 26623-1)

Delivery:
Clamping screw

Version:
Adapters HSK / PSK with axial clamping. Ground internally and externally. The internal thread provided for the coolant tube in the PSC toolholder is plugged with the socket-head screw incorporated in the adapter. The clamping screw incorporates a through hole, so the system is suitable for through-coolant feed. Suitable for tool arbor with polygonal shank (PSC) - ISO 26623-1.
