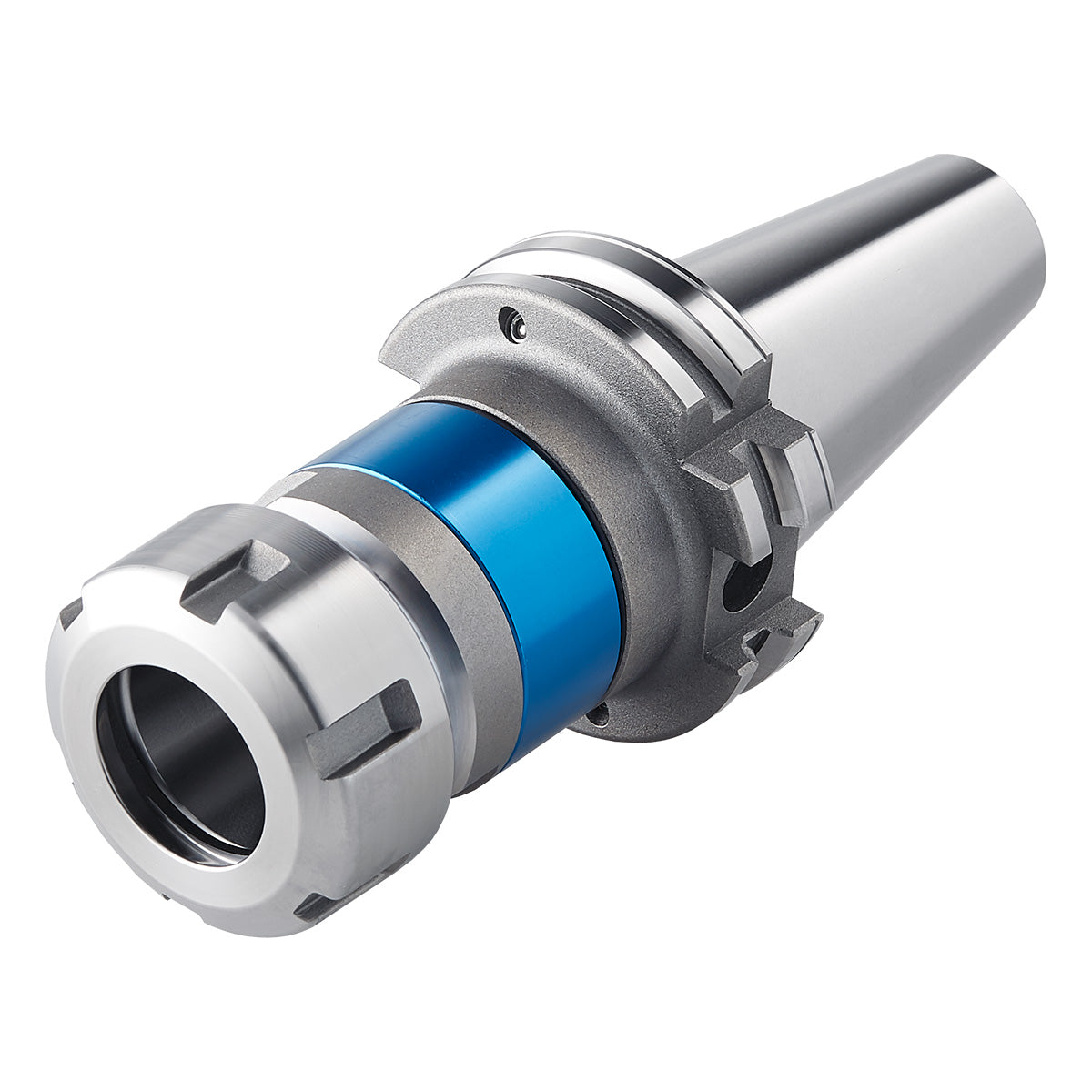

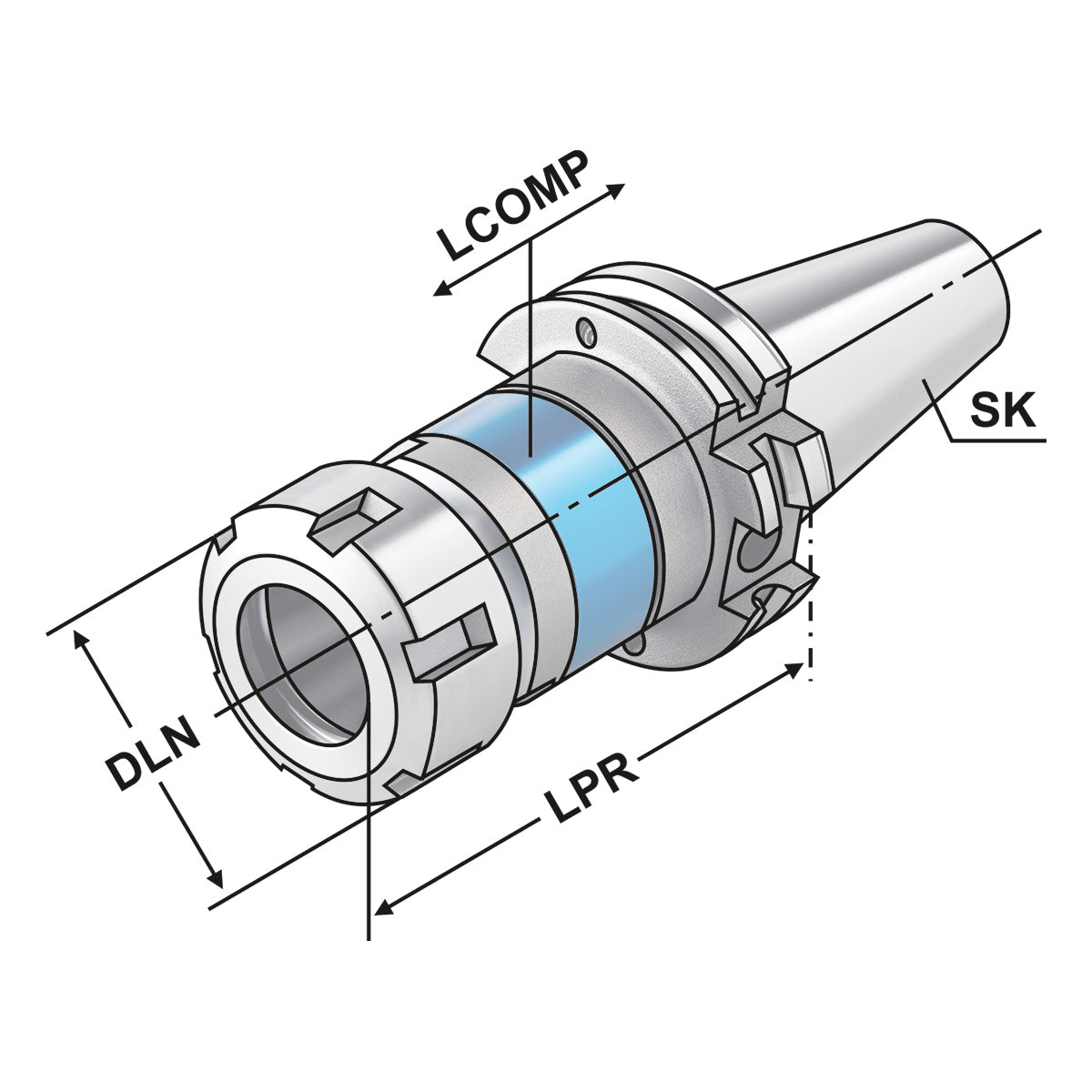

Tapping chucks for synchronisation SK 40 - M3-M20 - 84 | ER 25

Application:
For machining centres with synchronous spindle.

Note:

• Synchro tapping chucks compensate synchronisation errors.
• Minimal length compensation on compression and expansion balances very small pitch differences between synchro spindle and tap, which can cause high frictional forces on the thread flanks.
• A possible increase of axial force during the tapping process is reduced to a minimum.
• Suitable for internal coolant.
• Coolant pressure up to max. 100 bar.

Delivery:
With balanced clamping nut
