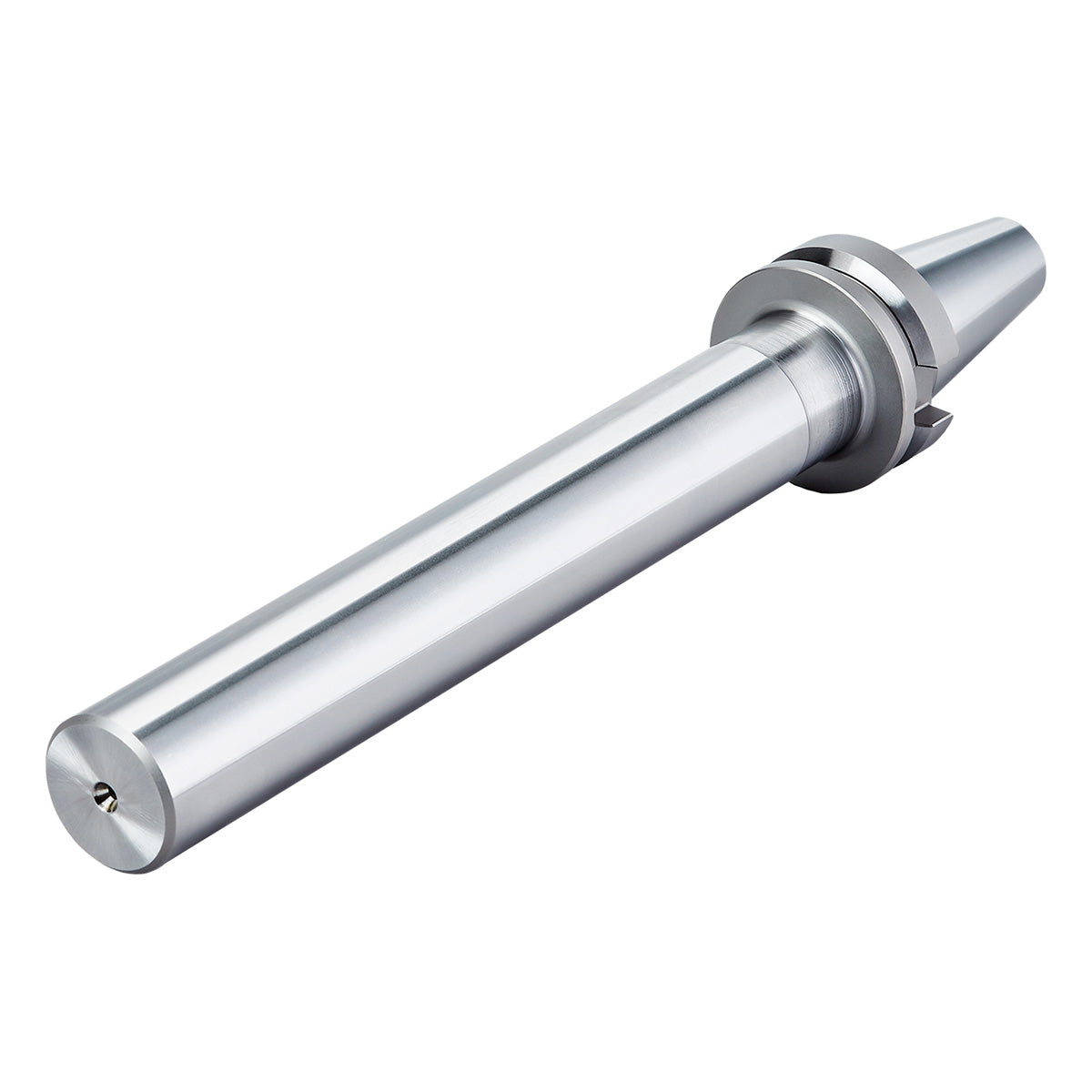

Test arbor BT 30 - 32 - 300

Test arbor BT 30 - 32 - 300

€480.00
€480.00
Tax included. Shipping calculated at checkout.

Product Details

Application:
For the inspection of machine tools according to ISO recommendation R230 or for testing the tool spindle.

Delivery with test certificate

  • All holders are made of forged steel
  • Specific, low warpage hardened
  • Surface hardened HRC 58~60
  • Hardening depth 0,8mm~0,9mm
  • Taper angle tolerance < AT 3 according to DIN 2080
  • Surface roughness Ra < 0,4 µm
  • Tensile strength in the core of min. 800 N/mm² after DIN
  • All functional surfaces fine machined

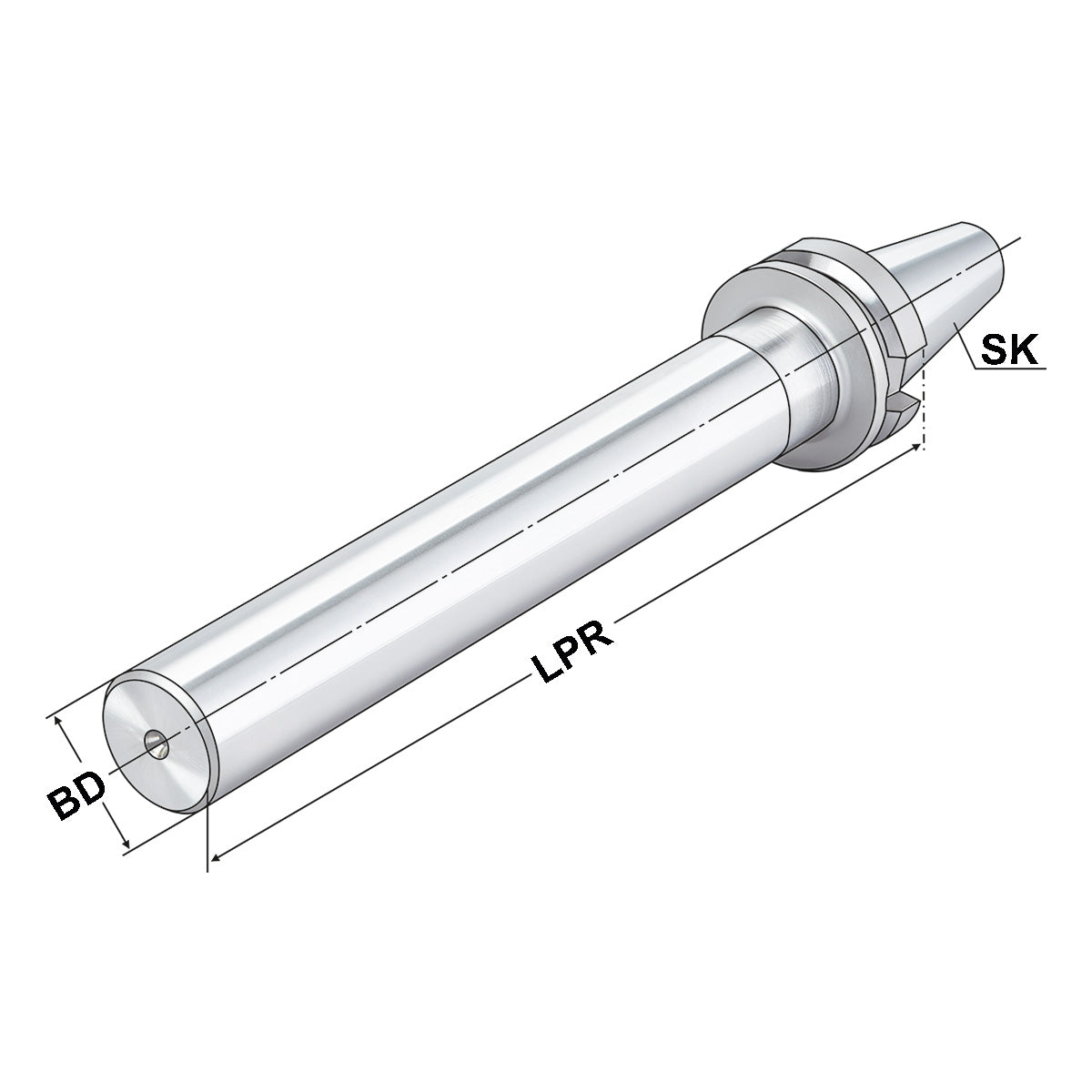

Specifications
PropertySpecification
BD32
ADINTMSDUAL CONTACT ~ISO 7388-2
ADINTWSKontrolldorn
Rundlauf< 3µm
LPR300
CNSCJ
SKBT-DC 30
Expected delivery date:
11 Sep Usually ready in 6-7 days.
