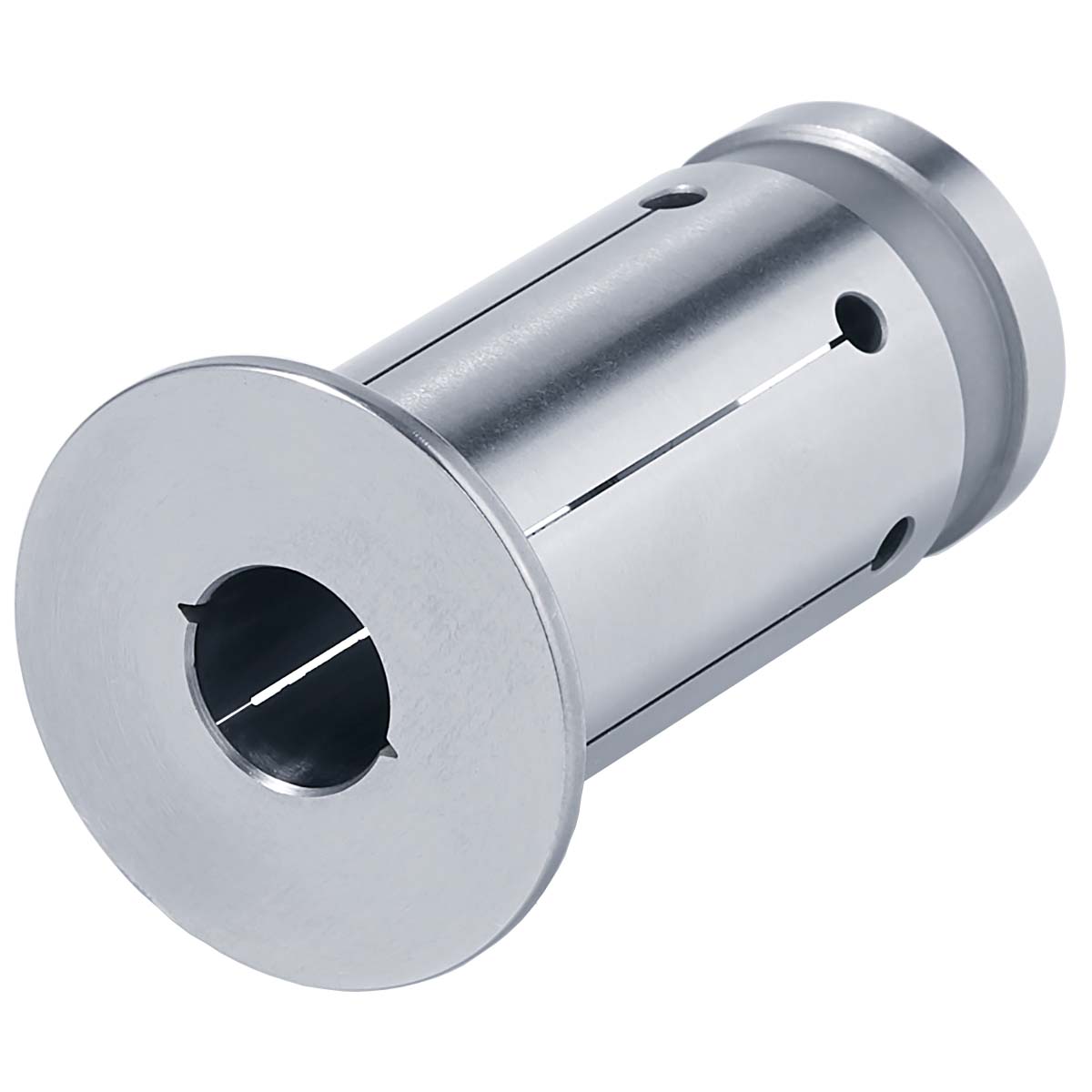

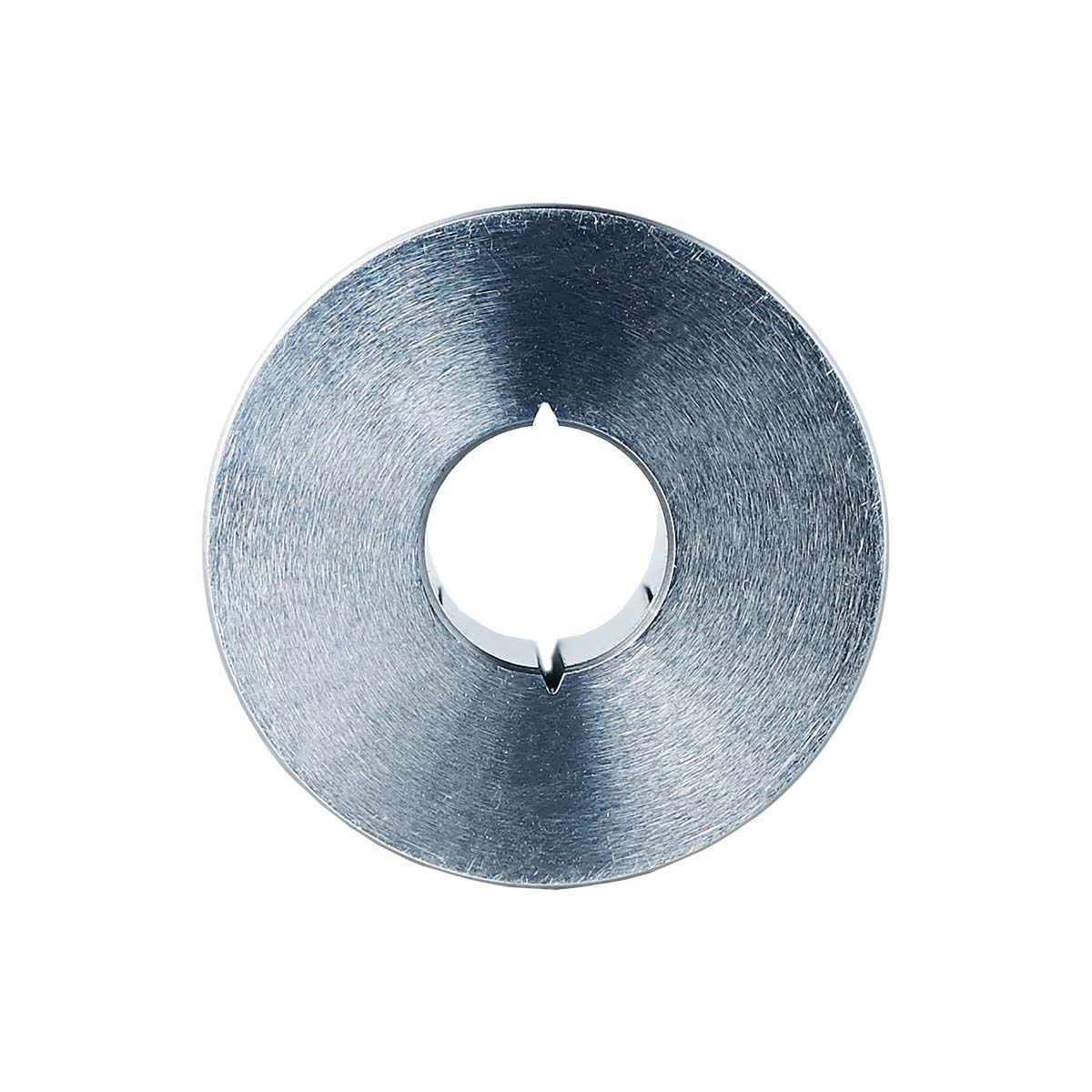

Reduction sleeves for hydraulic expansion chucks DCONMS=32 | DCONWS=20

Reduction sleeves for hydraulic expansion chucks DCONMS=32 | DCONWS=20

€102.00
€102.00
Tax included. Shipping calculated at checkout.

Product Details

Application:
For mounting straight-shank tools with internal coolant.

Note:
The chucking diameter is configured for a tool tolerance of h6.

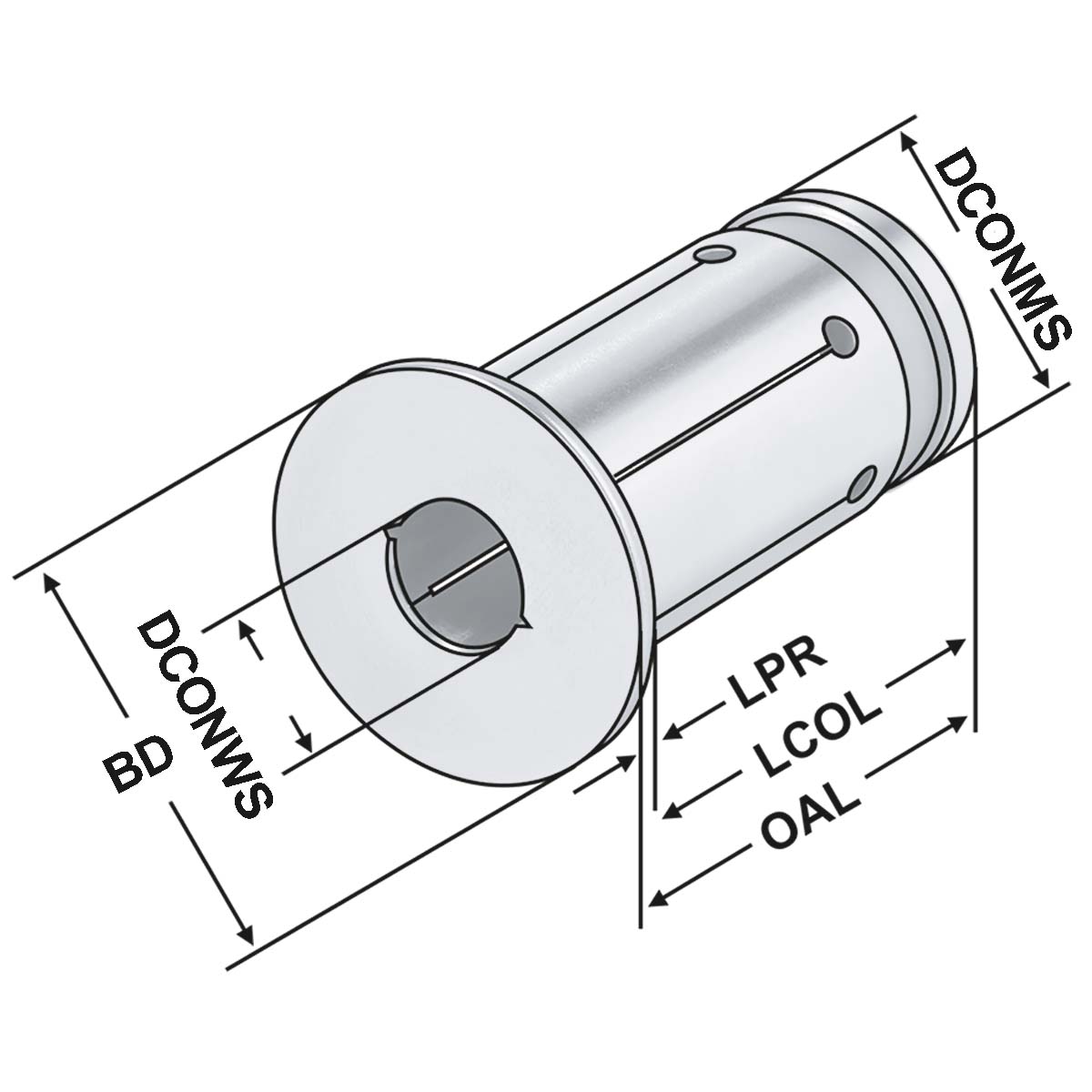

Specifications
PropertySpecification
CP80 bar
DCONWS20
OAL62,5
BD42
ADINTMSReduzierungen für Hydrodehnspannfutter
ADINTWSCylindrical clamping - metric
DCONMS32
LPR5
SEALJa
Rundlaufgenauigkeit< 5µm
CXSCKühlmittelnuten
LCOL57,5
Expected delivery date:
05 Nov Usually ready in 6-7 days.
