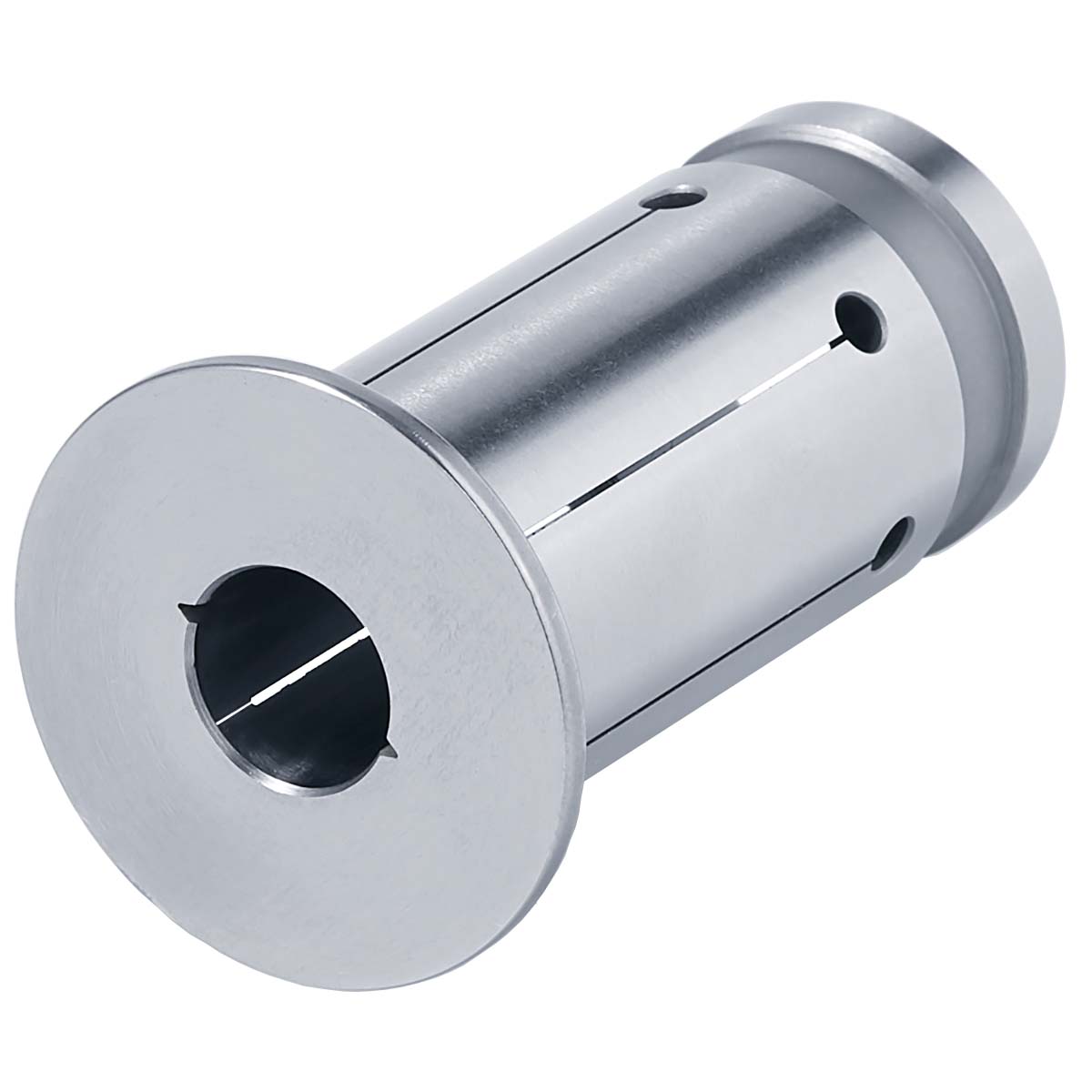

Reduction sleeves for hydraulic expansion chucks DCONMS=20 | DCONWS=6

Reduction sleeves for hydraulic expansion chucks DCONMS=20 | DCONWS=6

€74.00
€74.00
Tax included. Shipping calculated at checkout.

Product Details

Application:
For mounting straight-shank tools with internal coolant.

Note:
The chucking diameter is configured for a tool tolerance of h6.

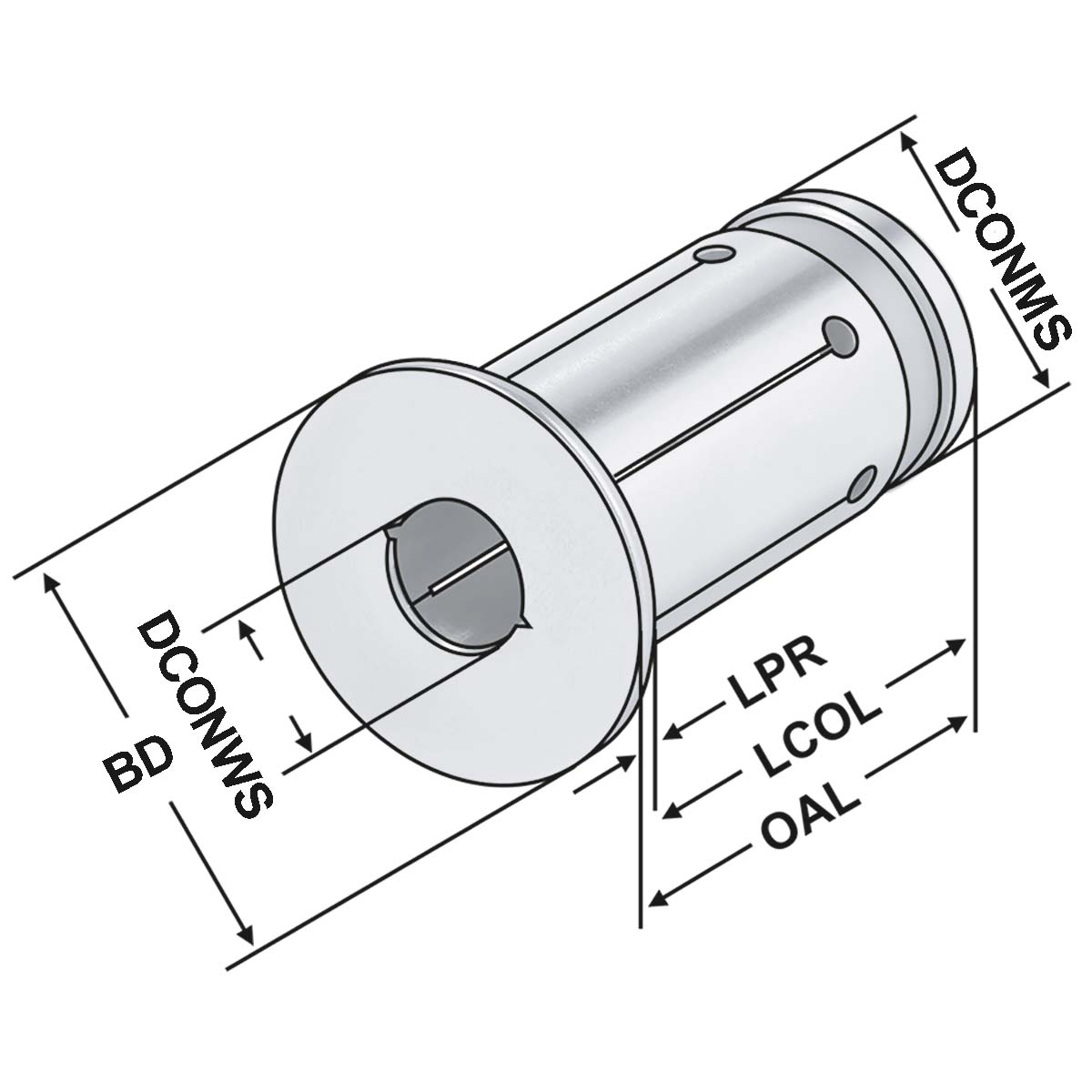

Specifications
PropertySpecification
CP80 bar
DCONWS6
OAL52,5
BD28
ADINTMSReduzierungen für Hydrodehnspannfutter
ADINTWSCylindrical clamping - metric
DCONMS20
LPR3,5
SEALJa
Rundlaufgenauigkeit< 5µm
CXSCKühlmittelnuten
LCOL49
Expected delivery date:
04 Sep Usually ready in 6-7 days.
