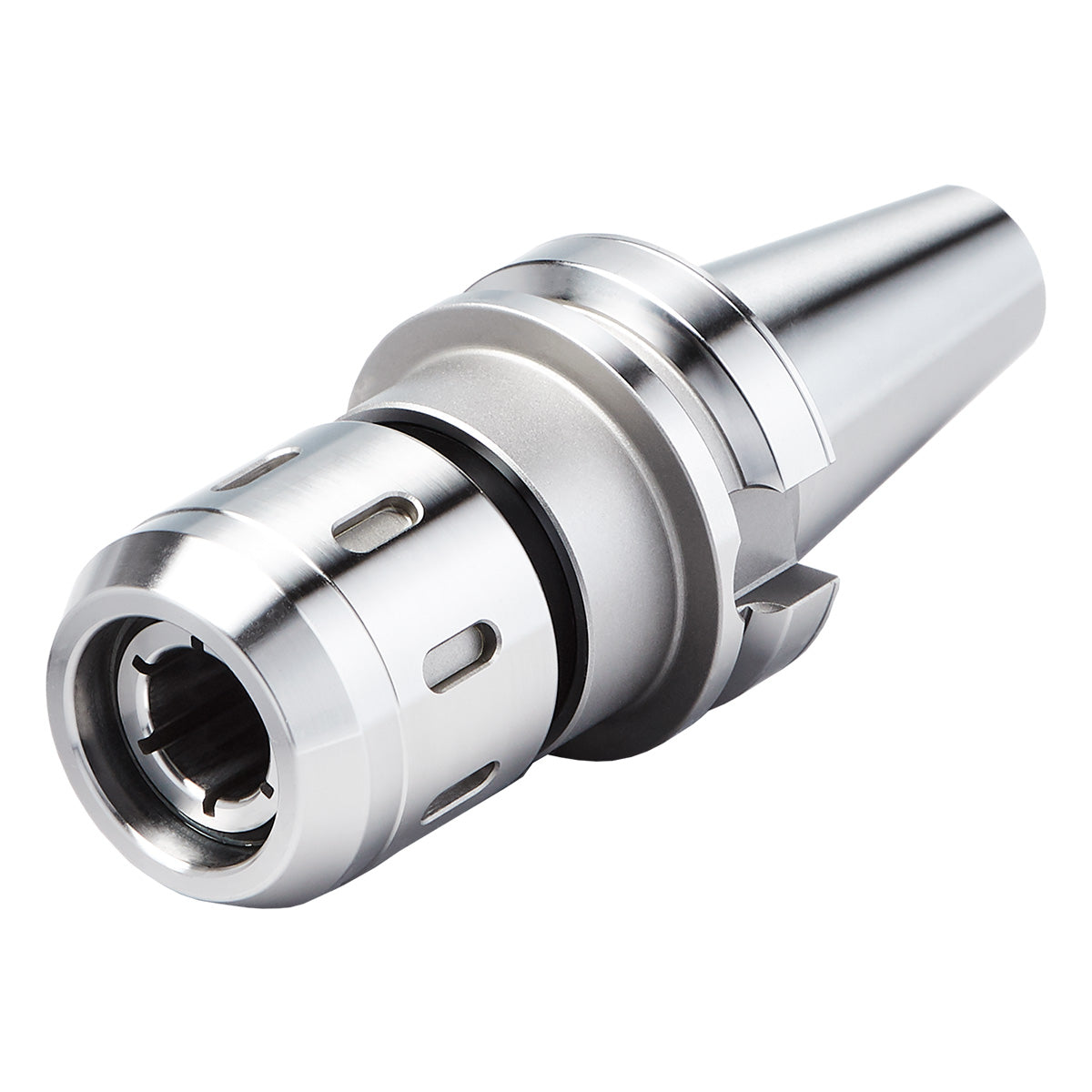

Milling Chuck BT 40 - 20 - 90

Milling Chuck BT 40 - 20 - 90

€319.00
€319.00
Tax included. Shipping calculated at checkout.

Product Details

Application:
For mounting straight-shank tools.

  • All holders are made of forged steel
  • Specific, low warpage hardened
  • Surface hardened HRC 58~60
  • Hardening depth 0,8mm~0,9mm
  • Taper angle tolerance < AT 3 according to DIN 2080
  • Surface roughness Ra < 0,4 µm
  • Tensile strength in the core of min. 800 N/mm² after DIN
  • All functional surfaces fine machined

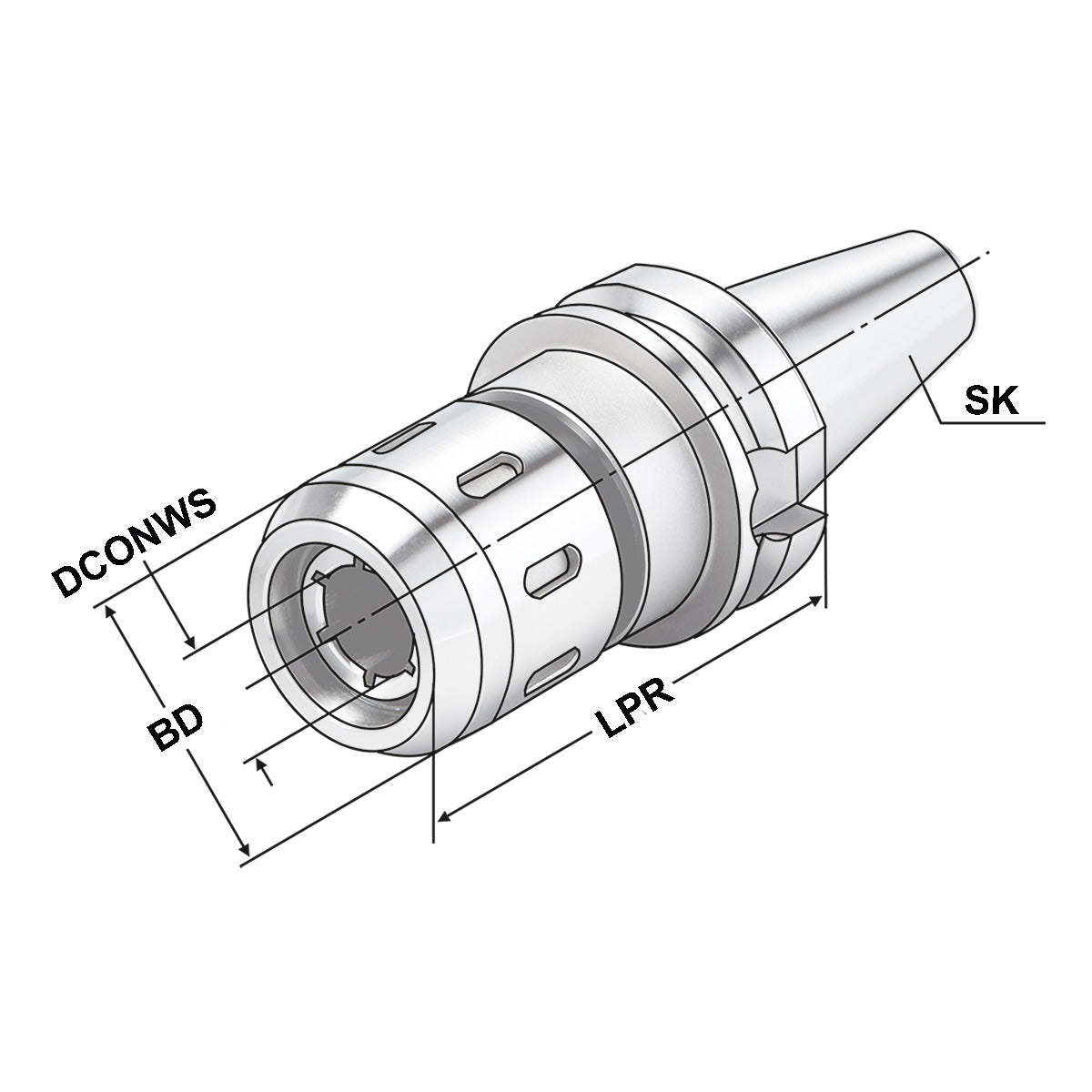

Specifications
PropertySpecification
DCONWS20
BD53
ADINTMSDUAL CONTACT ~ISO 7388-2
ADINTWSKraftspannfutter
Rundlauf< 3µm
LPR90
CNSCJD/JF (AD/B)
AuswuchtgüteG6,3 | 15.000 1/min
Expected delivery date:
11 Sep Usually ready in 6-7 days.
