Collets set ER20 | 428 ECC | 6-part kit DIN 6499 B (ISO 15488 B) in wooden socket

Collets set ER20 | 428 ECC | 6-part kit DIN 6499 B (ISO 15488 B) in wooden socket

€252.00
€252.00
Tax included. Shipping calculated at checkout.

Product Details

Application:
For mounting straight-shank tools in collet chucks DIN 6499.

Note:
Only nominal size d can be clamped, with cooling channels. In order to achieve an optimum sealing the tool must be clamped on the complete length of the ground drill of the collet. (applicable up to 21 bar)

Specifications
PropertySpecification
CP21 bar
Typ428E | ER 20

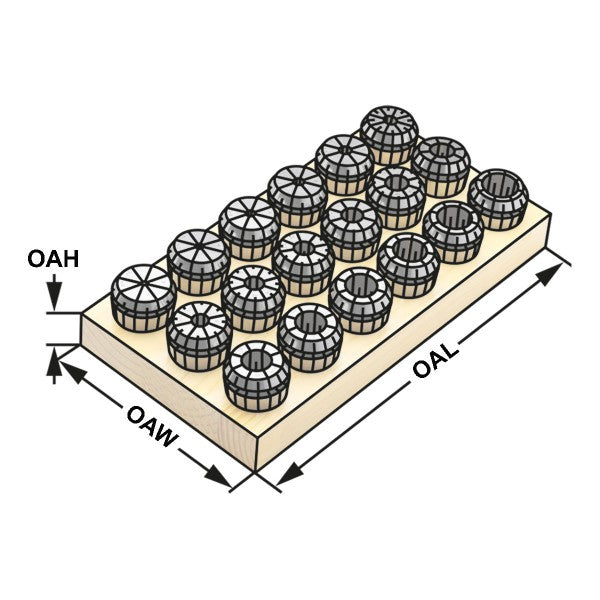

OAH25
OAL165
ADINTMSER collet ISO10897 (DIN6388) - ER20
ADINTWSCylindrical clamping - metric
OAW110
SEALJa
Rundlaufgenauigkeit< 15µm
CXSCKühlmittelnuten
Expected delivery date:
10 Sep Usually ready in 6-7 days.
