Collet sets 428 ECC | ER20 | 6 parts in wooden box DIN 6499 (ISO 15488)

Collet sets 428 ECC | ER20 | 6 parts in wooden box DIN 6499 (ISO 15488)

€321.00
€321.00
Tax included. Shipping calculated at checkout.

Product Details

Application:
For mounting straight-shank tools in collet chucks DIN 6499.

Note:
Only nominal size d can be clamped, with cooling channels. In order to achieve an optimum sealing the tool must be clamped on the complete length of the ground drill of the collet. (applicable up to 21 bar)

Specifications
PropertySpecification
CP21 bar
Typ428E | ER 20

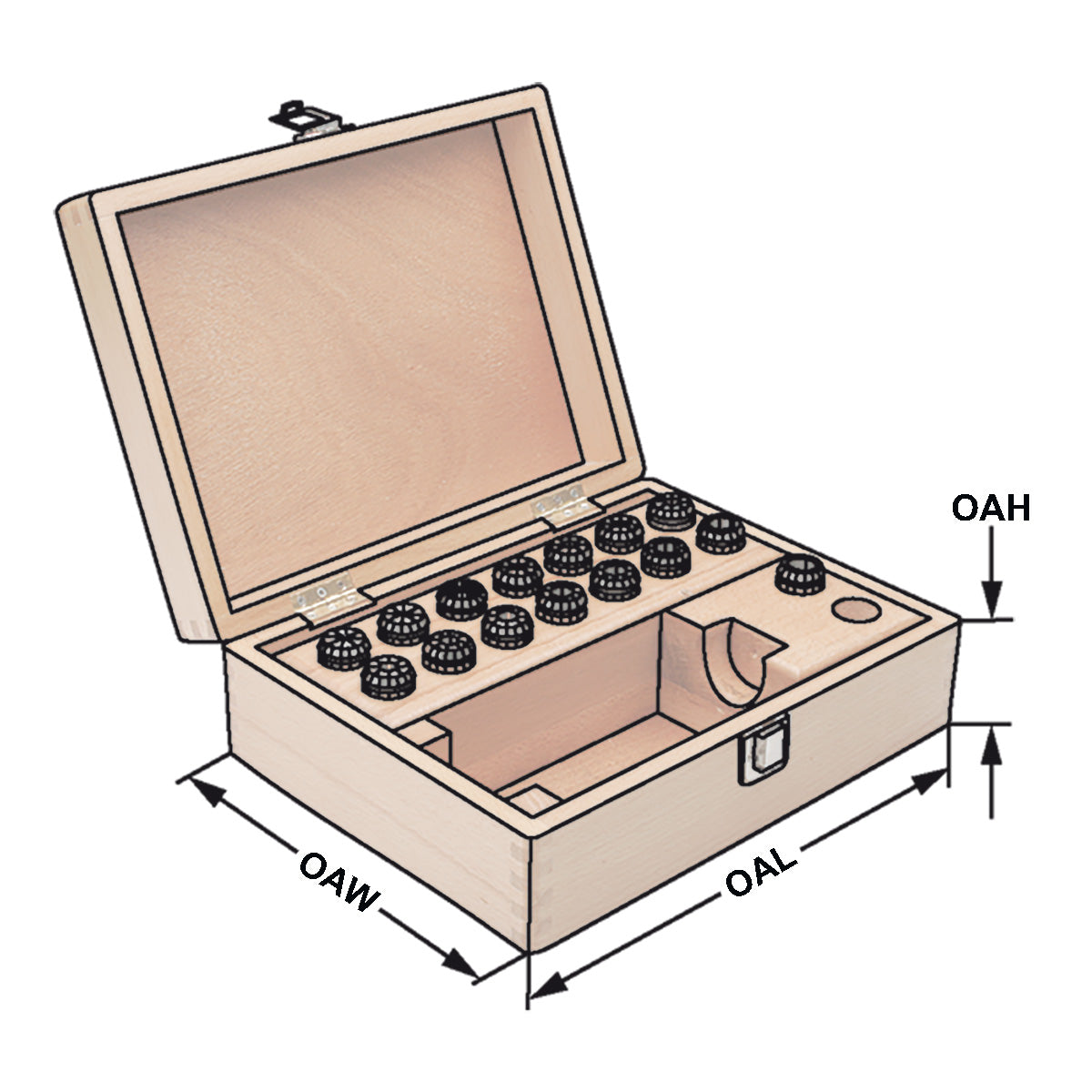

OAH70
OAL360
ADINTMSER collet ISO10897 (DIN6388) - ER20
ADINTWSCylindrical clamping - metric
OAW235
SEALJa
Rundlaufgenauigkeit< 15µm
CXSCKühlmittelnuten
Expected delivery date:
14 Sep Usually ready in 6-7 days.
