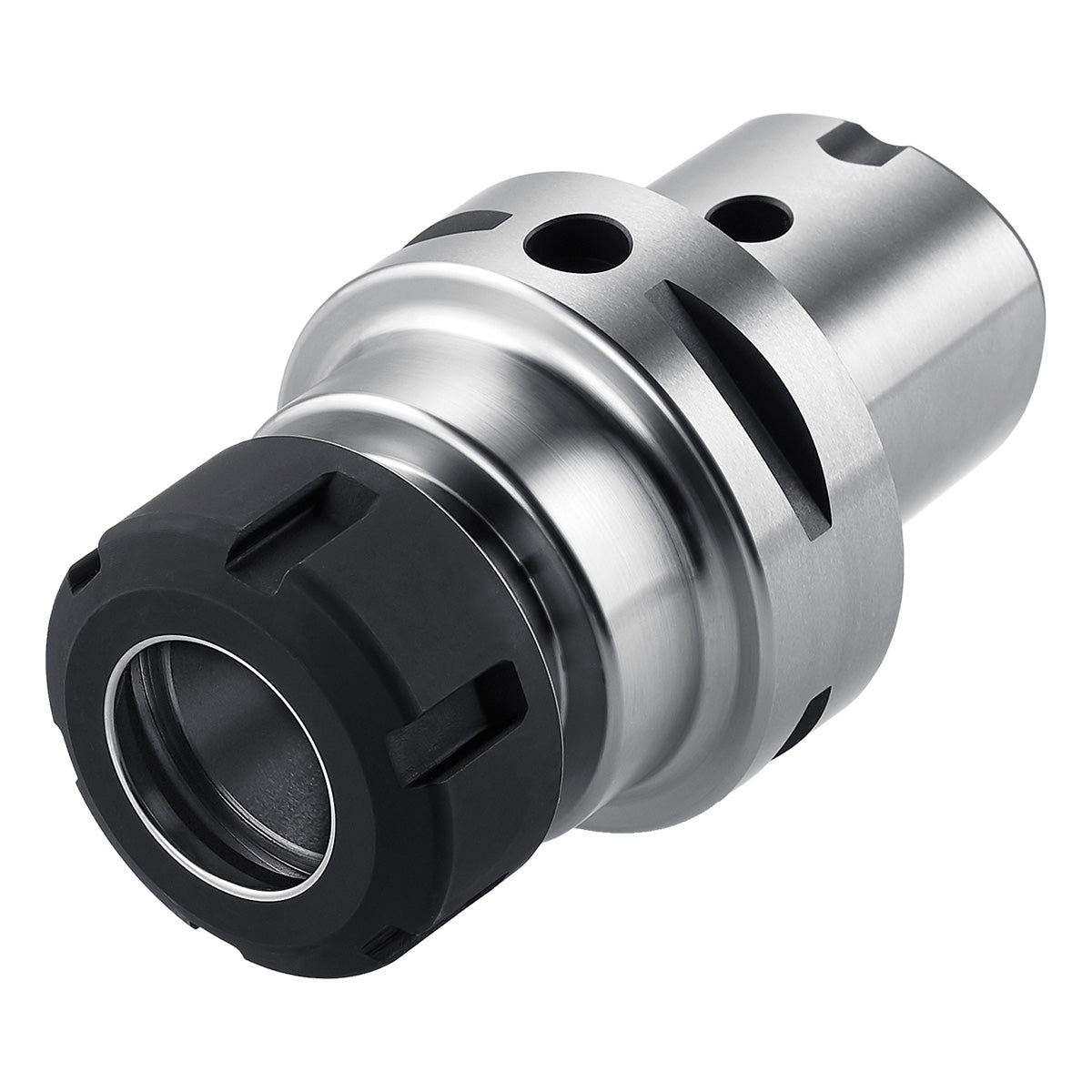

ER-Collet chuck PSK 40 - 1/10 - 70 | ER 16

ER-Collet chuck PSK 40 - 1/10 - 70 | ER 16

€260.00
€260.00
Tax included. Shipping calculated at checkout.

Product Details

Application:
For mounting straight-shank tools in collets.

With balanced clamping nut
  • All holders are made of forged steel
  • Specific, low warpage hardened
  • Surface hardened HRC 58~60
  • Hardening depth 0,8mm~0,9mm
  • Taper angle tolerance < AT 3 according to DIN 2080
  • Surface roughness Ra < 0,4 µm
  • Tensile strength in the core of min. 800 N/mm² after DIN
  • All functional surfaces fine machined





Specifications
PropertySpecification
DCONWS1 - 10
Typ426E | ER 16
ADINTMSCCS - Polygonschaftkegel
ADINTWSISO 15488 (DIN 6499) ER
Rundlauf< 3µm

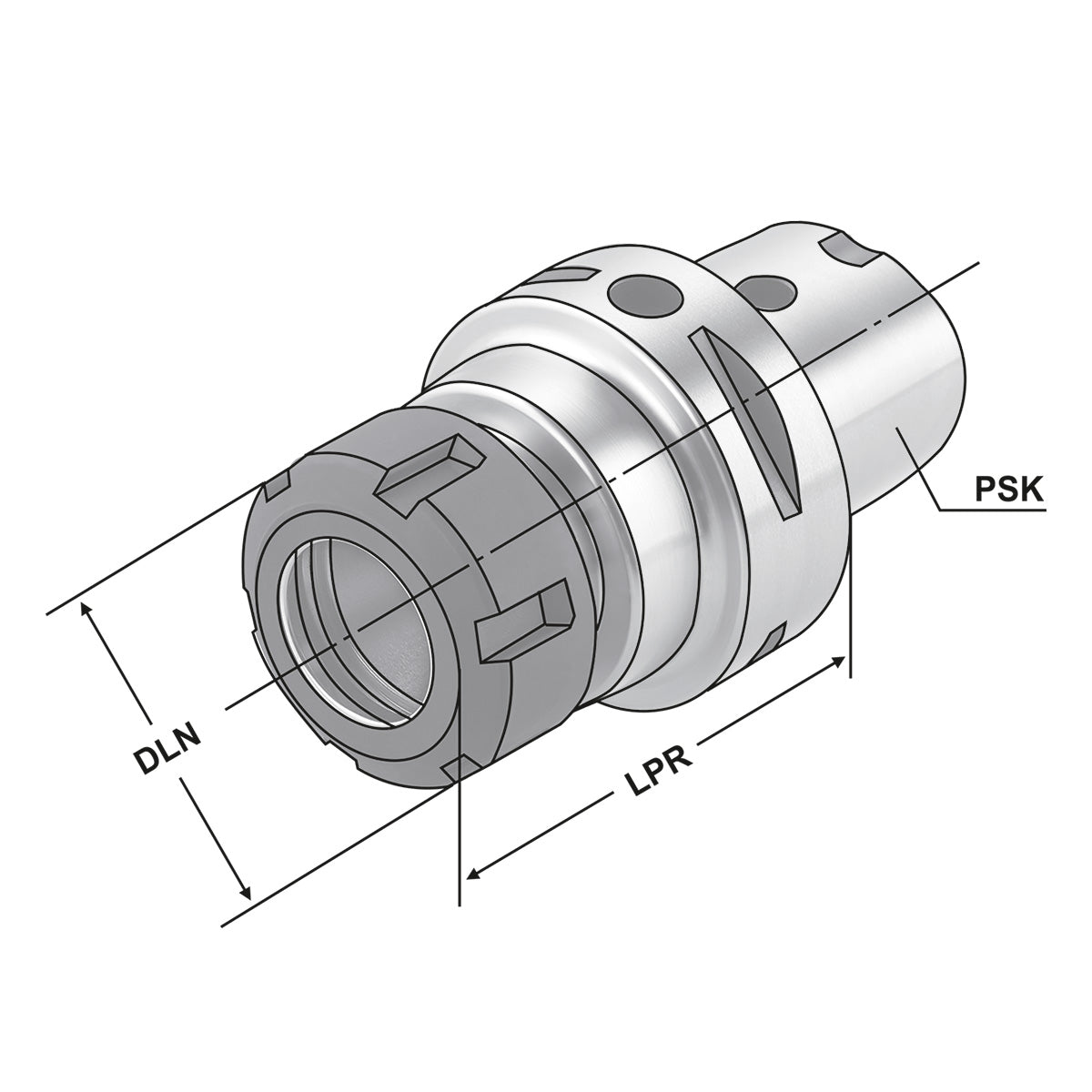

DLN32
LPR70
AuswuchtgüteG2,5 | 25.000 1/min
THID-
PSKC4 | PSK 40
Expected delivery date:
13 Aug Usually ready in 6-7 days.
