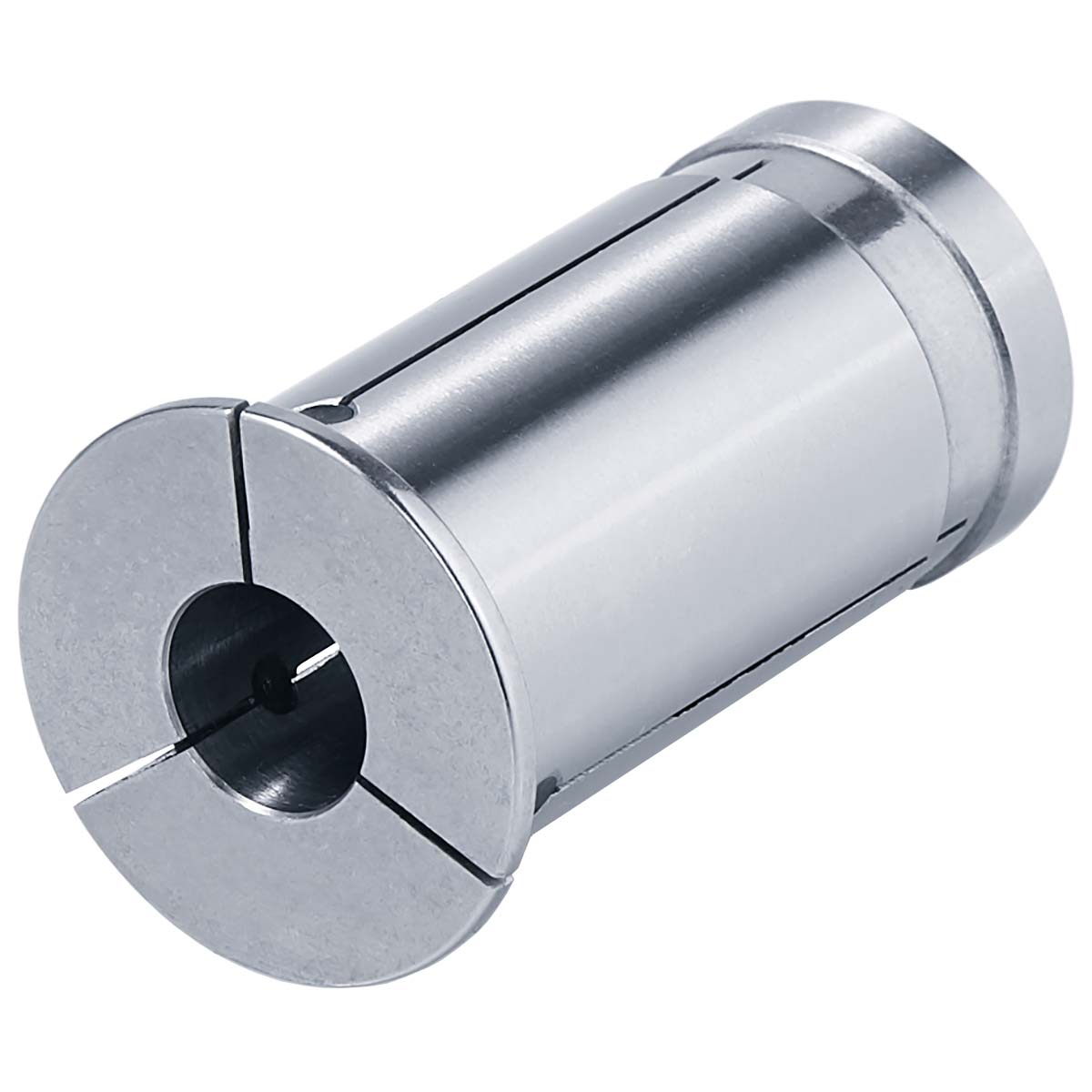

Reduction sleeves for Milling Chuck DCONMS=25 | DCONWS=4

Reduction sleeves for Milling Chuck DCONMS=25 | DCONWS=4

Regular price €152.00
Sale price €152.00
Shipping calculated at checkout.

Product Details

Application:
For mounting straight-shank tools with internal coolant.


Note:
The chucking diameter is configured for a tool tolerance of h6.

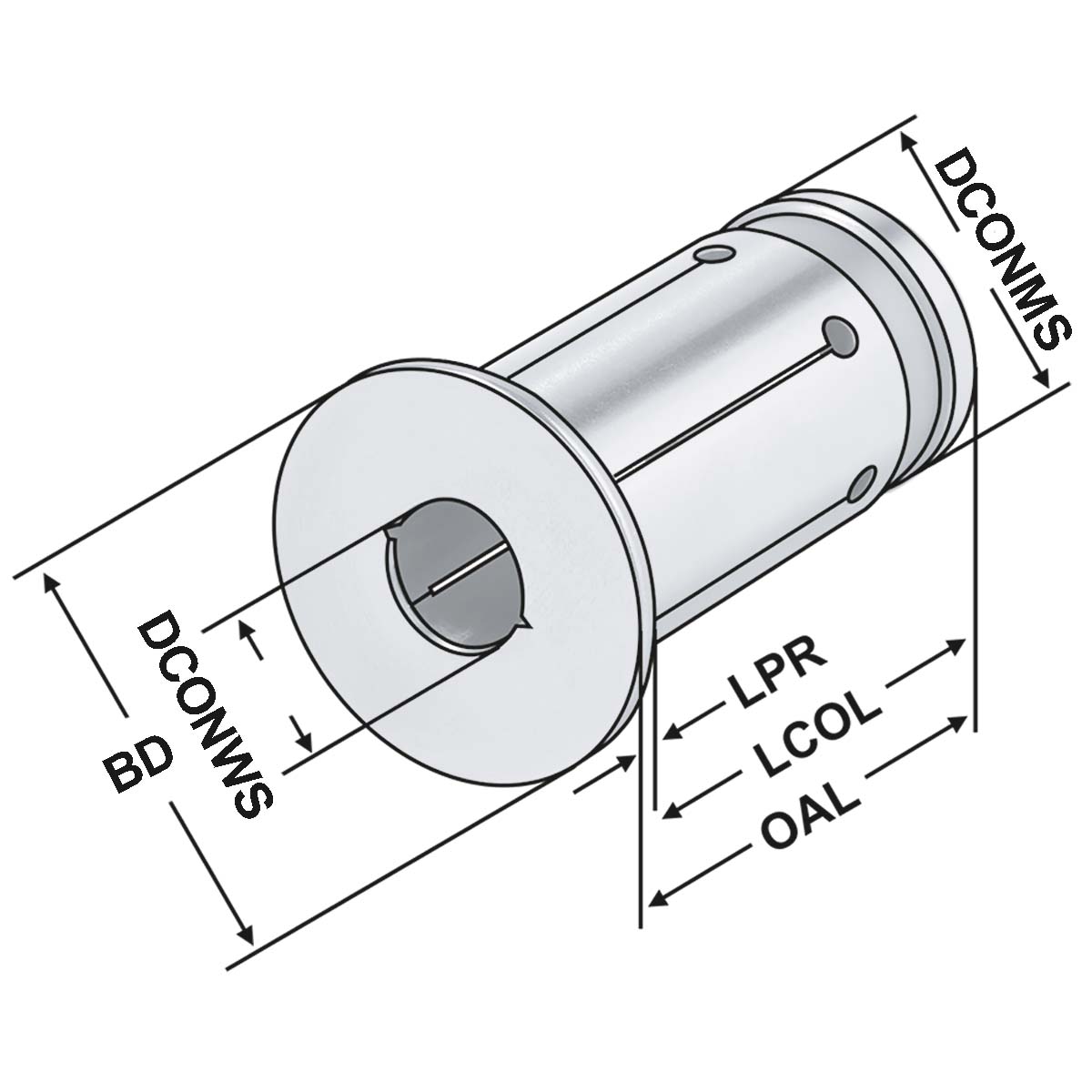

Specifications
PropertySpecification
CP80 bar
DCONWS4
OAL56,5
BD34
ADINTMSReduzierungen für Kraftspannfutter
ADINTWSCylindrical clamping - metric
DCONMS25
LPR2
SEALJa
Rundlaufgenauigkeit< 5µm
LCOL54,5
Expected delivery date:
30 Oct Usually ready in 6-7 days.
