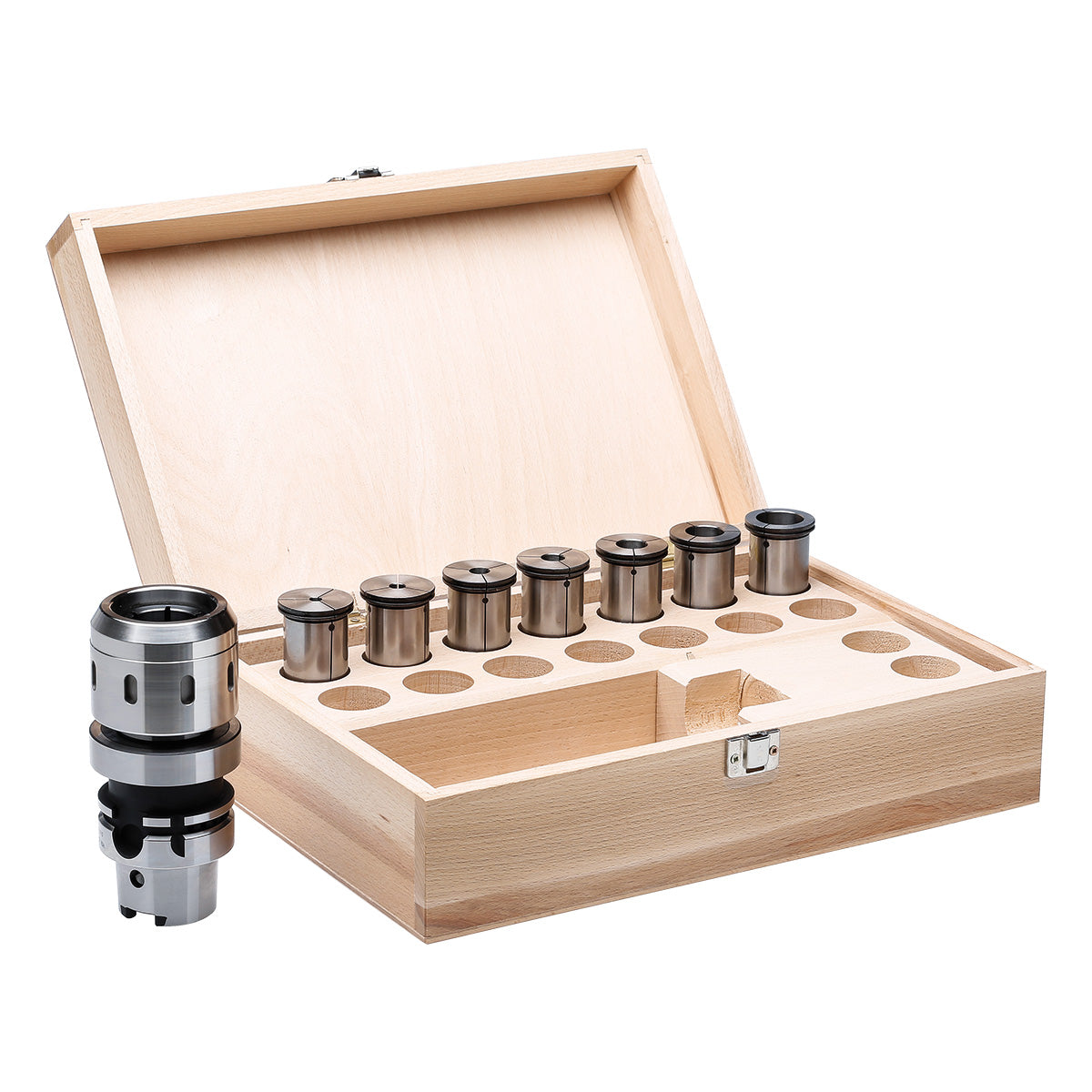

  • High Performance Milling Chuck HSK-A 63-32-110 DIN 69893 Form A HKS-system in wooden box
1 1

High Performance Milling Chuck HSK-A 63-32-110 DIN 69893 Form A HKS-system in wooden box

High Performance Milling Chuck HSK-A 63-32-110 DIN 69893 Form A HKS-system in wooden box

€648.00
€648.00
Tax included. Shipping calculated at checkout.

Product Details

Application:
For mounting straight-shank tools.

  • All holders are made of forged steel
  • Specific, low warpage hardened
  • Surface hardened HRC 58~60
  • Hardening depth 0,8mm~0,9mm
  • Surface roughness Ra < 0,4 µm
  • Tensile strength in the core of min. 800 N/mm² after DIN
  • All functional surfaces fine machined
Specifications
PropertySpecification
DCONWS32
TypHKS 32
BD68
ADINTMSISO 12164 (HSK-A)
ADINTWSKraftspannfutter
LPR110
Spannbereich3 - 32
AuswuchtgüteG6,3 | 15.000 1/min
DCPJa
DCPSD10/H4,5
HSKHSK-A 63
max. Rundlaufabweichung< 3µm
Expected delivery date:
15 Nov Usually ready in 6-7 days.
