ER-Collet with seal for IC ER20 | 428EH | < 15µm | Ø 13

ER-Collet with seal for IC ER20 | 428EH | < 15µm | Ø 13

€44.00
€44.00
Tax included. Shipping calculated at checkout.

Product Details

Application:

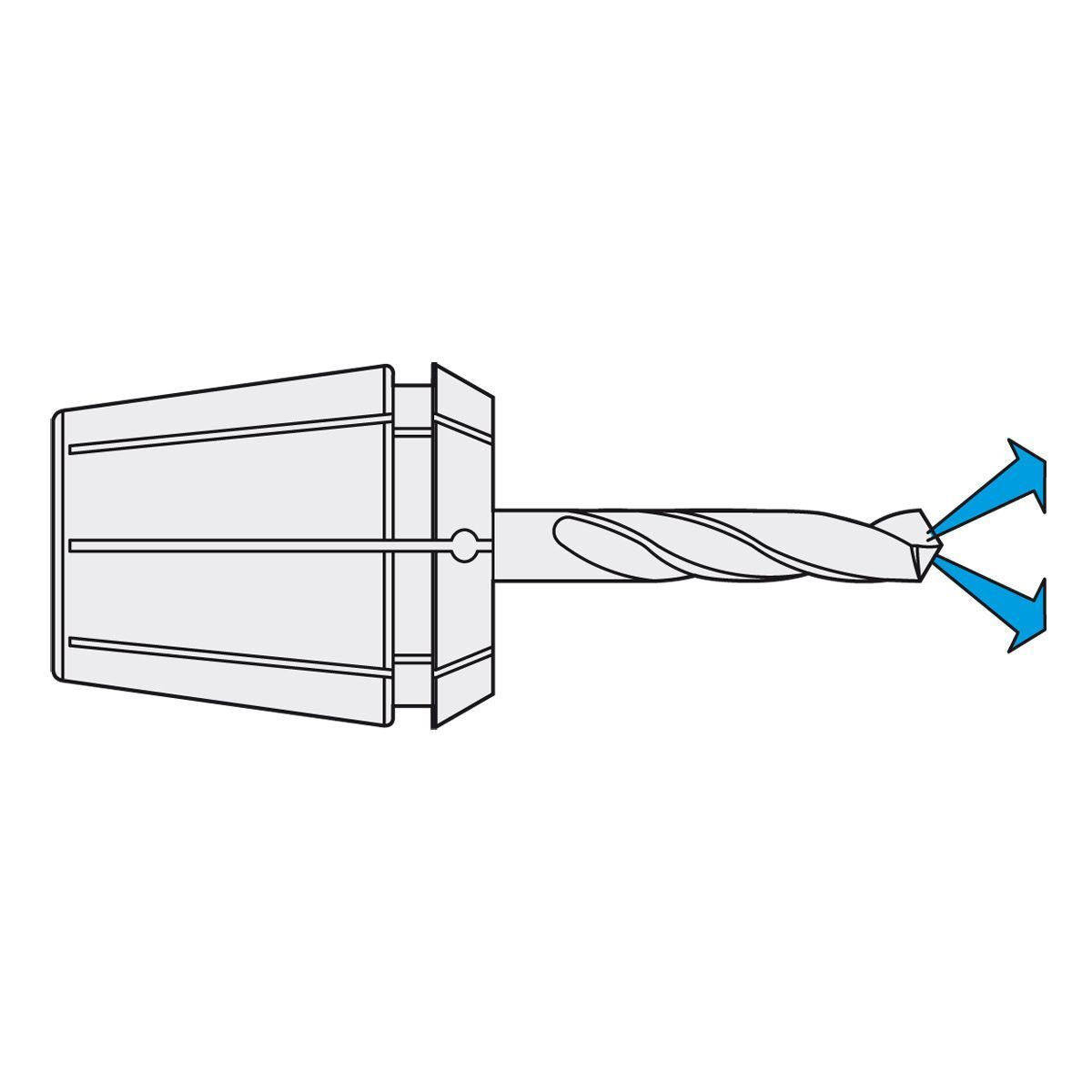

Collets sealed for high pressure cooling 120 bar with IC DIN 6499 B (ISO 15488 B) ER-system

Note:
Only nominal size d can be clamped (applicable up to 120 bar). In order to achieve an optimum sealing the tool must be clamped on the complete length of the ground drill of the collet.

Specifications

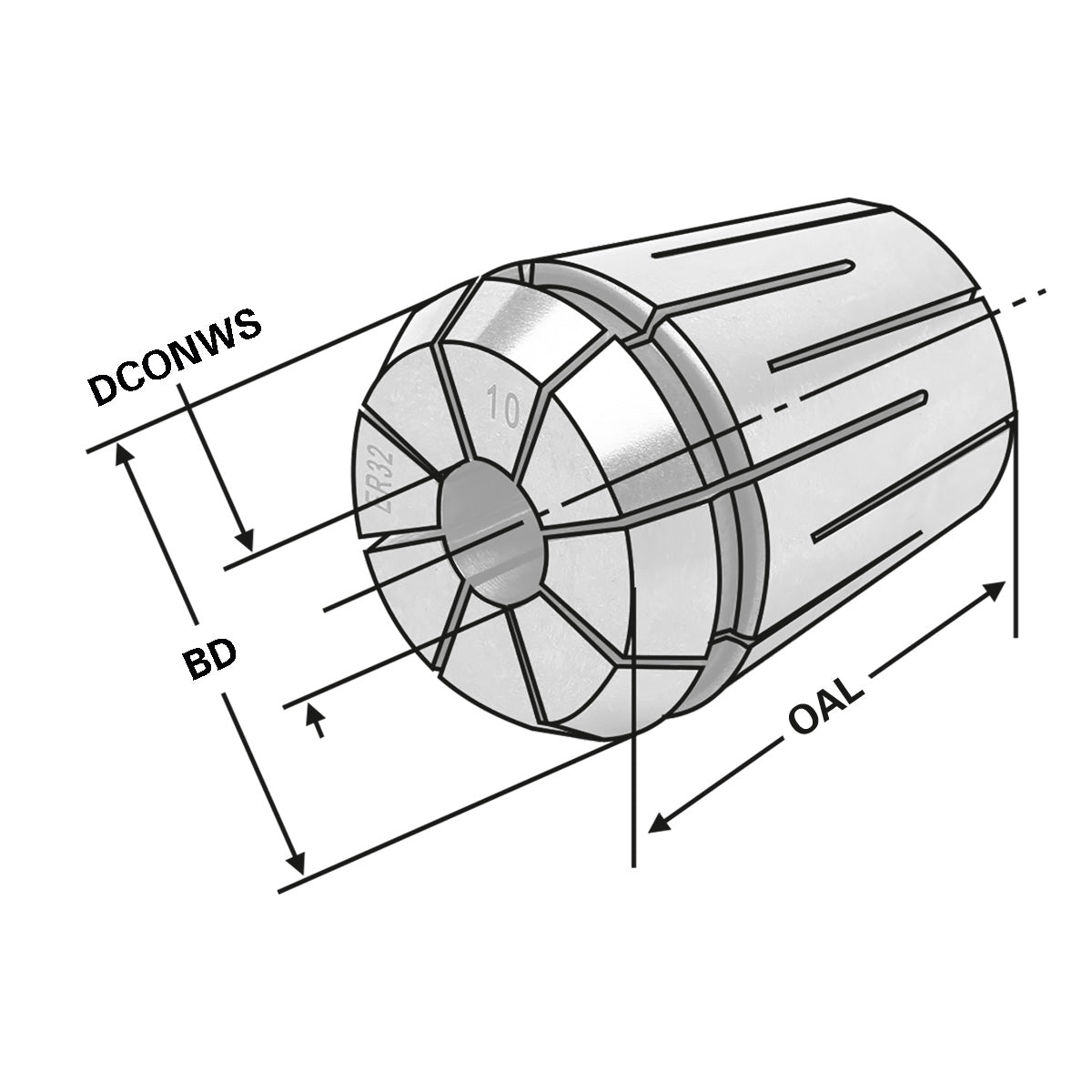

PropertySpecification
CP120 bar
DCONWS13
Typ428E | ER 20
OAL31,5
BD21
ADINTMSER collet ISO10897 (DIN6388) - ER20
ADINTWSCylindrical clamping - metric
SEALJa
Rundlaufgenauigkeit< 15µm
Expected delivery date:
13 Sep Usually ready in 6-7 days.
