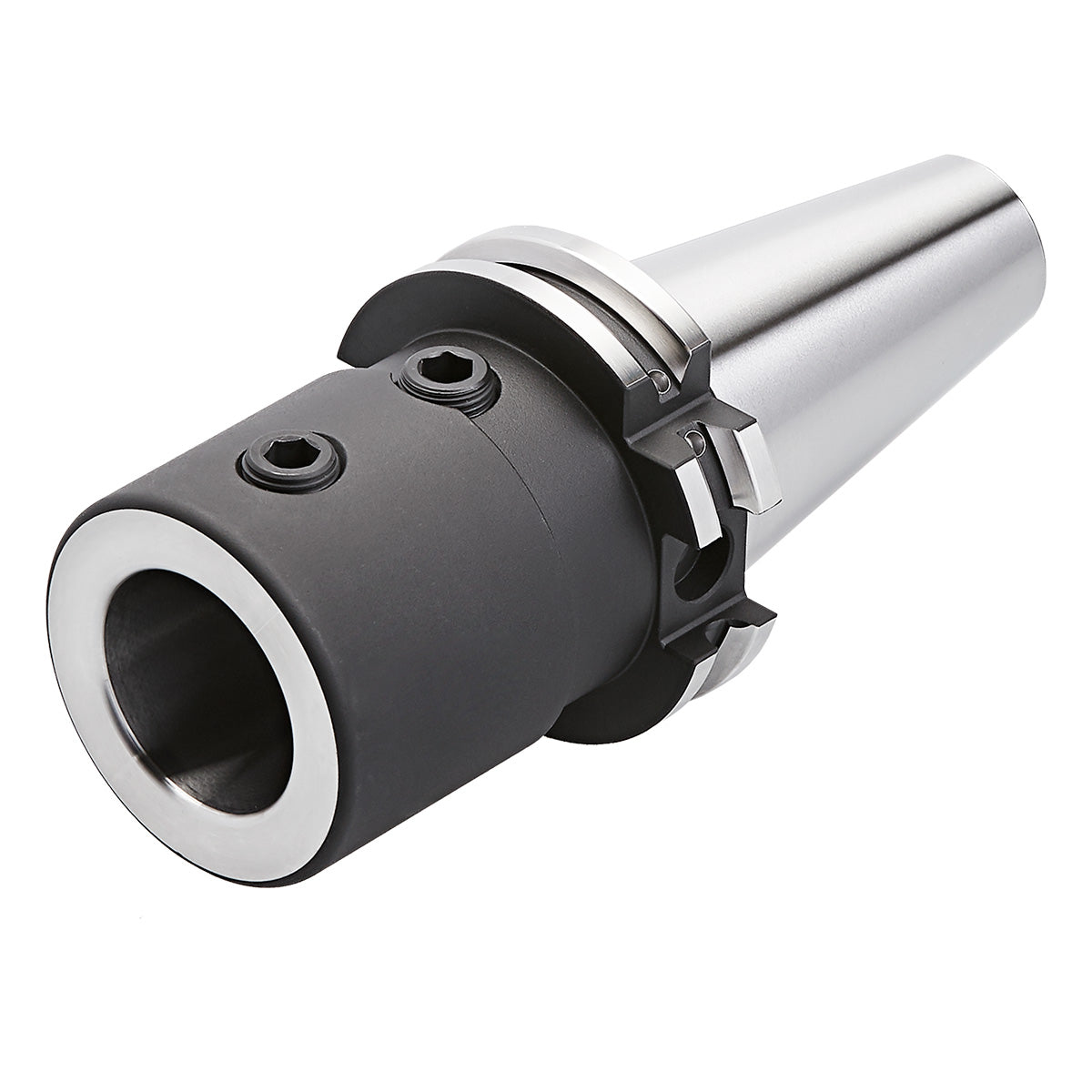

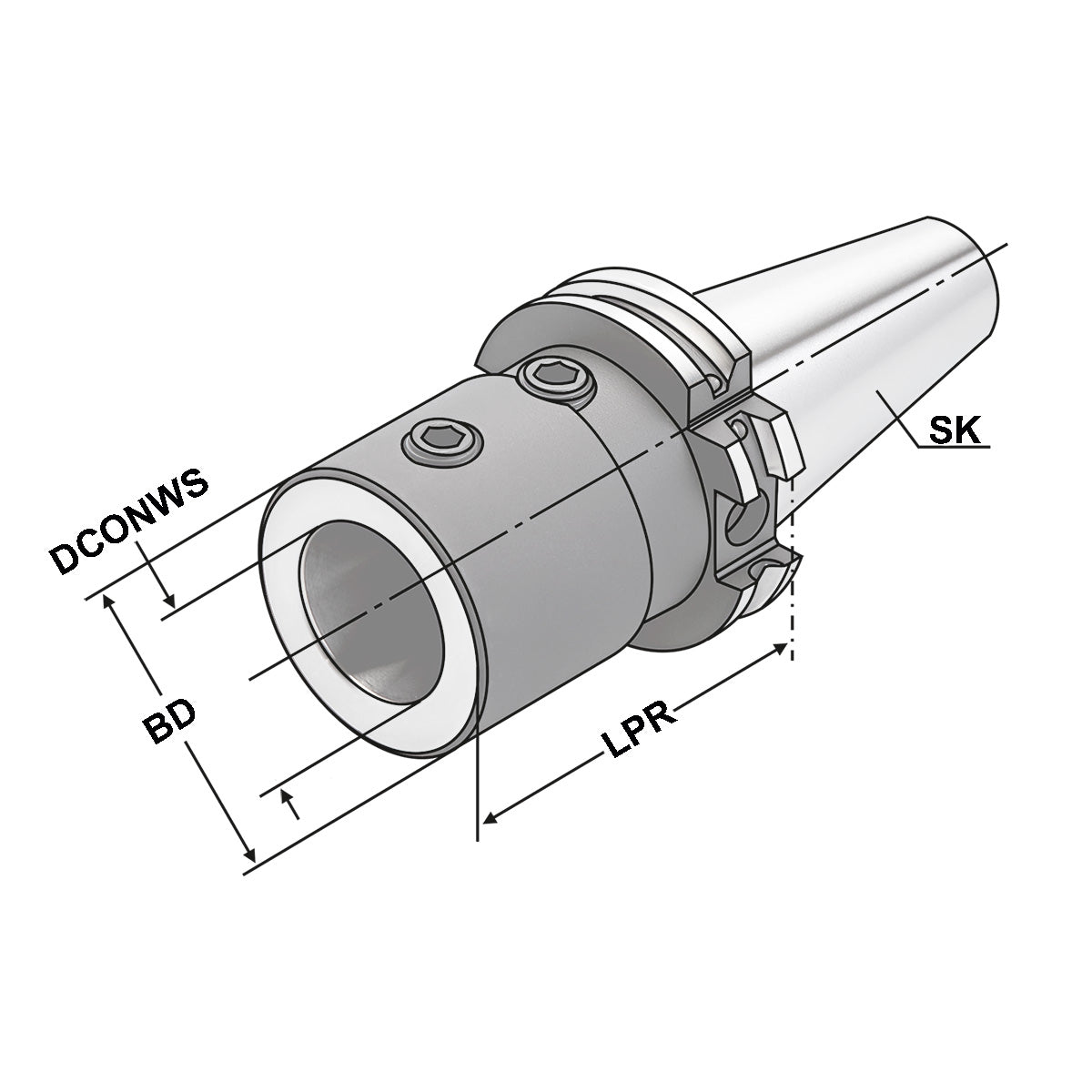

Boring holder for drills with indexable inserts | SK 50 - 20 - 70

Application:
For mounting solid drills with cylindrical shank according to DIN 6595.

Note:
Contact surface precision grinded

Delivery:
With clamping screws

• All holders are made of forged steel
• Specific, low warpage hardened
• Surface hardened HRC 58~60
• Hardening depth 0,8mm~0,9mm
• Taper angle tolerance < AT 3 according to DIN 2080
• Surface roughness Ra < 0,4 µm
• Tensile strength in the core of min. 800 N/mm² after DIN
• All functional surfaces fine machined
