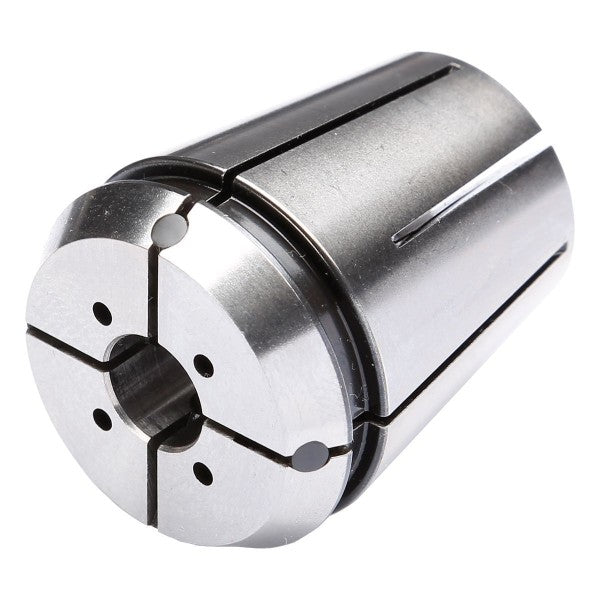

ER-Collet with cooling channel holes ER25 | 430EC | < 15µm | Ø 10

ER-Collet with cooling channel holes ER25 | 430EC | < 15µm | Ø 10

€42.00
€42.00
Tax included. Shipping calculated at checkout.

Product Details

Application:
For mounting straight-shank tools in collet chucks DIN 6499.

Note:

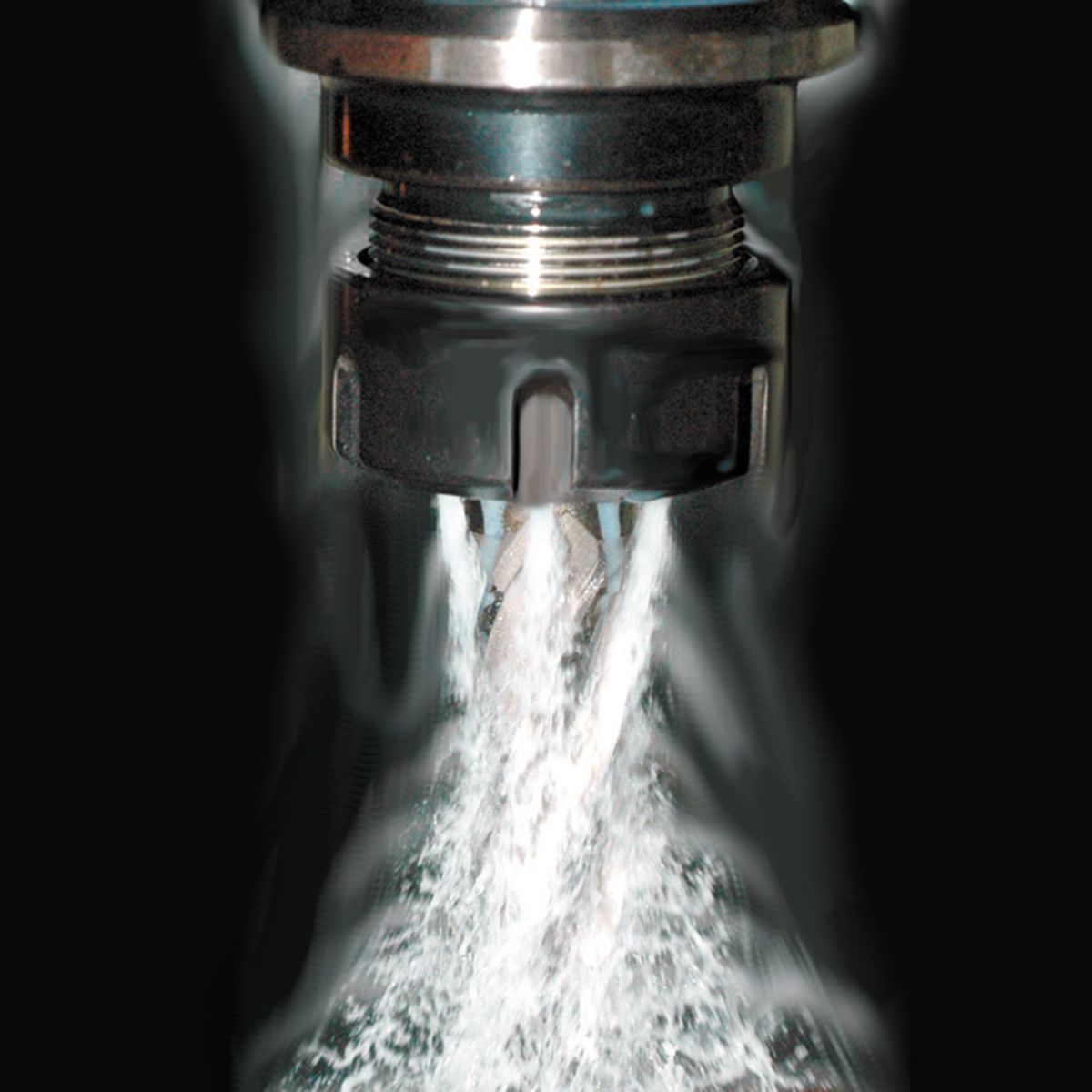

Only nominal size d can be clamped, with cooling channels. In order to achieve an optimum sealing the tool must be clamped on the complete length of the ground drill of the collet. (applicable up to 21 bar)

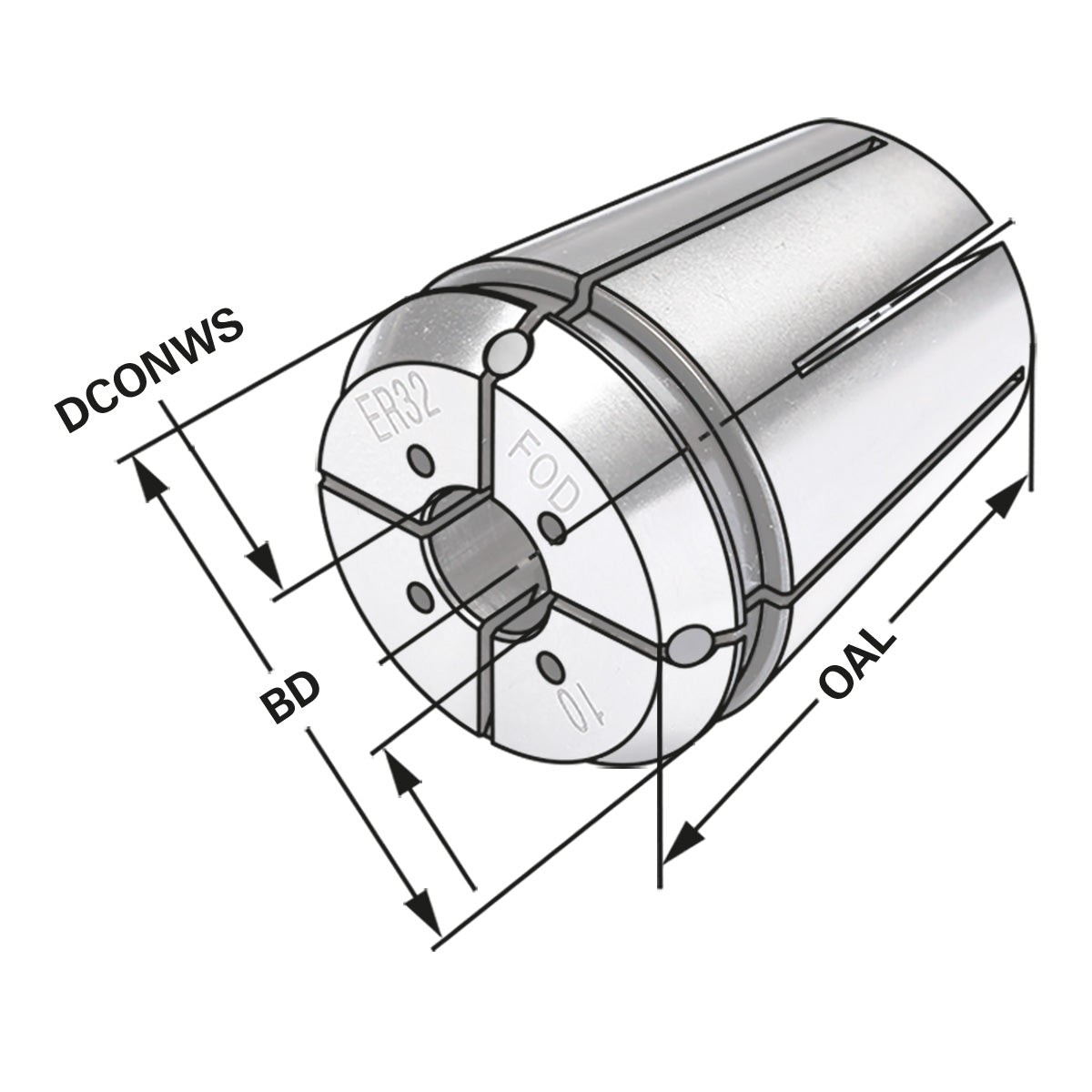

Specifications
PropertySpecification
CP21 bar
DCONWS10
Typ430E | ER 25
OAL34
BD26
ADINTMSER collet ISO10897 (DIN6388) - ER25
ADINTWSCylindrical clamping - metric
SEALNein
Rundlaufgenauigkeit< 15µm
