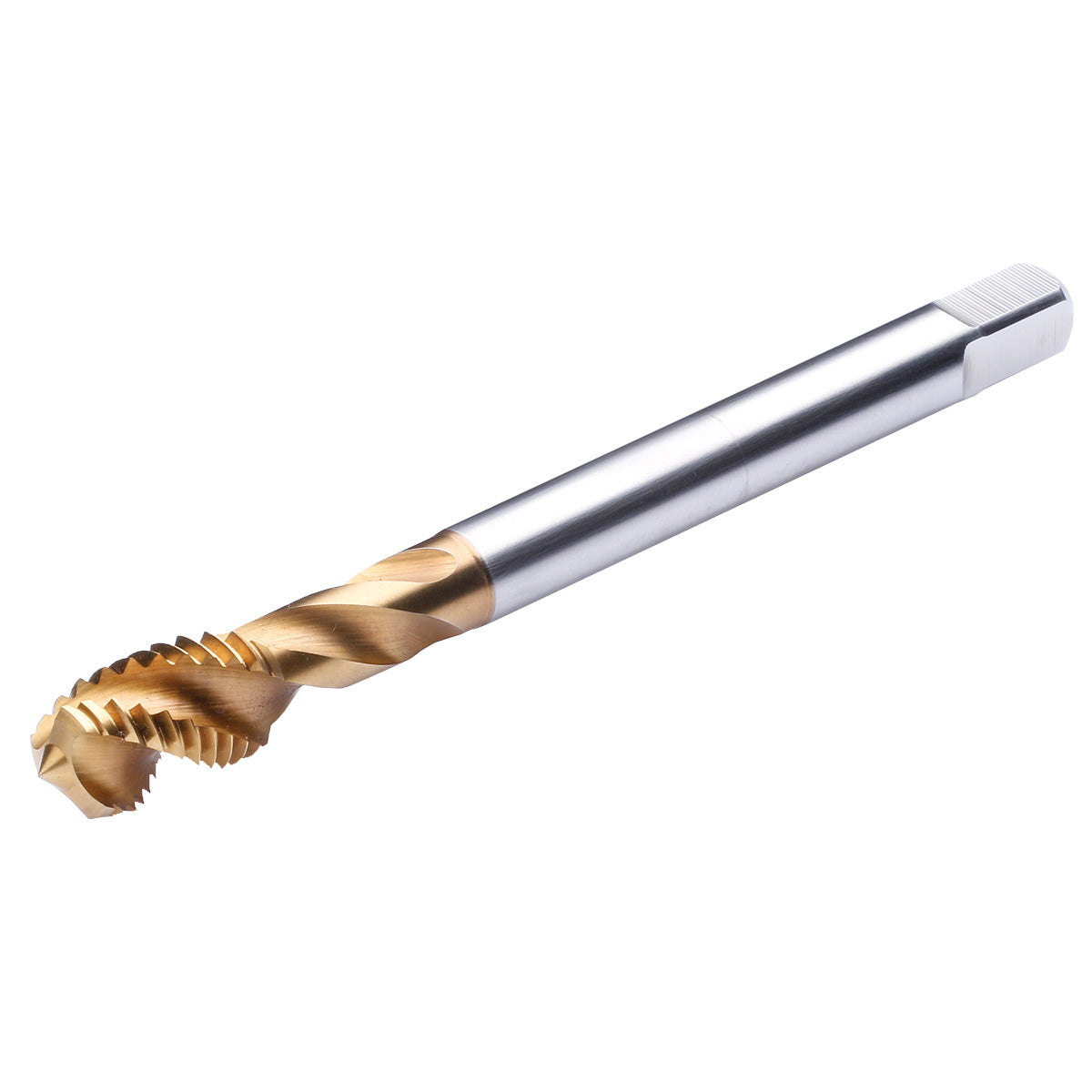

HSS-E spiral flute taps M10 10x8,0 P=1,5 DIN 371
HSS-E spiral flute taps M10 10x8,0 P=1,5 DIN 371
Application:
1. Thread configuration with a special design, prevents overfeeding, thin thread and pitch diameter oversize.
2. Flute geometry with special design, better chip evacuation, prevents chip clogging, improves thread quality
3. Excellent performance on various work material: Stainless steel, carbon steel, alloyed steel, tool steel

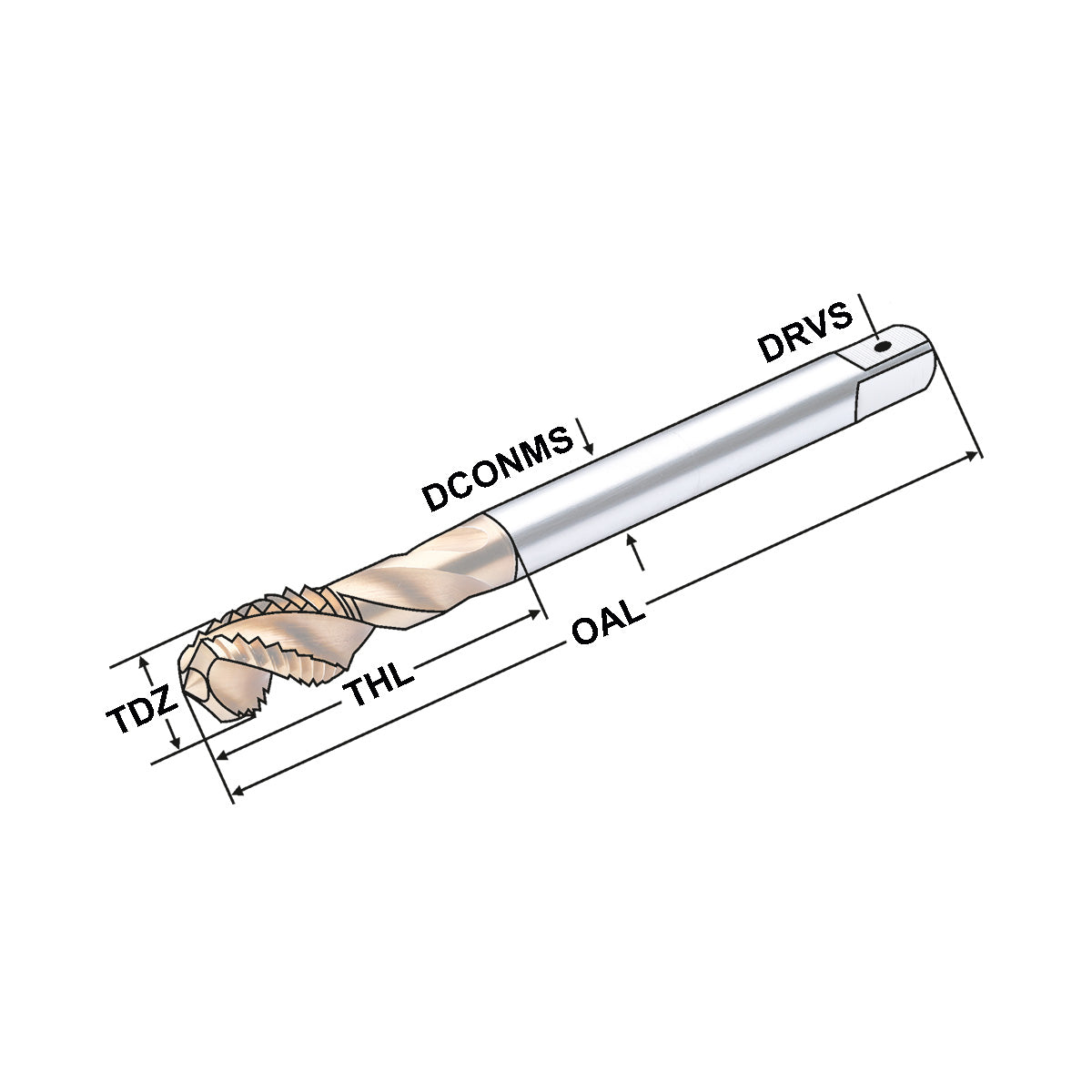

Property | Specification |
---|---|
OAL | 100 |
ADINTMS | Tap shank ISO -metric: 10x8 |
DRVS | 8 |
DCONMS | 10 |
CNSC | Nein |
CXSC | Nein |
BHFP | Ja |
BSG | DIN 371 |
FHA | 40° |
NOF | 3 |
NORGMX | 0 |
PHD | 8,5 |
SUBSTRATE | Titanium Nitrid |
TCTR | 6H |
TD | 10 |
TDZ | M10 |
THCHT | C |
THL | 15 |
TP | 1,5 |
