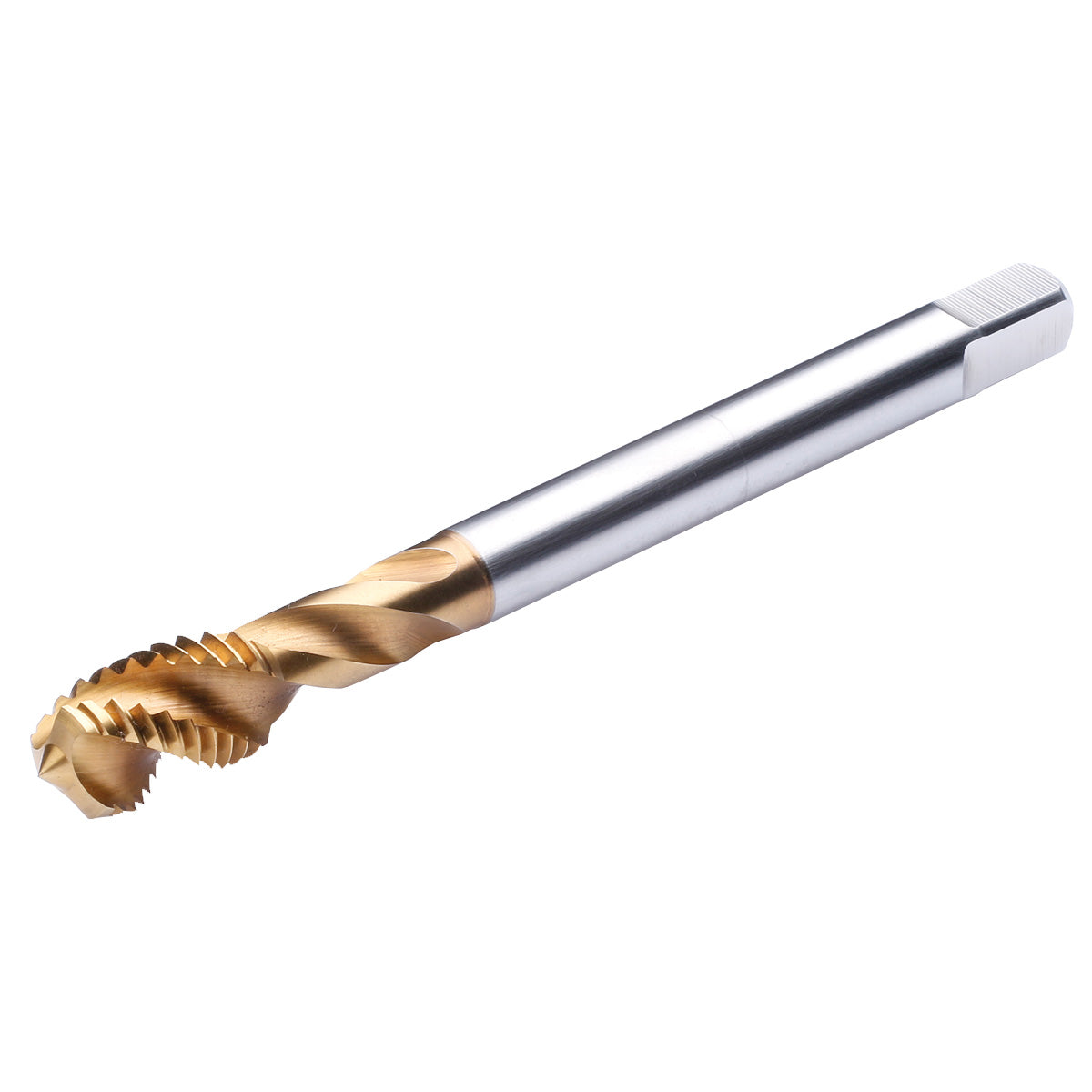

HSS-E spiral flute taps M3,5 4x3 P=0,6
HSS-E spiral flute taps M3,5 4x3 P=0,6
Application:
1. Thread configuration with a special design, prevents overfeeding, thin thread and pitch diameter oversize.
2. Flute geometry with special design, better chip evacuation, prevents chip clogging, improves thread quality
3. Excellent performance on various work material: Stainless steel, carbon steel, alloyed steel, tool steel

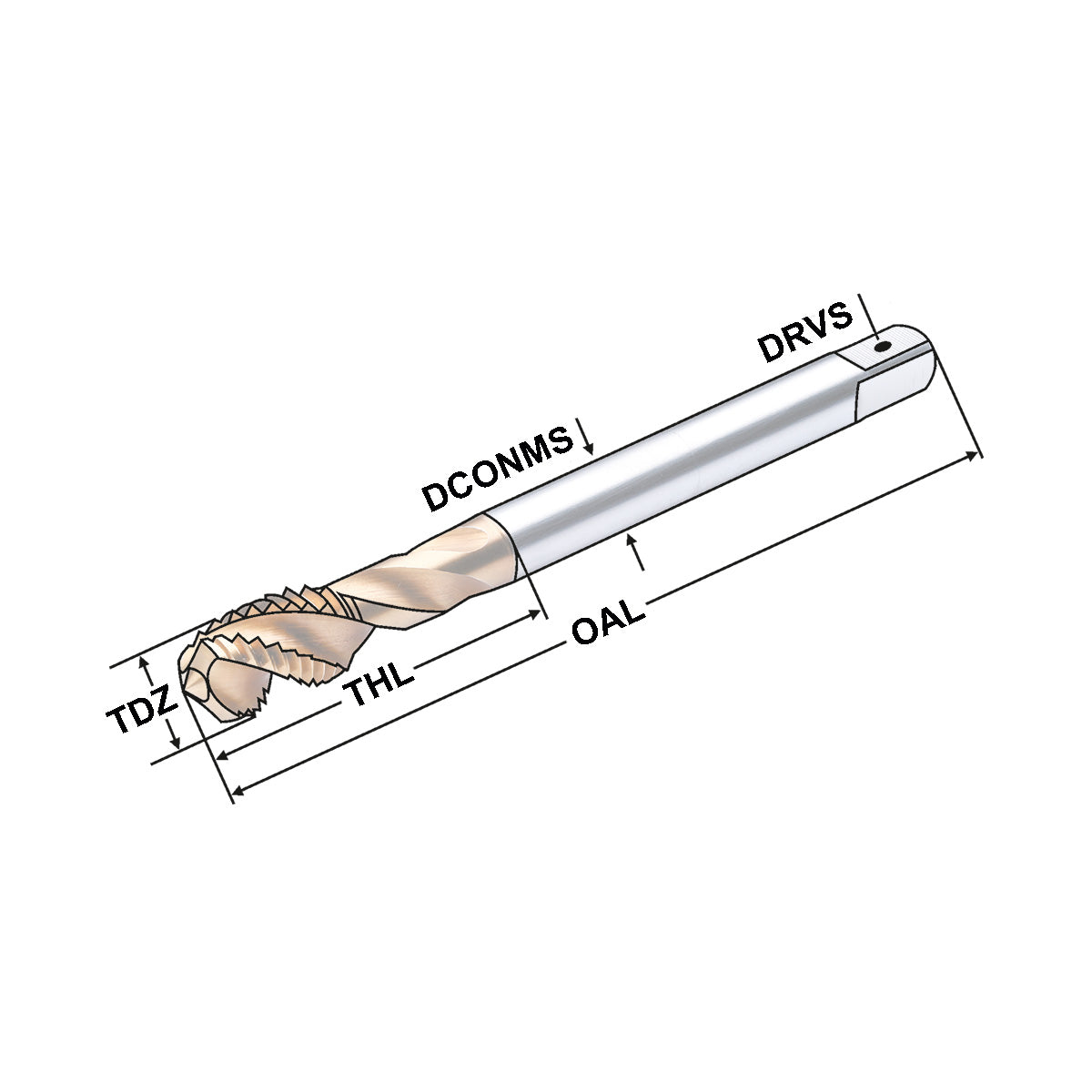

| Property | Specification |
|---|---|
| OAL | 56 |
| ADINTMS | Tap shank ISO -metric: 4x3 |
| DRVS | 3 |
| DCONMS | 4 |
| CNSC | Nein |
| CXSC | Nein |
| BHFP | Ja |
| BSG | DIN 371 |
| FHA | 40° |
| NOF | 3 |
| NORGMX | 0 |
| PHD | 2,9 |
| SUBSTRATE | Titanium Nitrid |
| TCTR | 6H |
| TD | 3,5 |
| TDZ | M3,5 |
| THCHT | C |
| THL | 7 |
| TP | 0,6 |
