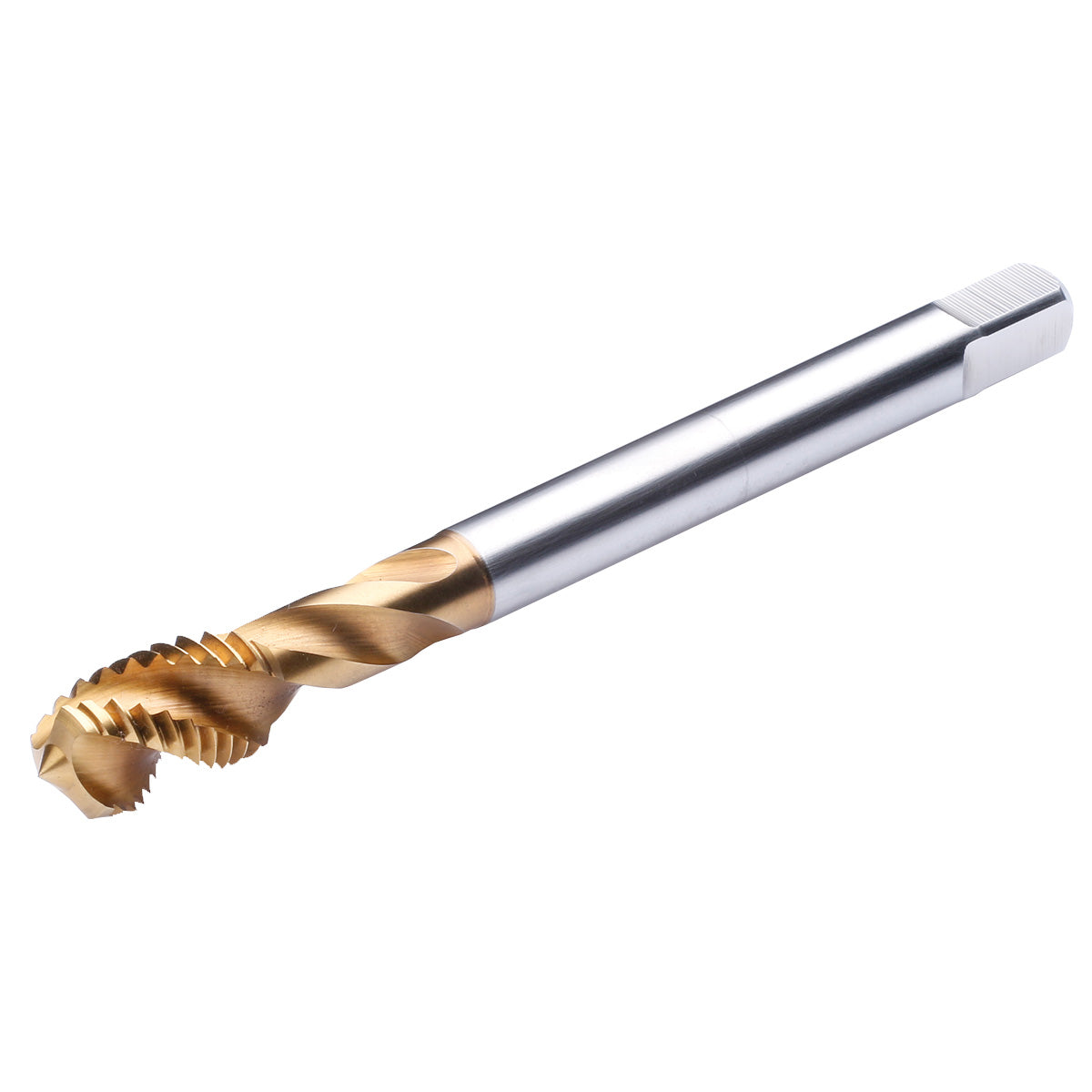

HSS-E spiral flute taps M20 16x12 P=2,5
HSS-E spiral flute taps M20 16x12 P=2,5
Application:
1. Thread configuration with a special design, prevents overfeeding, thin thread and pitch diameter oversize.
2. Flute geometry with special design, better chip evacuation, prevents chip clogging, improves thread quality
3. Excellent performance on various work material: Stainless steel, carbon steel, alloyed steel, tool steel

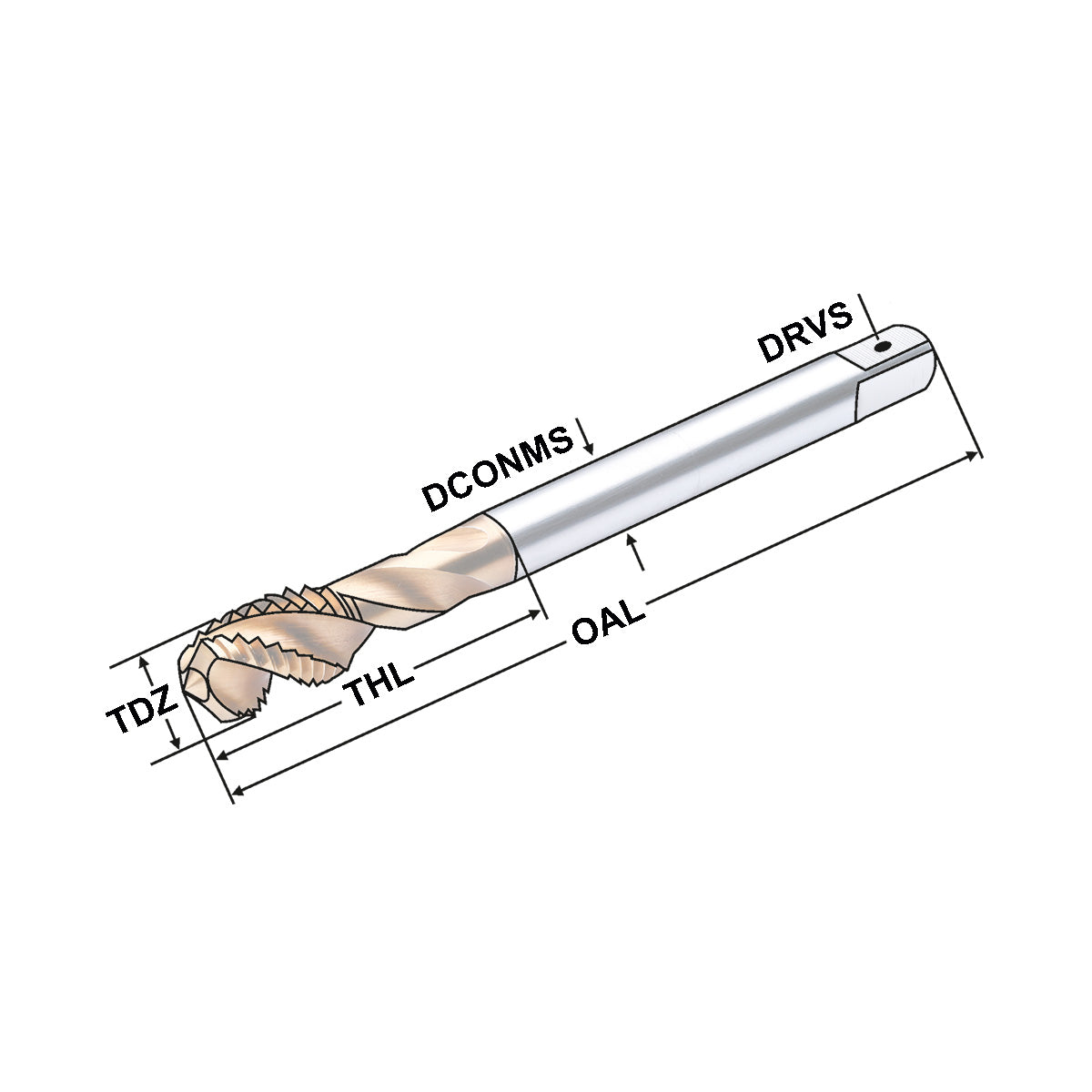

Property | Specification |
---|---|
OAL | 140 |
ADINTMS | Tap shank ISO -metric: 16x12 |
DRVS | 12 |
DCONMS | 16 |
CNSC | Nein |
CXSC | Nein |
BHFP | Ja |
BSG | DIN 376 |
FHA | 40° |
NOF | 4 |
NORGMX | 0 |
PHD | 17,5 |
SUBSTRATE | Titanium Nitrid |
TCTR | 6H |
TD | 20 |
TDZ | M20 |
THCHT | C |
THL | 25 |
TP | 2,5 |
