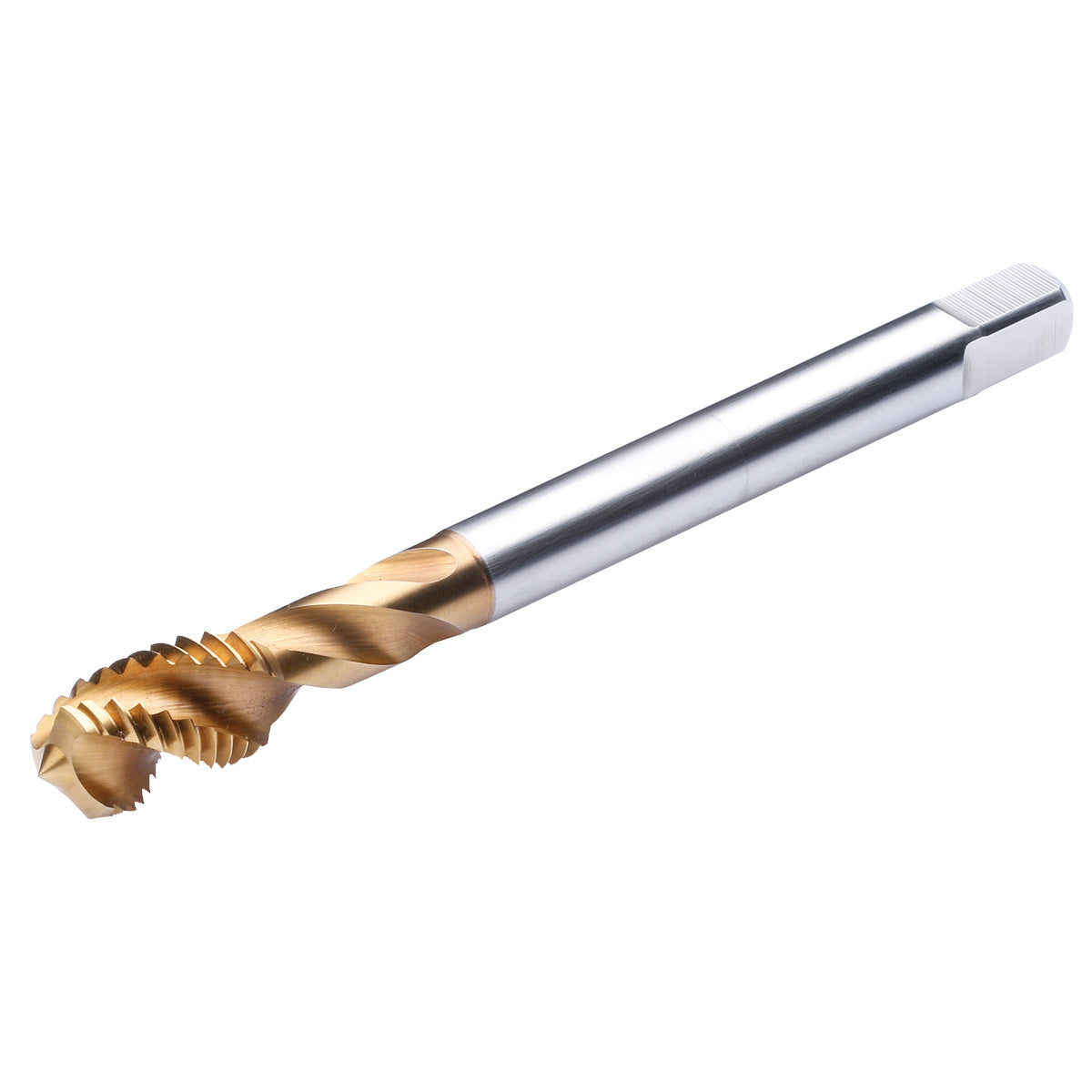

HSS-E spiral flute taps M30 22x18 P=3,5
HSS-E spiral flute taps M30 22x18 P=3,5
Application:
1. Thread configuration with a special design, prevents overfeeding, thin thread and pitch diameter oversize.
2. Flute geometry with special design, better chip evacuation, prevents chip clogging, improves thread quality
3. Excellent performance on various work material: Stainless steel, carbon steel, alloyed steel, tool steel

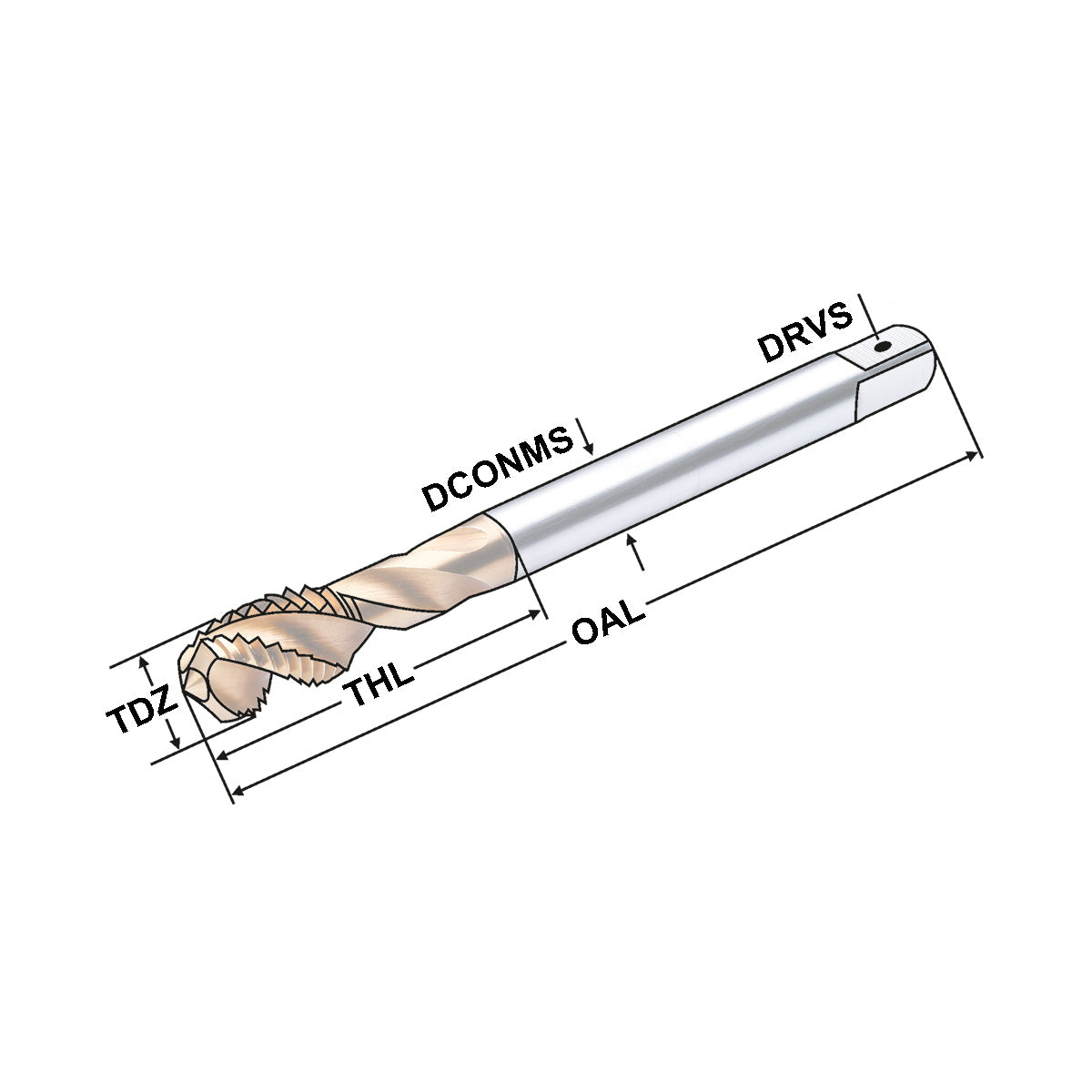

| Property | Specification |
|---|---|
| OAL | 180 |
| ADINTMS | Tap shank ISO -metric: 22x18 |
| DRVS | 18 |
| DCONMS | 22 |
| CNSC | Nein |
| CXSC | Nein |
| BHFP | Ja |
| BSG | DIN 376 |
| FHA | 40° |
| NOF | 4 |
| NORGMX | 0 |
| PHD | 26,5 |
| SUBSTRATE | Titanium Nitrid |
| TCTR | 6H |
| TD | 30 |
| TDZ | M30 |
| THCHT | C |
| THL | 35 |
| TP | 3,5 |
