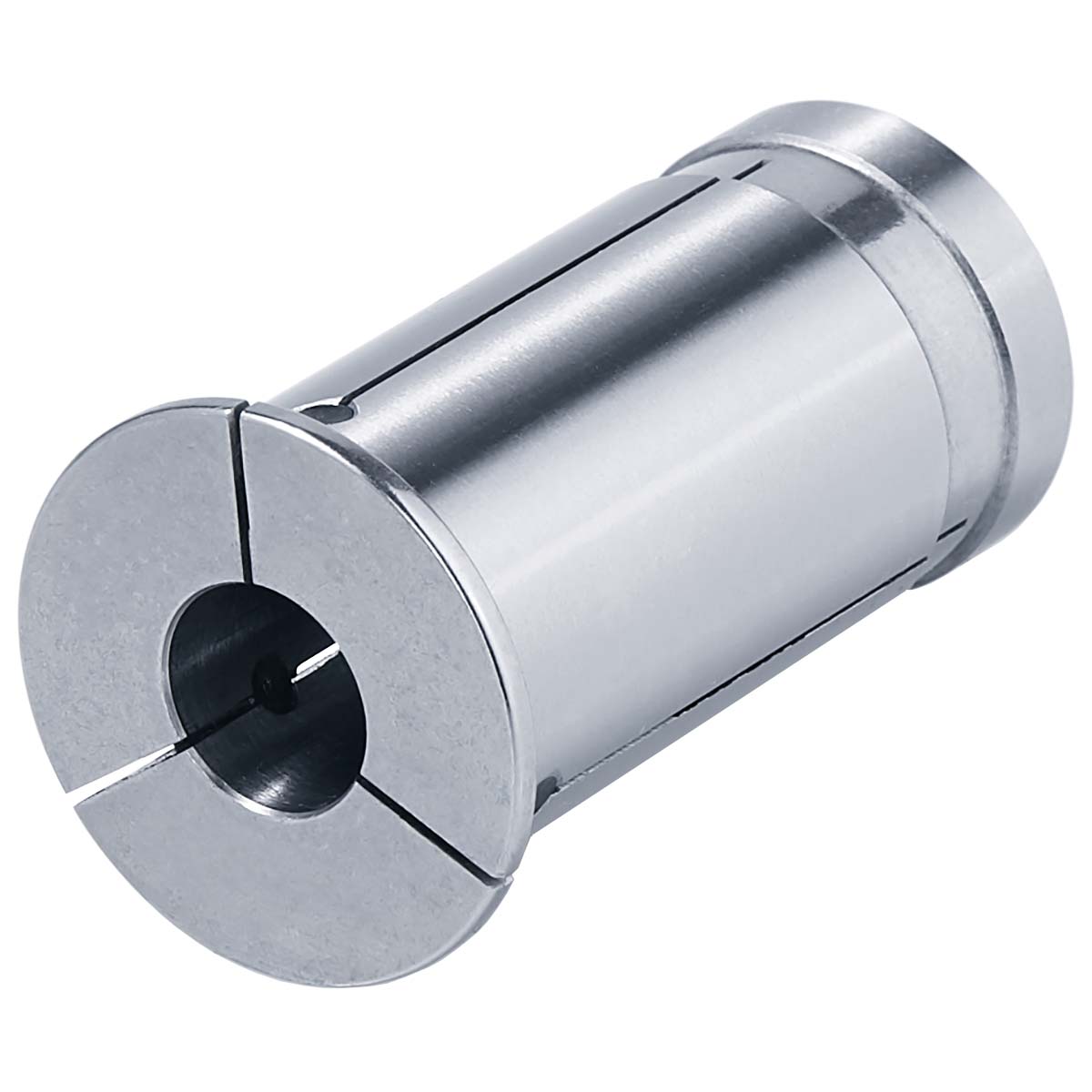

Reduction sleeves for Milling Chuck DCONMS=32 | DCONWS=4

Reduction sleeves for Milling Chuck DCONMS=32 | DCONWS=4

€111.00
€111.00
Tax included. Shipping calculated at checkout.

Product Details

Application:
For mounting straight-shank tools with internal coolant.

Note:
The chucking diameter is configured for a tool tolerance of h6.

Specifications

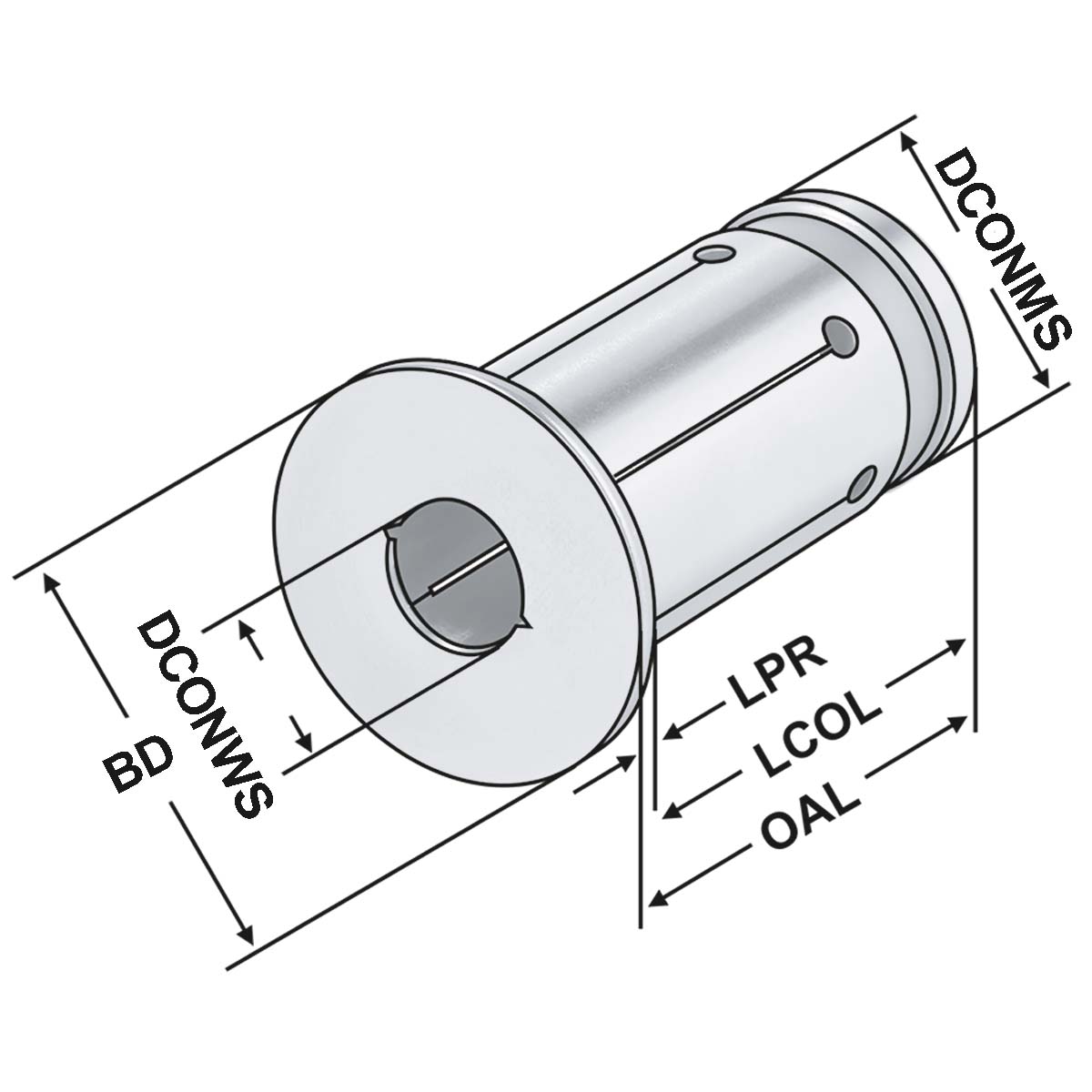

PropertySpecification
CP80 bar
DCONWS4
OAL62,5
BD42
ADINTMSReduzierungen für Kraftspannfutter
ADINTWSCylindrical clamping - metric
DCONMS32
LPR5
SEALJa
Rundlaufgenauigkeit< 5µm
LCOL57,5
Expected delivery date:
26 Sep Usually ready in 6-7 days.
