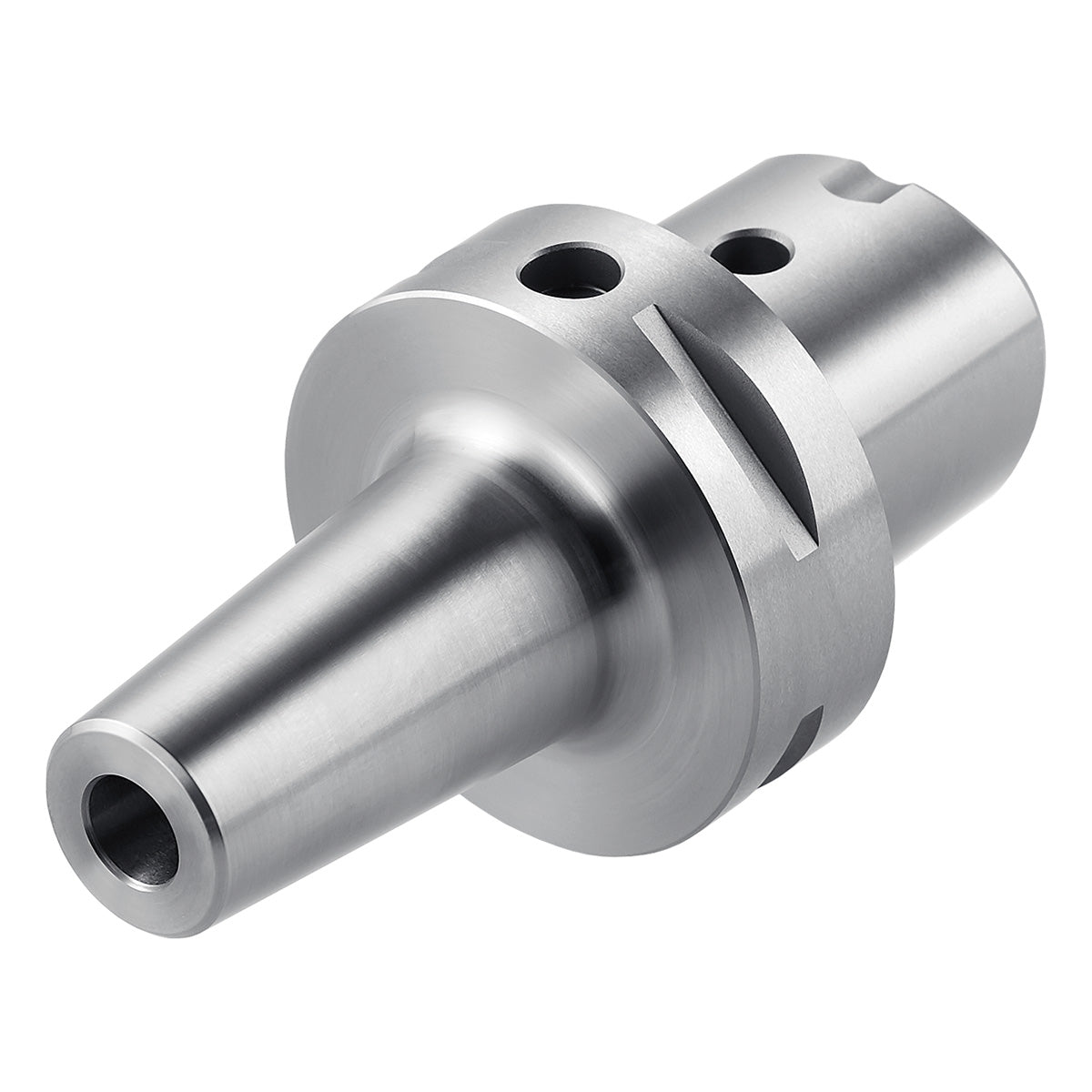

Shrink chuck 4,5° PSK 63 - 12 - 80

Shrink chuck 4,5° PSK 63 - 12 - 80

€275.00
€275.00
Tax included. Shipping calculated at checkout.

Product Details

Application:
For mounting tools with straight shanks.

Note:
Aufnahmen für Induktiv-, Kontakt- und Heißluftschrumpfgeräte geeignet. Schafttoleranz bei Ø 3, 4 und 5 mm = h4, bei Ø 6 – Ø 32 mm = h232

For Ø 3, 4 and 5 mm only solid carbide tool shanks must be used!
  • All holders are made of forged steel
  • Specific, low warpage hardened
  • Surface hardened HRC 58~60
  • Hardening depth 0,8mm~0,9mm
  • Taper angle tolerance < AT 3 according to DIN 2080
  • Surface roughness Ra < 0,4 µm
  • Tensile strength in the core of min. 800 N/mm² after DIN
  • All functional surfaces fine machined

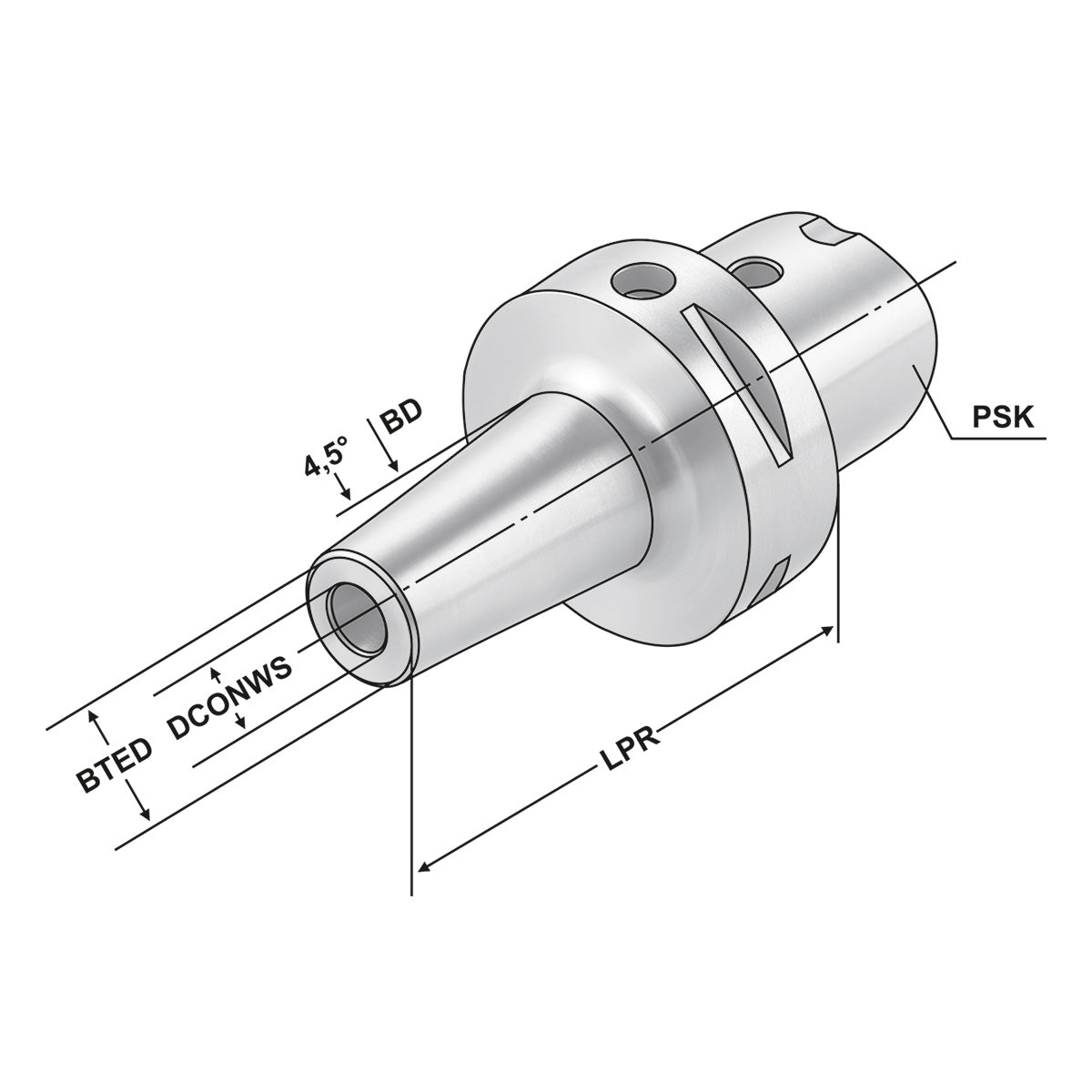

Specifications
PropertySpecification
DCONWS12
BD32
ADINTMSCCS - Polygonschaftkegel
ADINTWSSchrumpffutter 4,5°
Rundlauf< 3µm
TDCONh6
LPR80
AuswuchtgüteG2,5 | 25.000 1/min
THIDM10x1
ADJRGA10
LSCX47
BTED24
LSCN37
PSKC6 | PSK 63
Expected delivery date:
10 Sep Usually ready in 6-7 days.
