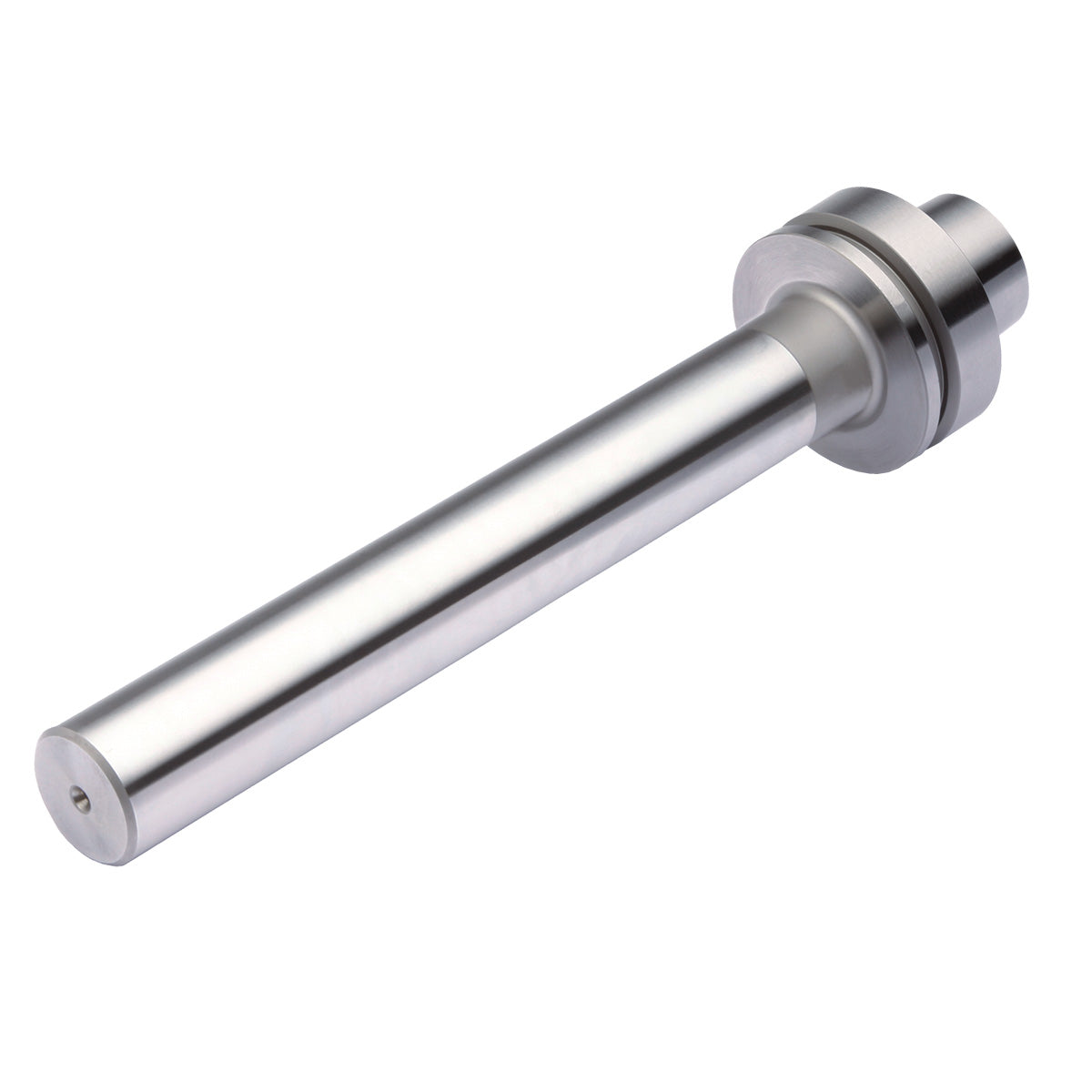

Test arbor HSK 63 - 40 - 346

Test arbor HSK 63 - 40 - 346

€383.00
€383.00
Tax included. Shipping calculated at checkout.

Product Details

Application:
For the inspection of machine tools according to ISO recommendation R230 or for testing the tool spindle.

Delivery with test certificate
  • All holders are made of forged steel
  • Specific, low warpage hardened
  • Surface hardened HRC 58~60
  • Hardening depth 0,8mm~0,9mm
  • Taper angle tolerance < AT 3 according to DIN 2080
  • Surface roughness Ra < 0,4 µm
  • Tensile strength in the core of min. 800 N/mm² after DIN
  • All functional surfaces fine machined

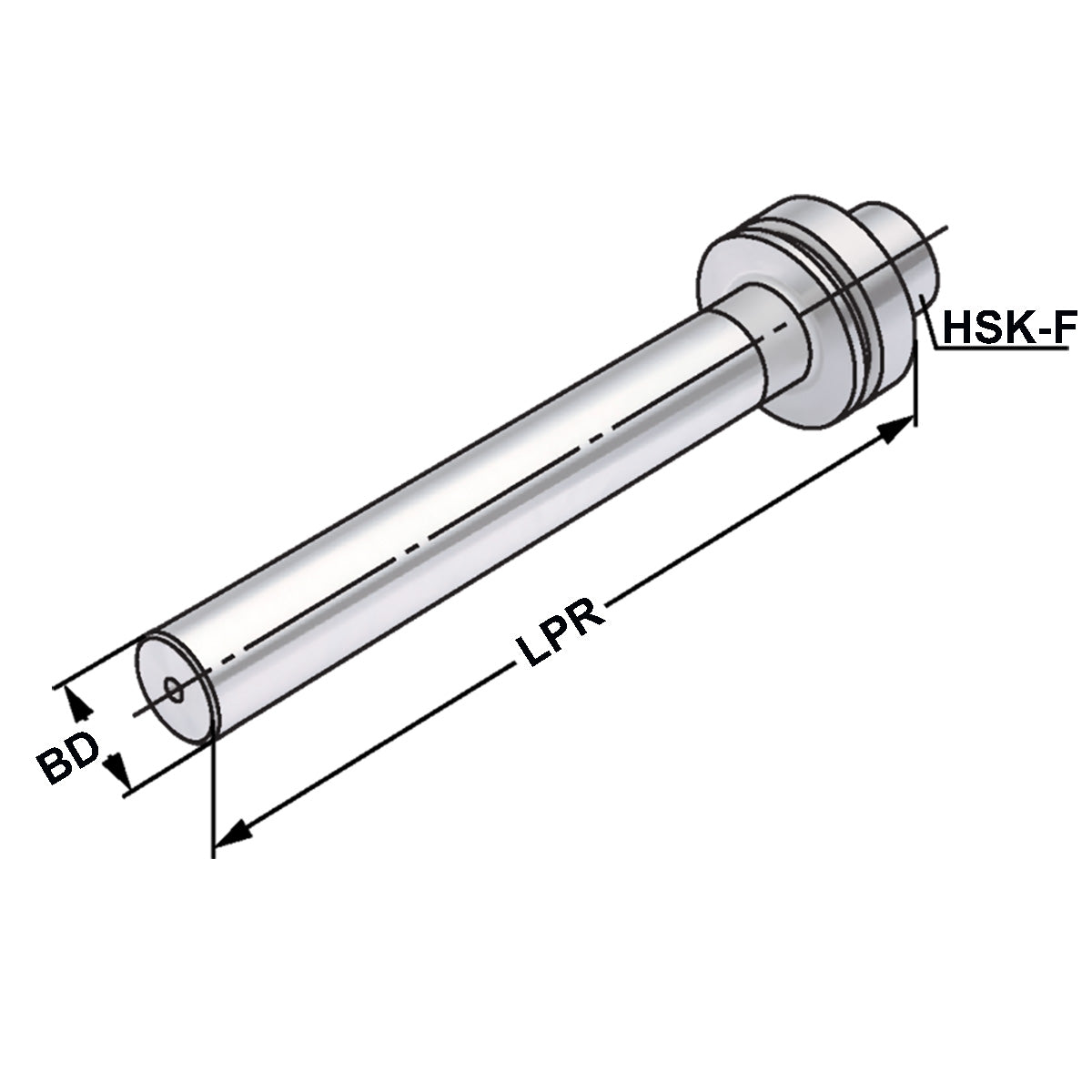

Specifications
PropertySpecification
BD40
ADINTMSDIN 69893-6 (HSK-F)
ADINTWSKontrolldorn
Rundlauf< 3µm
LPR346
HSKHSK-F 63
max. Rundlaufabweichung< 3µm
Toleranz< 3µm
Expected delivery date:
12 Nov Usually ready in 6-7 days.
