  • Pull studs ISO 7388-3 | Form JD | M12 | 45° | with drill through | incl. O-ring
  • Pull studs ISO 7388-3 | Form JD | M12 | 45° | with drill through | incl. O-ring
1 2

Pull studs ISO 7388-3 | Form JD | M12 | 45° | with drill through | incl. O-ring

Pull studs ISO 7388-3 | Form JD | M12 | 45° | with drill through | incl. O-ring

€7.00
€7.00
Tax included. Shipping calculated at checkout.

Product Details

ISO 7388-3 - Retention knobs for shank form JD with centric inner cooling supply

Application:

  • For tools with taper shanks DIN 69871 and JIS B 6339 (MAS-BT)
  • In machining centres (machines with automatic tool changers)
  • In NC machines (machines without automatic tool changers)

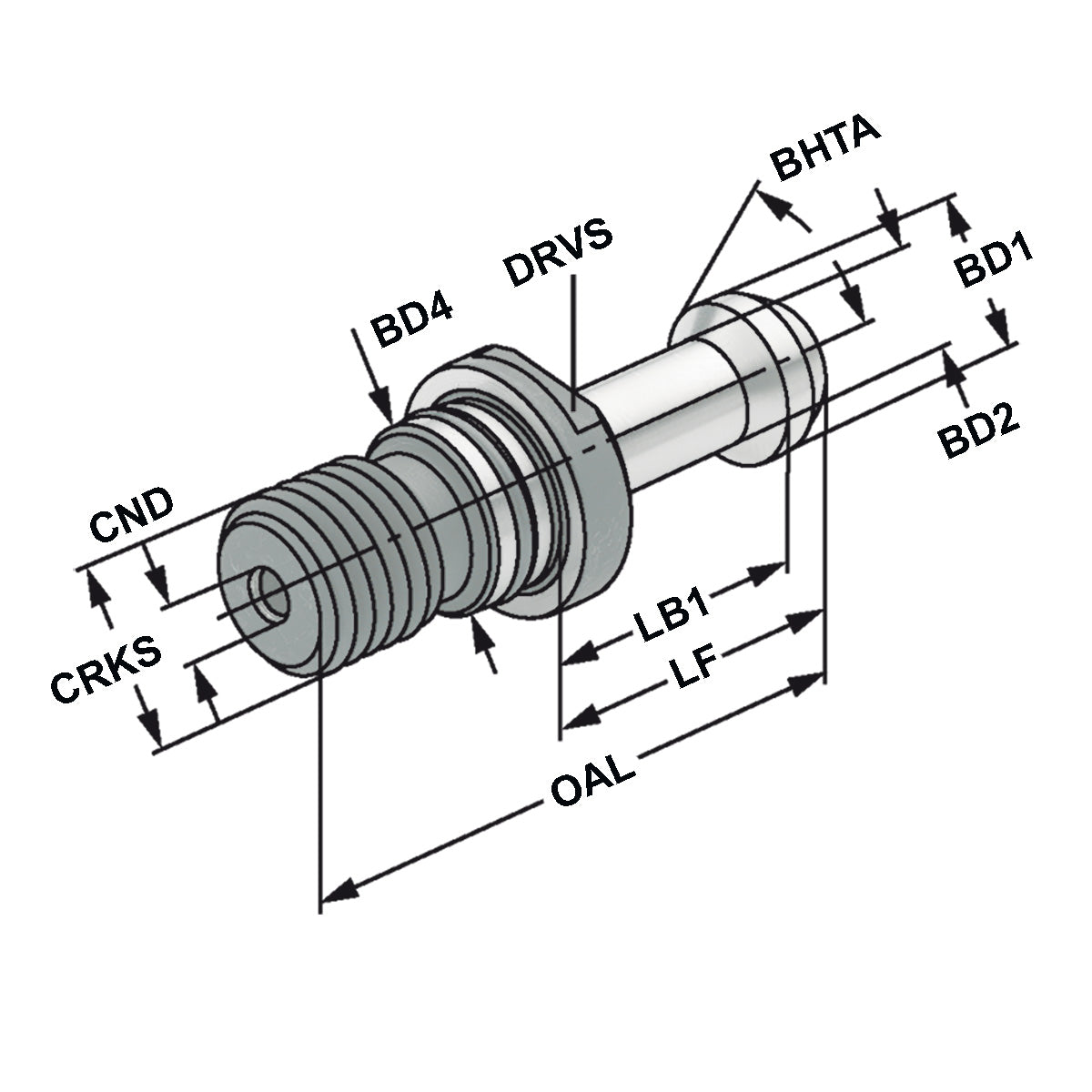

Specifications
PropertySpecification
OAL43
TQX20 Nm
DRVS13
LF23
BD27
BD111
BD412,5
BHTA45°
CND2,5
CRKSM12
Kegelgröße30
LB118
NormISO 7388-3
SchaftformJD
Expected delivery date:
10 Sep Usually ready in 6-7 days.
