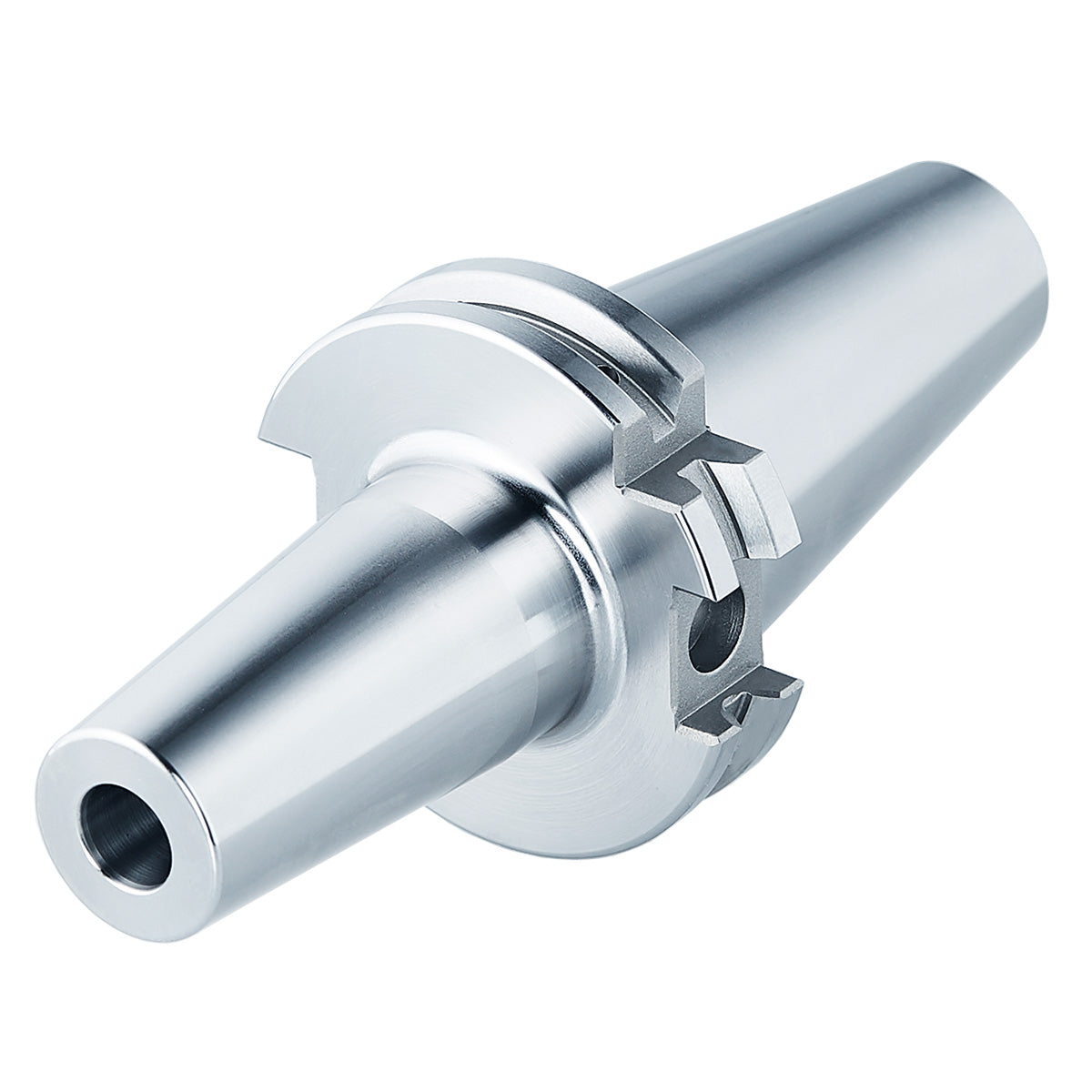

Shrink chuck 4,5° SK 40 - 18 - 120

Shrink chuck 4,5° SK 40 - 18 - 120

€119.00
€119.00
Tax included. Shipping calculated at checkout.

Product Details

Application:
For mounting tools with straight shanks.

Note:
Toolholders suitable for induction-, contact- and hot air shrink units. Ø 3, 4, 5 with h4-tolerance and Ø 6 – Ø 32 with h6-tolerance2

For Ø 3, 4 and 5 mm only solid carbide tool shanks must be used!
  • All holders are made of forged steel
  • Specific, low warpage hardened
  • Surface hardened HRC 58~60
  • Hardening depth 0,8mm~0,9mm
  • Taper angle tolerance < AT 3 according to DIN 2080
  • Surface roughness Ra < 0,4 µm
  • Tensile strength in the core of min. 800 N/mm² after DIN
  • All functional surfaces fine machined

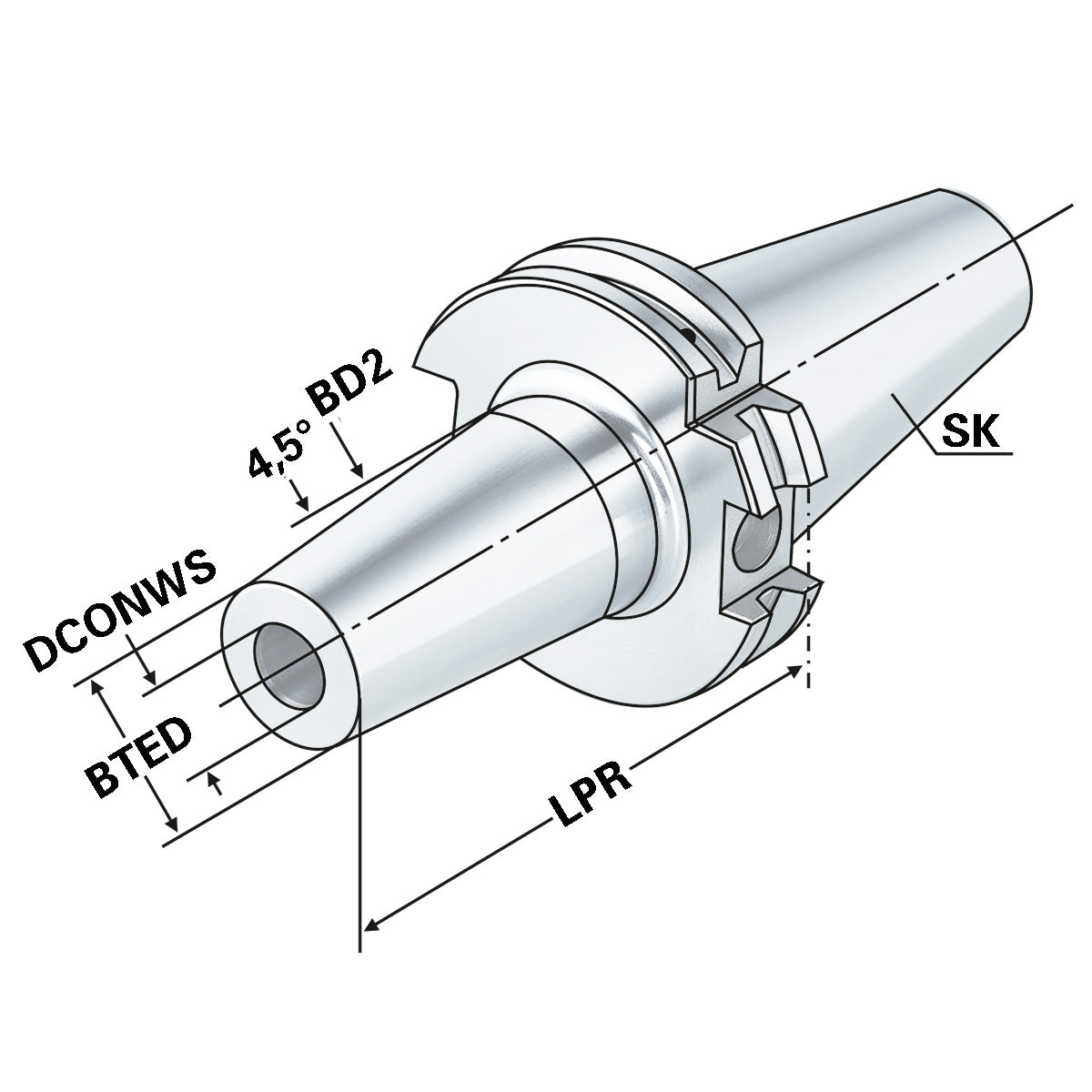

Specifications
PropertySpecification
DCONWS18
ADINTMSISO 7388-1 (DIN 69871)
ADINTWSSchrumpffutter 4,5°
Rundlauf< 3µm
TDCONh6
LPR120
BD242
CNSCAD/AF (AD/B)
SKSK 40
AuswuchtgüteG2,5 | 25.000 1/min
DCPJa
DCPSD10/H4,5
THIDM12x1
ADJRGA10
LSCX49
BTED33
LSCN39
Expected delivery date:
10 Sep Usually ready in 6-7 days.
