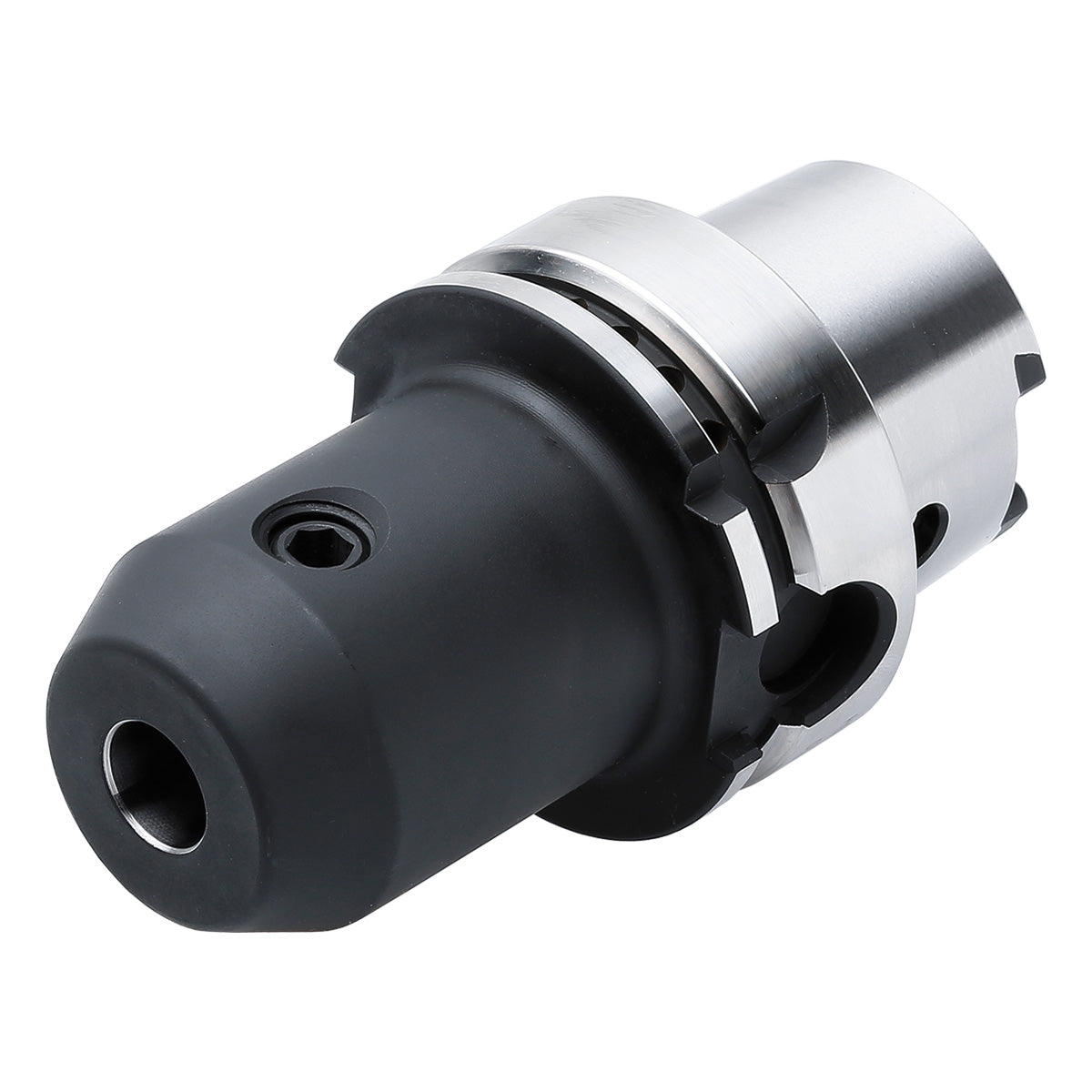

End mill holder Weldon HSK63 - 12 - 100

End mill holder Weldon HSK63 - 12 - 100

€123.00
€123.00
Tax included. Shipping calculated at checkout.

Product Details

Application:
For mounting straight-shank tools with lateral flat according to DIN 1835 form B (Weldon).

Delivery:
With clamping screw

  • All holders are made of forged steel
  • Specific, low warpage hardened
  • Surface hardened HRC 58~60
  • Hardening depth 0,8mm~0,9mm
  • Taper angle tolerance < AT 3 according to DIN 2080
  • Surface roughness Ra < 0,4 µm
  • Tensile strength in the core of min. 800 N/mm² after DIN
  • All functional surfaces fine machined

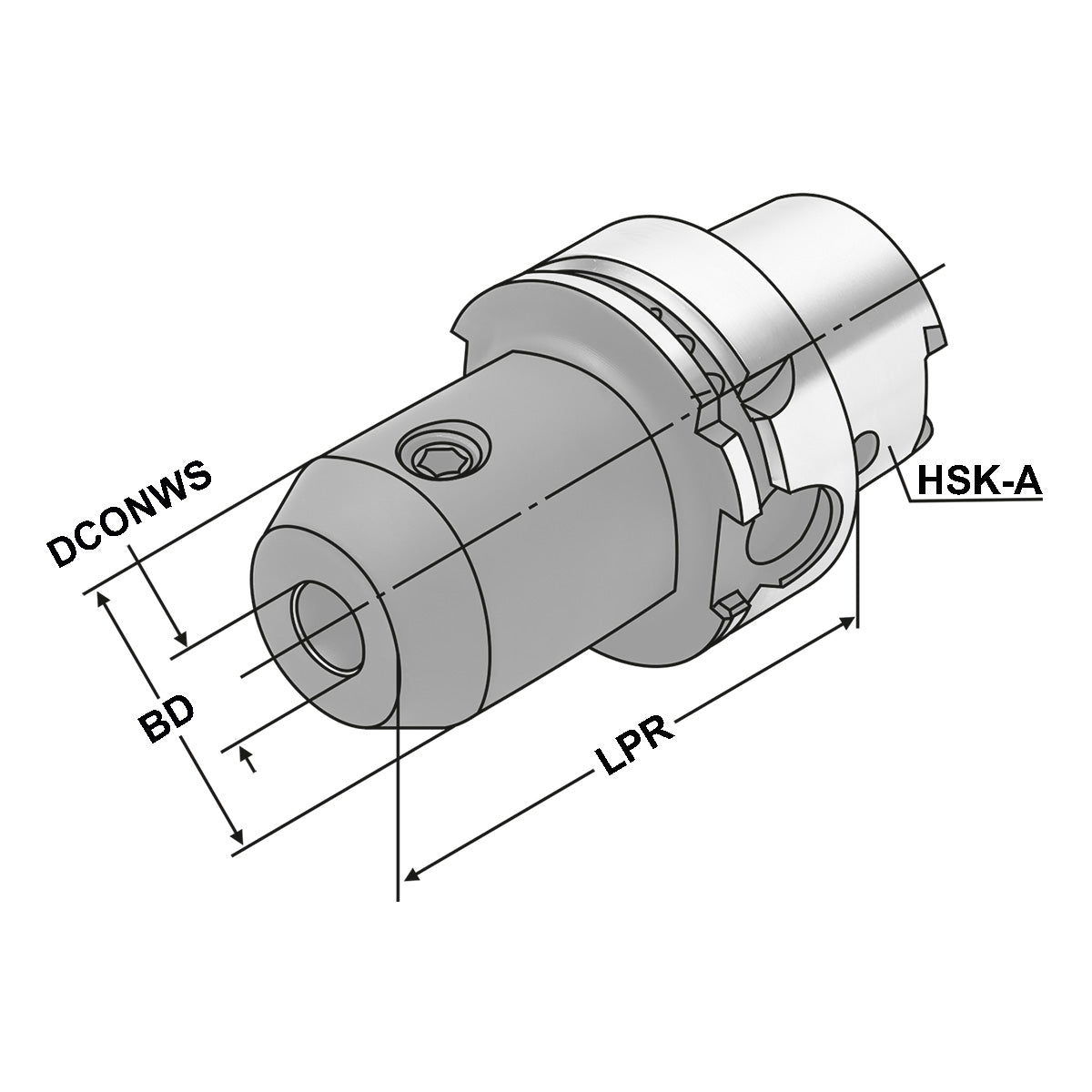

Specifications
PropertySpecification
DCONWS12
BD42
ADINTMSISO 12164 (HSK-A)
ADINTWSDIN 6359 (Weldon)
LPR100
AuswuchtgüteG2,5 | 25.000 1/min
DCPJa
DCPSD10/H4,5
HSKHSK-A 63
max. Rundlaufabweichung< 3µm
Expected delivery date:
10 Sep Usually ready in 6-7 days.
