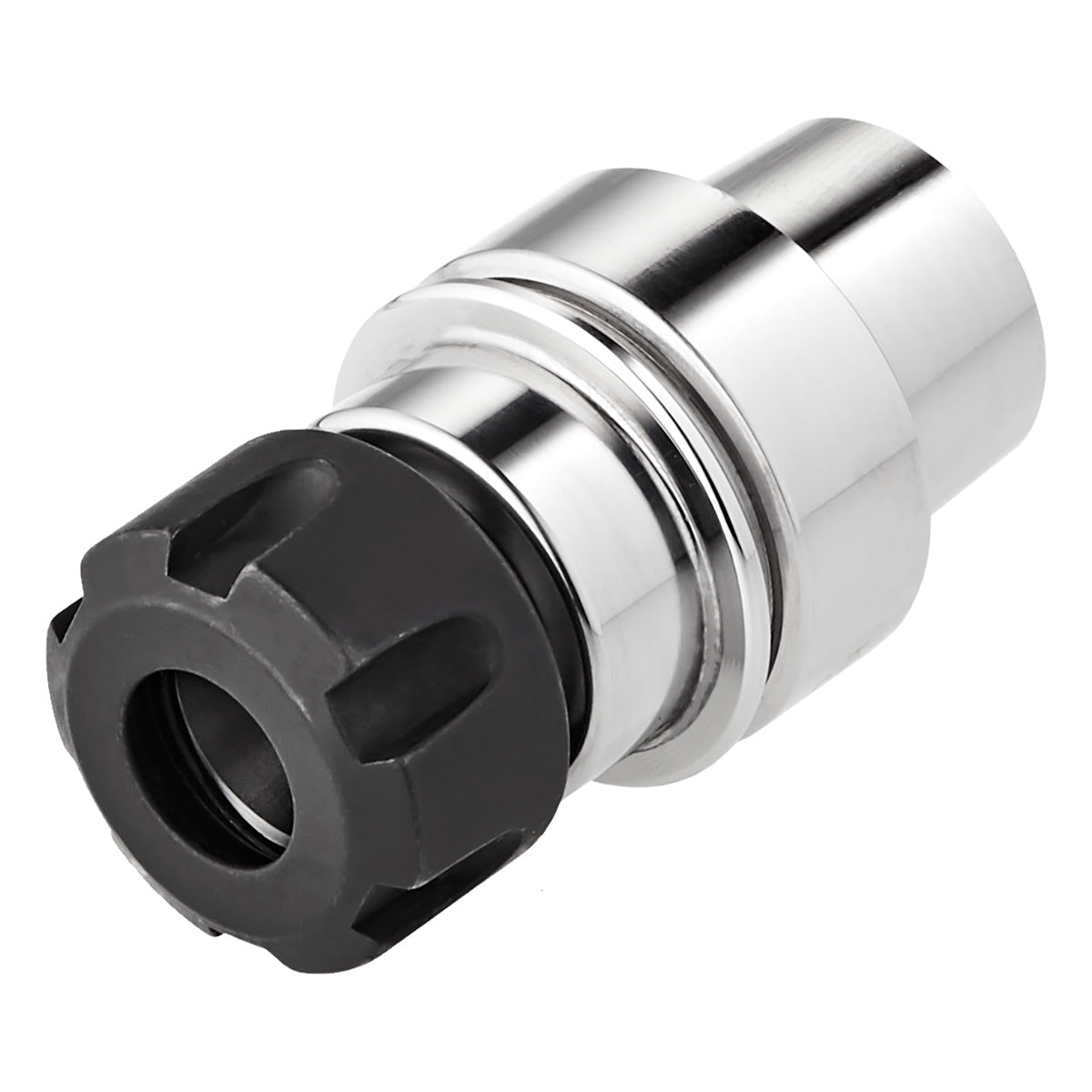

ER-Collet chuck HSK 40 - 1/10 - 65 | ER 16

ER-Collet chuck HSK 40 - 1/10 - 65 | ER 16

€119.00
€119.00
Tax included. Shipping calculated at checkout.

Product Details

Application:
For mounting straight-shank tools in collets.

Delivery:
With balanced clamping nut

  • All holders are made of forged steel
  • Specific, low warpage hardened
  • Surface hardened HRC 58~60
  • Hardening depth 0,8mm~0,9mm
  • Taper angle tolerance < AT 3 according to DIN 2080
  • Surface roughness Ra < 0,4 µm
  • Tensile strength in the core of min. 800 N/mm² after DIN
  • All functional surfaces fine machined
Specifications
PropertySpecification
DCONWS1 - 10
Typ426E | ER 16
ADINTMSDIN 69893-5 (HSK-E)
ADINTWSISO 15488 (DIN 6499) ER
Rundlauf< 3µm

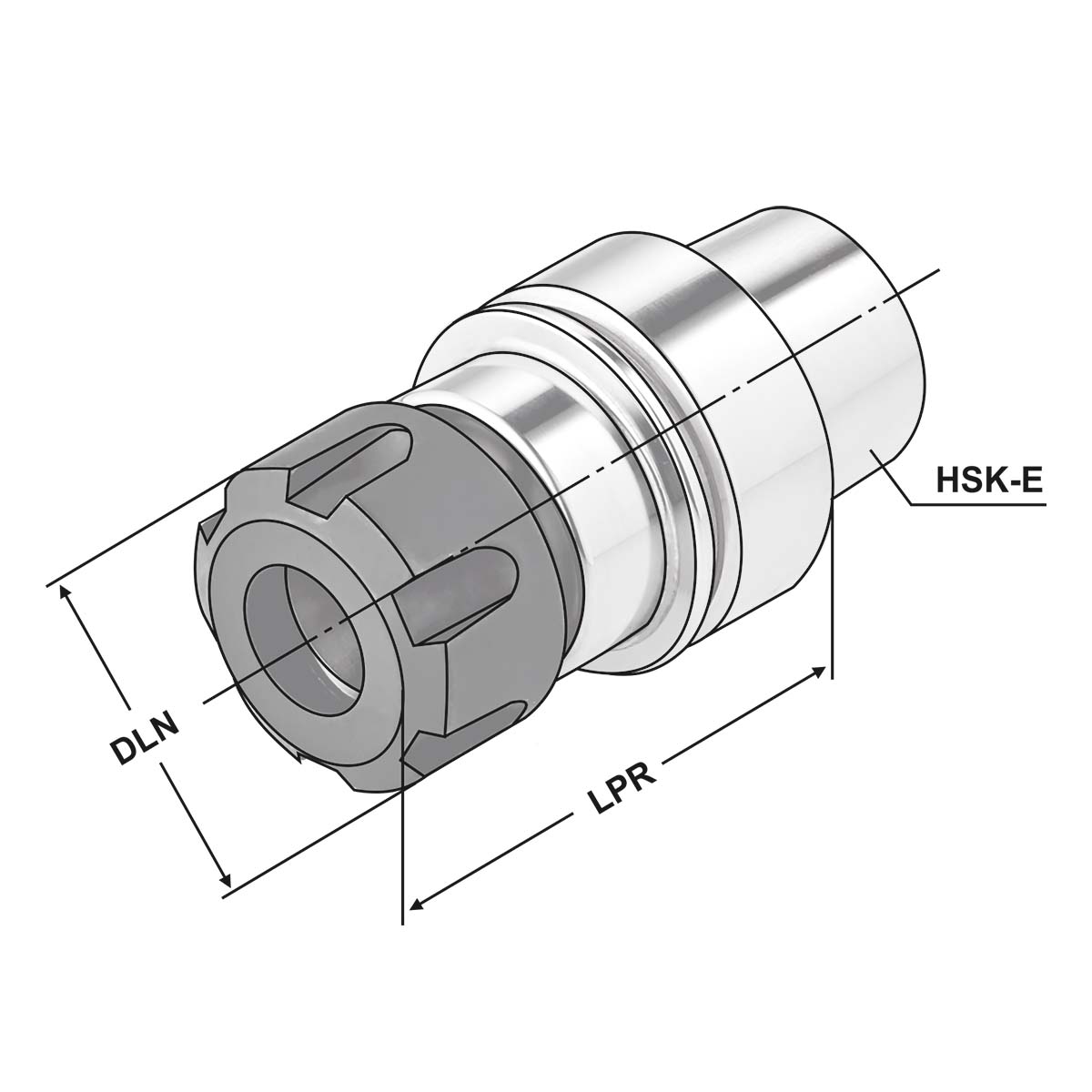

DLN32
LPR65
AuswuchtgüteG2,5 | 25.000 1/min
THIDM10 x 1,5
HSKHSK-E 40
Expected delivery date:
10 Sep Usually ready in 6-7 days.
