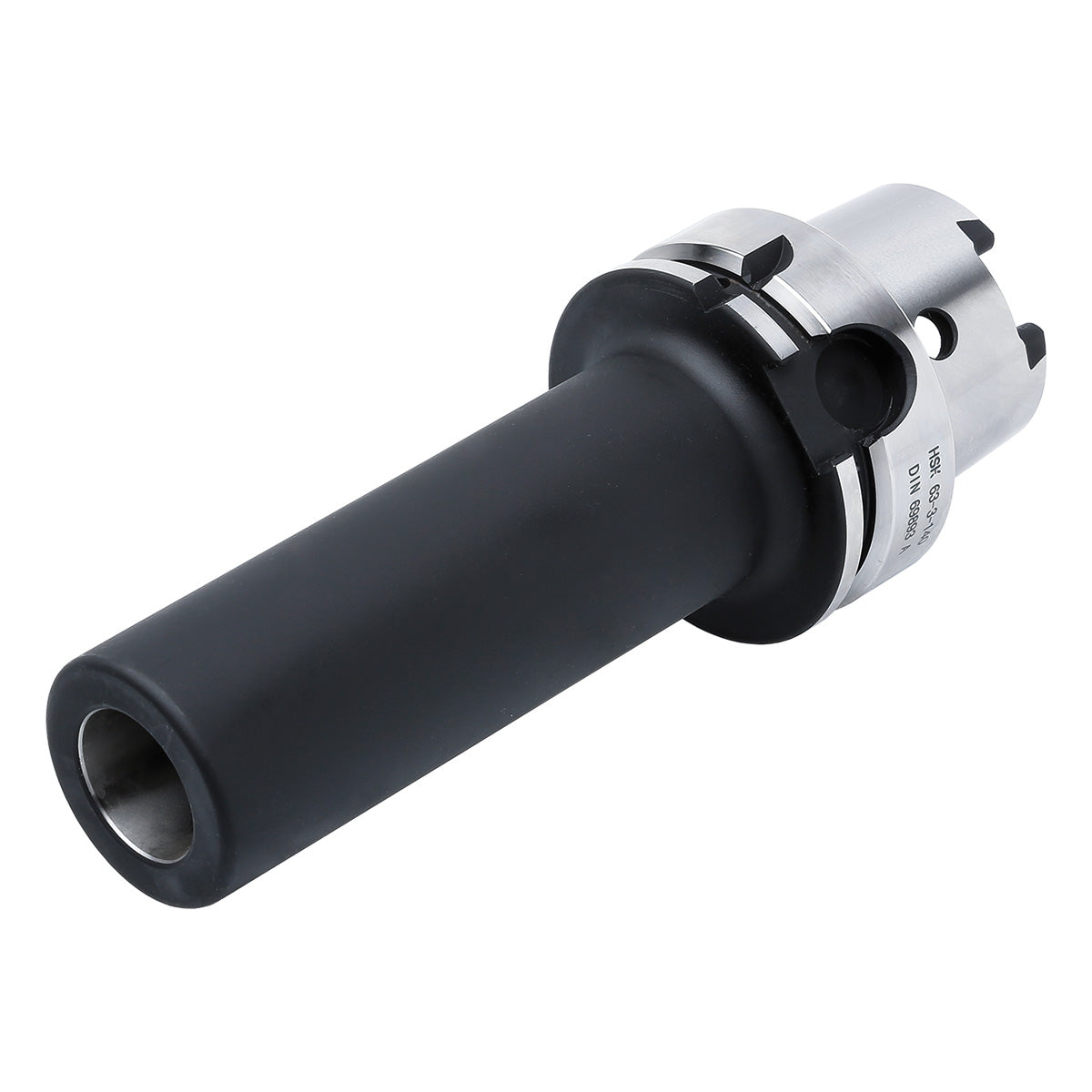

Morse taper adaptor HSK 100 - 1 - 110

Morse taper adaptor HSK 100 - 1 - 110

€160.00
€160.00
Tax included. Shipping calculated at checkout.

Product Details

Application:
For clamping tools with Morse taper shank and thread according to DIN 228-1 form A.

With built-in tightening bolt
  • All holders are made of forged steel
  • Specific, low warpage hardened
  • Surface hardened HRC 58~60
  • Hardening depth 0,8mm~0,9mm
  • Taper angle tolerance < AT 3 according to DIN 2080
  • Surface roughness Ra < 0,4 µm
  • Tensile strength in the core of min. 800 N/mm² after DIN
  • All functional surfaces fine machined

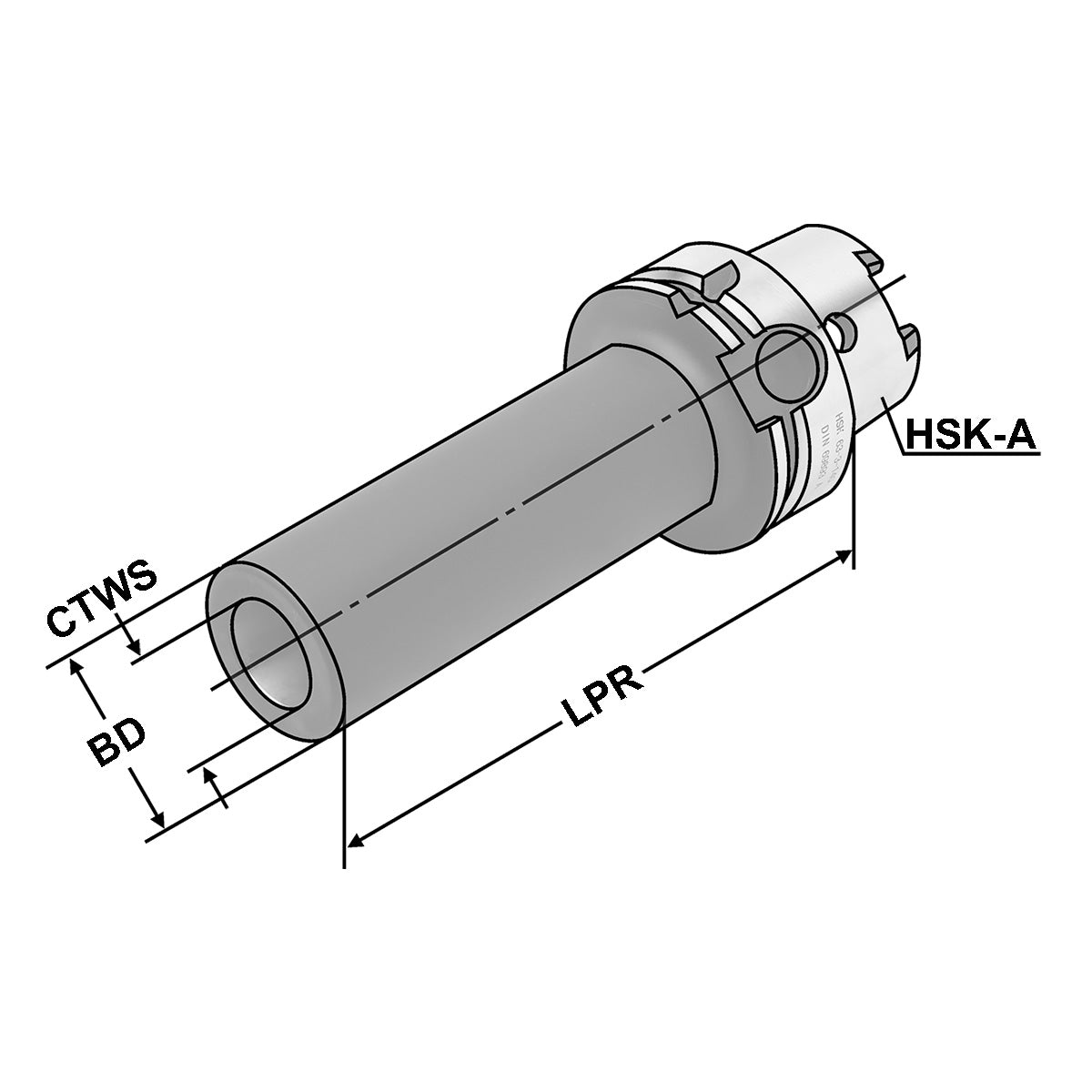

Specifications
PropertySpecification
BD25
ADINTMSISO 12164 (HSK-A)
ADINTWSDIN 6364
LPR110
CTWS1
AuswuchtgüteG6,3 | 15.000 1/min
DCPJa
DCPSD10/H4,5
THIDM6
HSKHSK-A 100
max. Rundlaufabweichung< 5µm
Expected delivery date:
10 Sep Usually ready in 6-7 days.
