Product Details

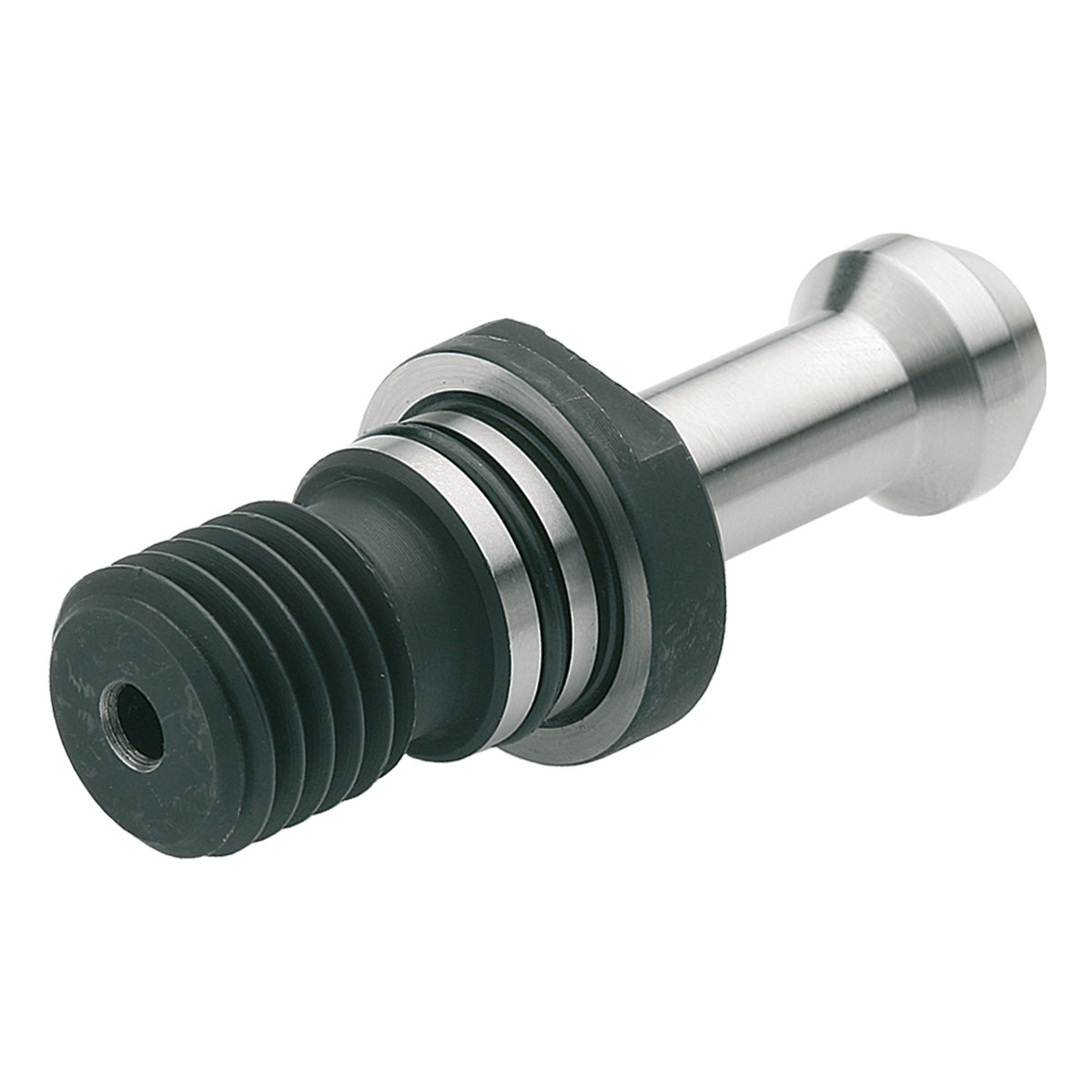

ISO 7388-3 - Retention knobs for shank form JD with centric inner cooling supply

Application:

  • For tools with taper shanks DIN 69871 and JIS B 6339 (MAS-BT)
  • In machining centres (machines with automatic tool changers)
  • In NC machines (machines without automatic tool changers)
Specifications

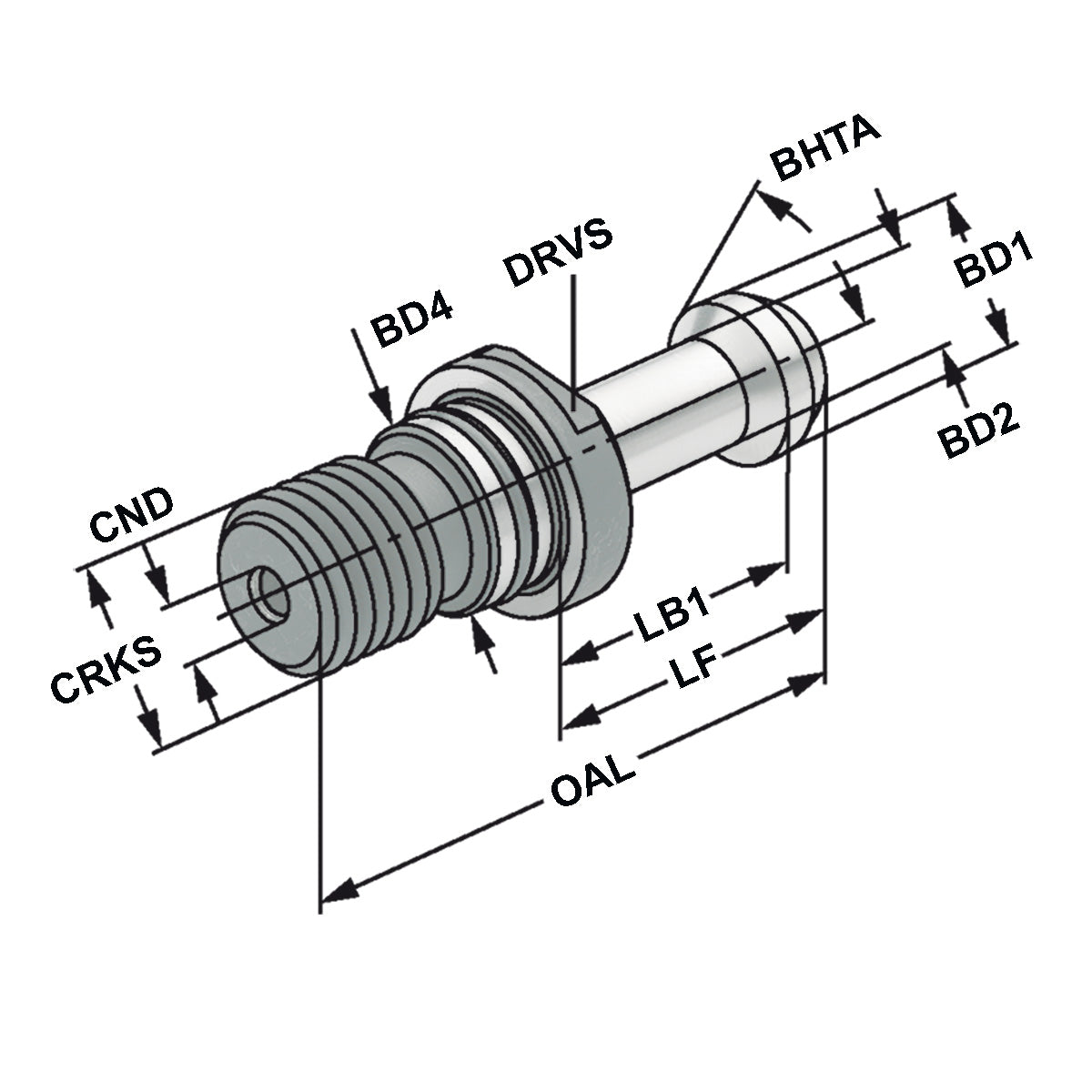

PropertySpecification
OAL60
TQX50 Nm
DRVS19
LF35
BD210
BD115
BD417
BHTA60°
CND4
CRKSM16
Kegelgröße40
LB128
NormISO 7388-3
SchaftformJD
