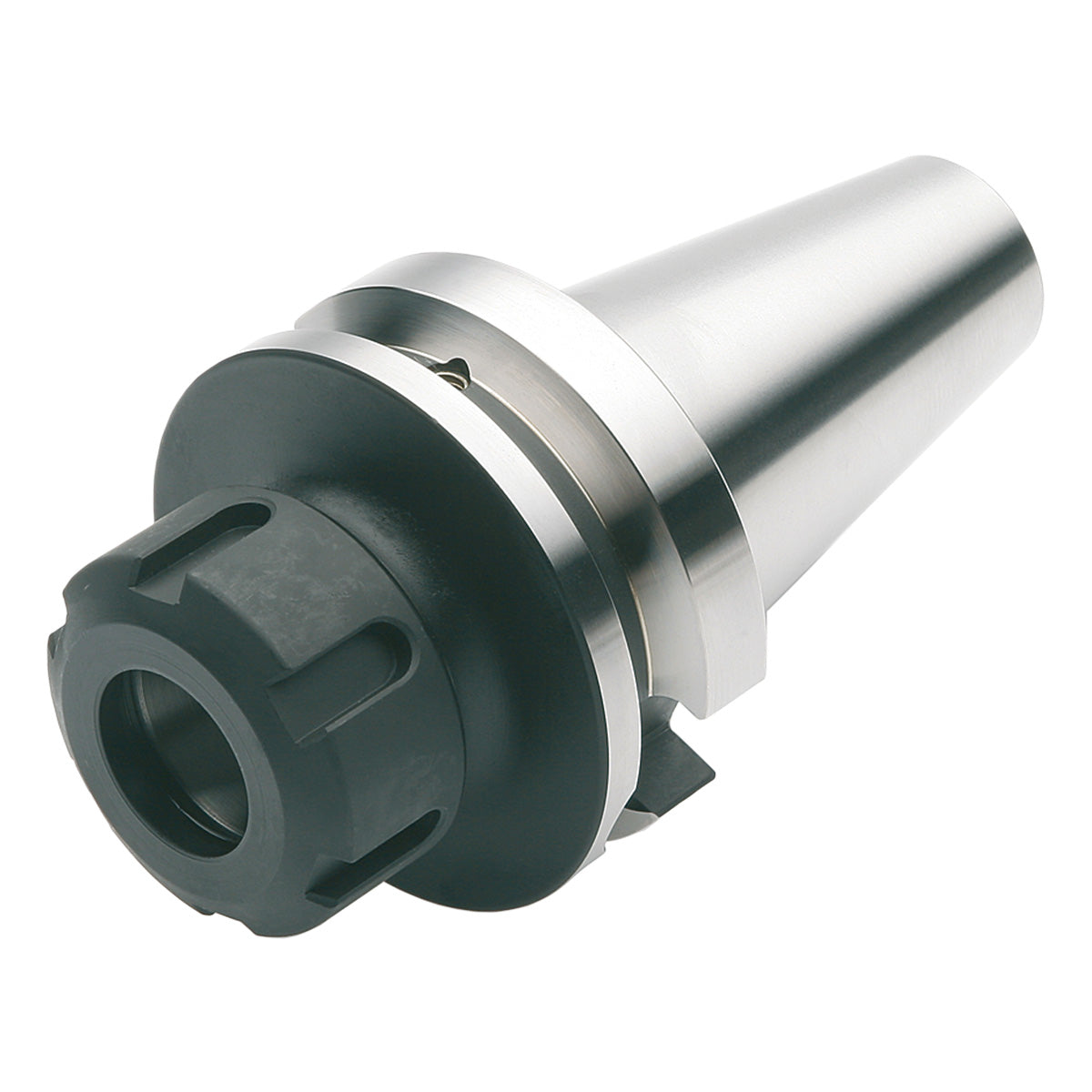

ER-Collet chuck BT 30 - 1/10 - 70 | ER 16

ER-Collet chuck BT 30 - 1/10 - 70 | ER 16

€62.00
€62.00
Tax included. Shipping calculated at checkout.

Product Details

Application:
For mounting straight-shank tools in collets.

Delivery:
With balanced clamping nut

  • All holders are made of forged steel
  • Specific, low warpage hardened
  • Surface hardened HRC 58~60
  • Hardening depth 0,8mm~0,9mm
  • Taper angle tolerance < AT 3 according to DIN 2080
  • Surface roughness Ra < 0,4 µm
  • Tensile strength in the core of min. 800 N/mm² after DIN
  • All functional surfaces fine machined

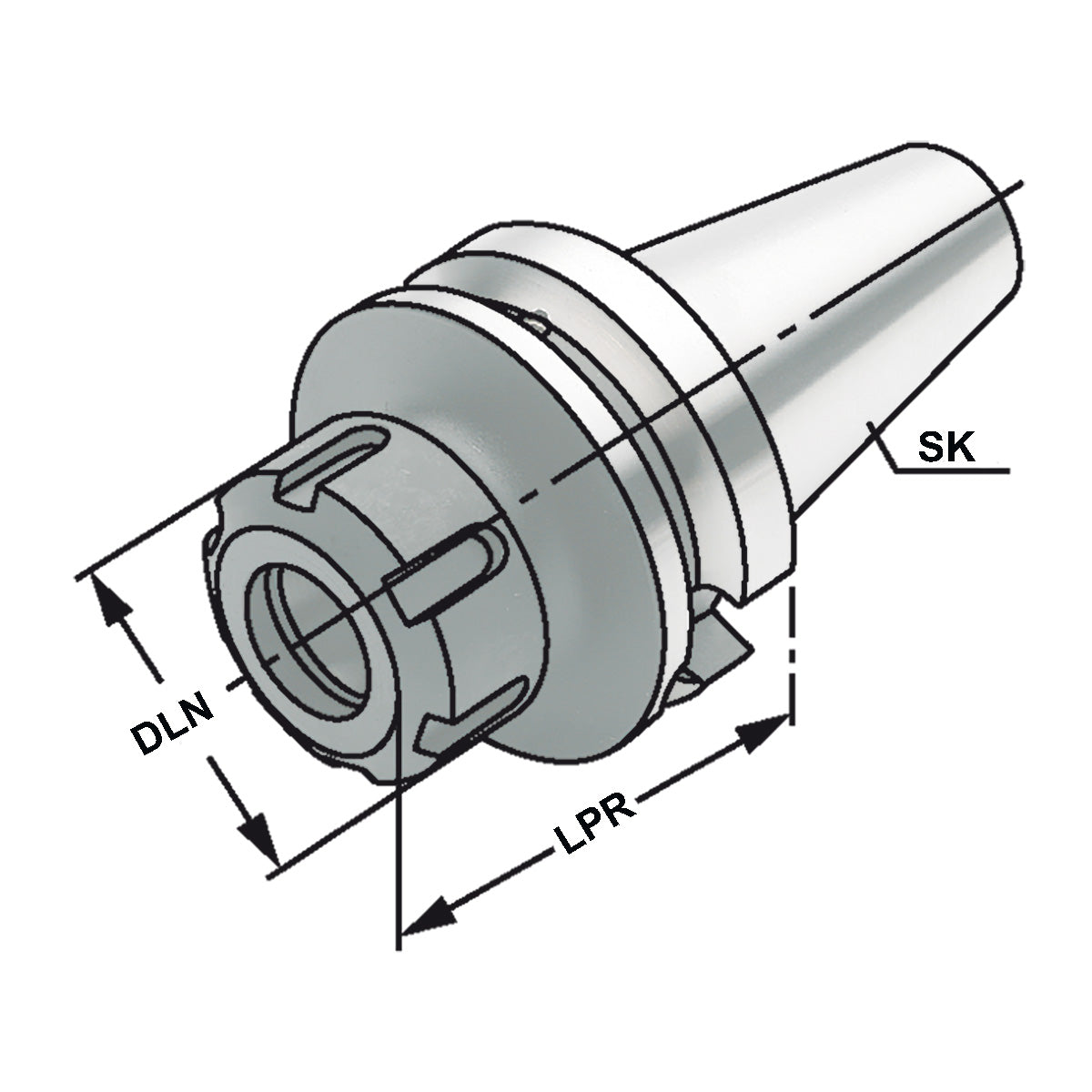

Specifications
PropertySpecification
DCONWS1 - 10
Typ426E | ER 16
ADINTMSISO 7388-2 (MAS-BT)
ADINTWSISO 15488 (DIN 6499) ER
Rundlauf< 3µm
DLN32
LPR70
CNSCJD (AD)
SKBT 30
AuswuchtgüteG2,5 | 25.000 1/min
THIDM10 x 1,5
Expected delivery date:
10 Sep Usually ready in 6-7 days.
