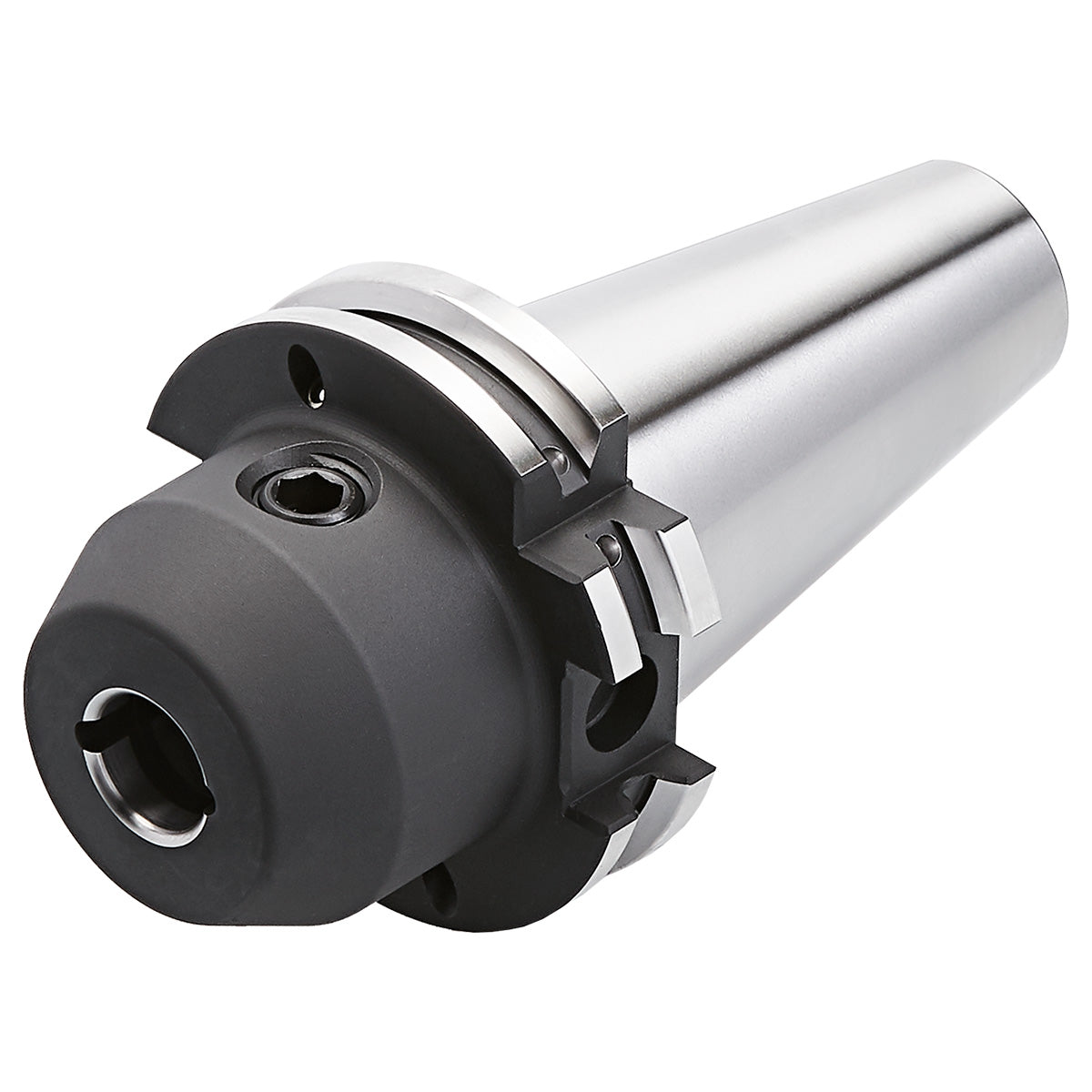

End mill holder Weldon with cooling channels SK 40 - 06 - 100

Application:
For mounting straight-shank tools with lateral flat according to DIN 1835 form B (Weldon). With coolant channels for optimal coolant at the cutting edge.

Note:

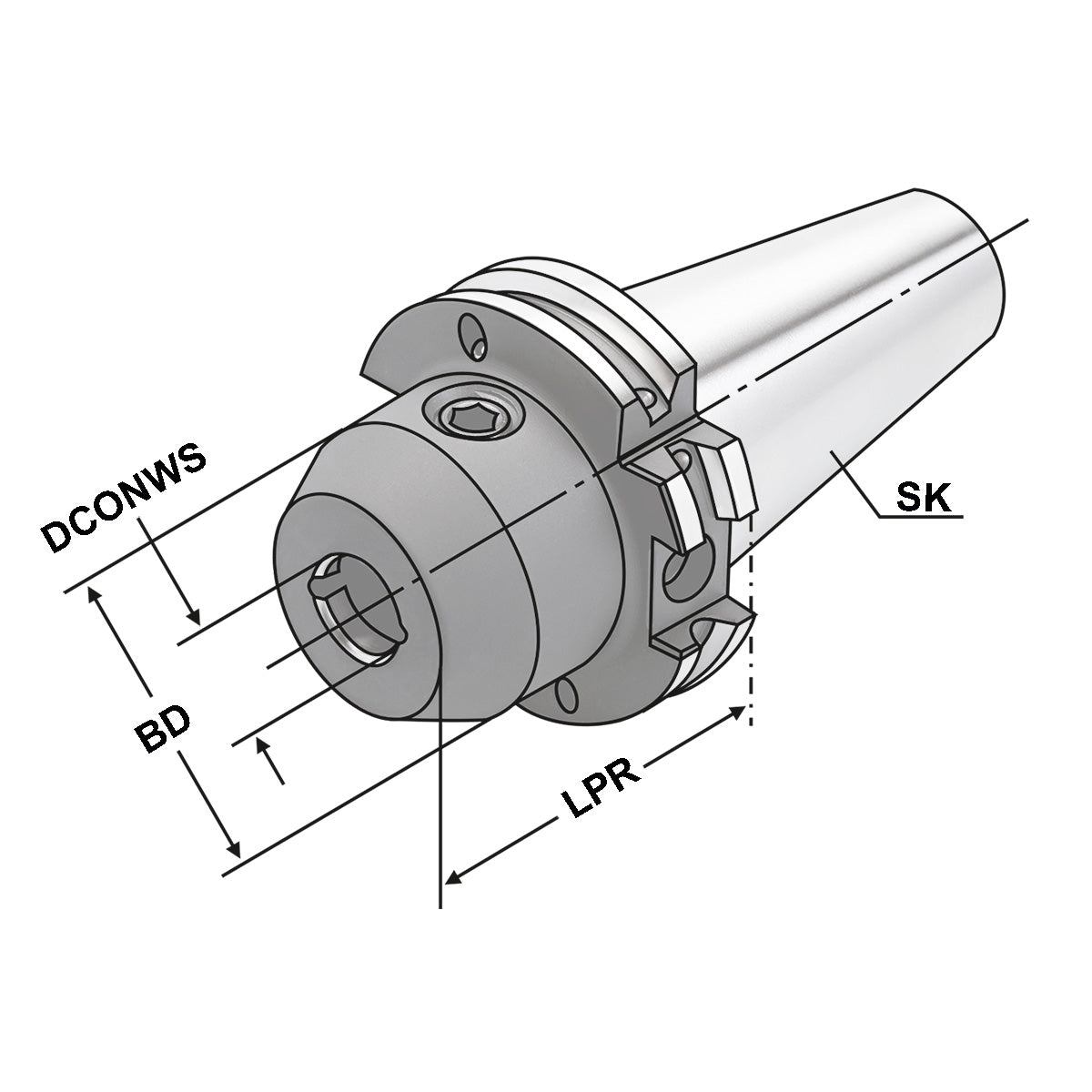

From DCONWS = 25 on two clamping screws

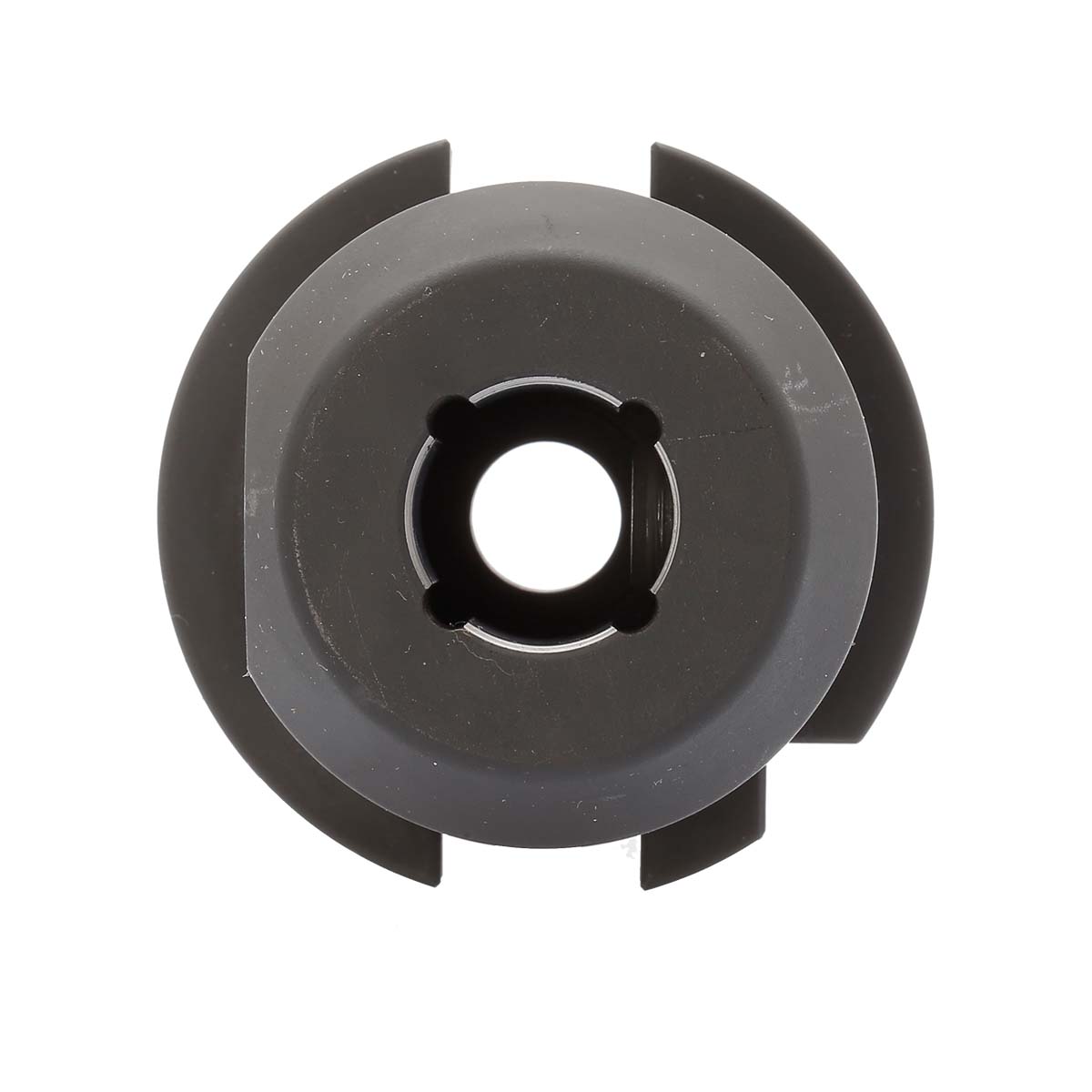

DCONWS = 6 to 18 with two coolant channels
DCONWS = 20 to 40 with four coolant channels
For tools with through coolant an O-ring must be used.

Delivery:
With clamping screw and O-ring
