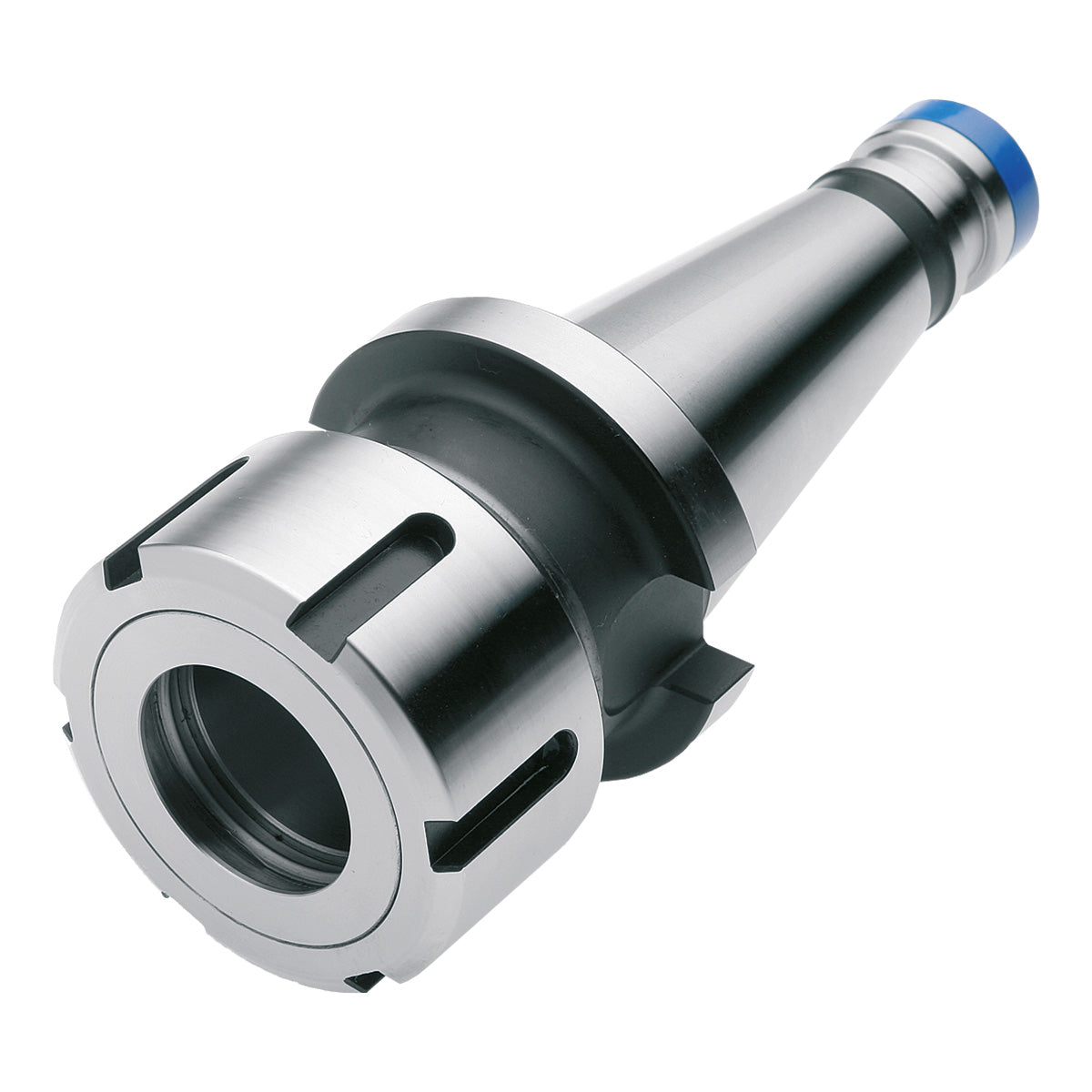

OZ-Collet chuck SK 30 - 2/16 - 50 | OZ 16

OZ-Collet chuck SK 30 - 2/16 - 50 | OZ 16

€80.00
€80.00
Tax included. Shipping calculated at checkout.

Product Details

Application:
For mounting straight-shank tools in collets.

With ball bearing clamping nut
  • All holders are made of forged steel
  • Specific, low warpage hardened
  • Surface hardened HRC 58~60
  • Hardening depth 0,8mm~0,9mm
  • Taper angle tolerance < AT 3 according to DIN 2080
  • Surface roughness Ra < 0,4 µm
  • Tensile strength in the core of min. 800 N/mm² after DIN
  • All functional surfaces fine machined





Specifications
PropertySpecification
DCONWS2 - 16
Typ415E | OZ 16
ADINTMSDIN 2080
ADINTWSISO 10897 (DIN 6388) OZ
Rundlauf< 3µm

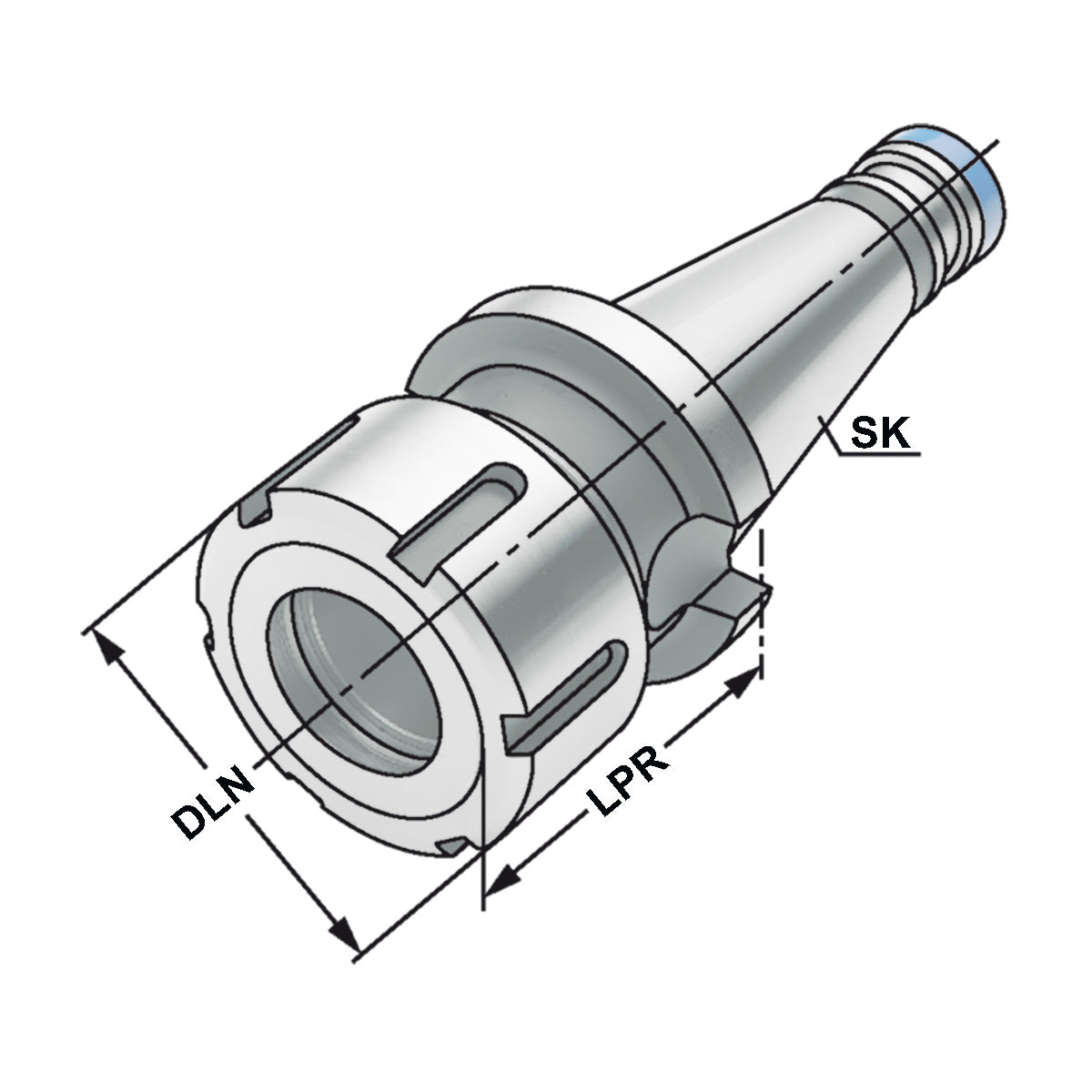

DLN43
LPR50
CNSCAD
SKSK 30
AuswuchtgüteG6,3 | 15.000 1/min
THIDM16 x 2,0
Expected delivery date:
31 Jan Usually ready in 6-7 days.
