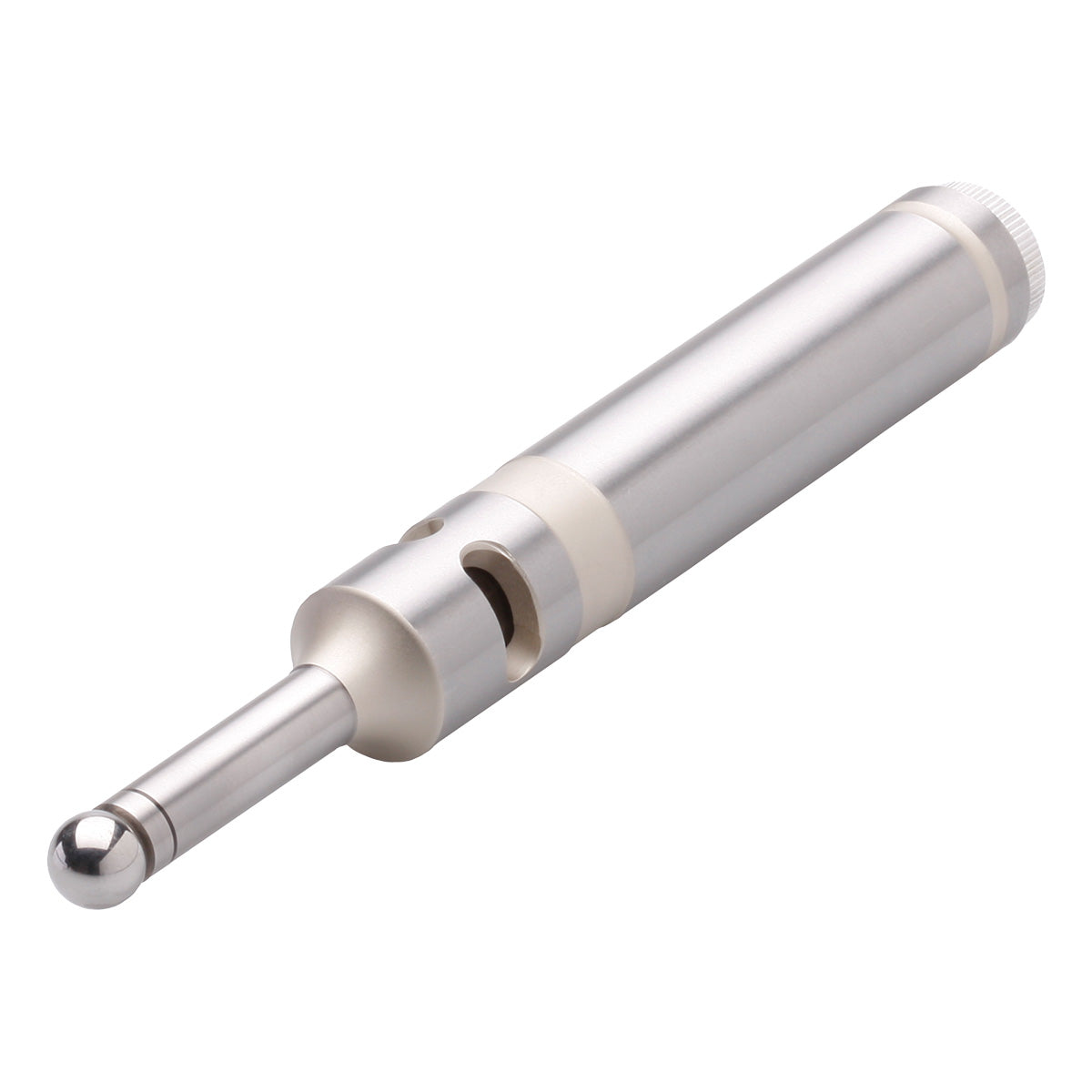

Edge finder electronic 20 - 160 - 10

Application:
Alignment of component reference surfaces or edges. Determination of bore centres to the machine spindle.

Note:
Spring mounted spherical tip protects the unit from damage if contact is too strong. Functional parts hardened and ground. Concentricity: ± 0.01 mm.

Function:
When contact between the spherical tip and metal component occurs, the control lamp lights up = identification of the reference point.

Delivery:
CR2032 3,0V Battery
