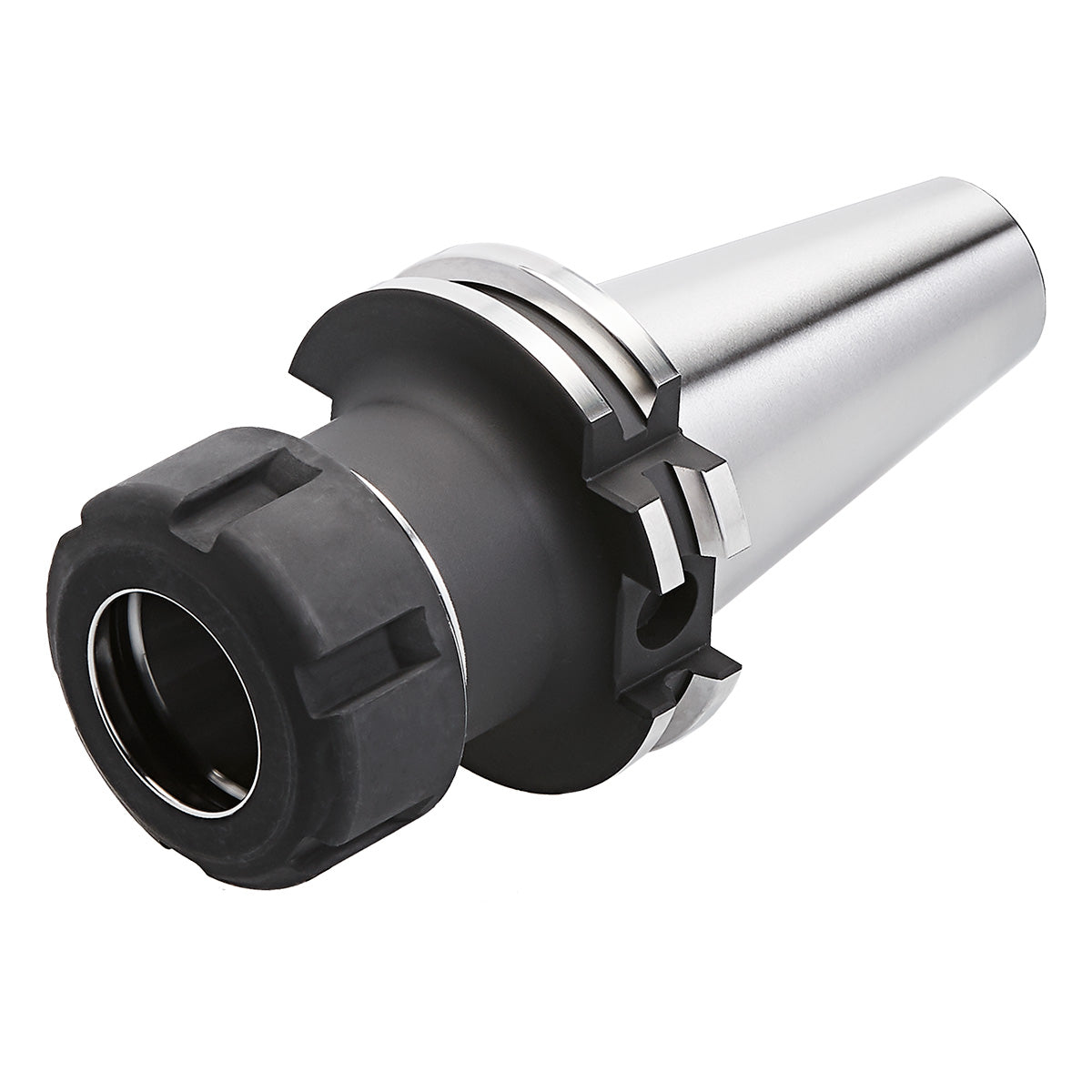

ER-Collet chuck SK 50 - 3/26 - 80 | ER 40

ER-Collet chuck SK 50 - 3/26 - 80 | ER 40

€98.00
€98.00
Tax included. Shipping calculated at checkout.

Product Details

Application:
For mounting straight-shank tools in collets.

Delivery:
With balanced clamping nut

  • All holders are made of forged steel
  • Specific, low warpage hardened
  • Surface hardened HRC 58~60
  • Hardening depth 0,8mm~0,9mm
  • Taper angle tolerance < AT 3 according to DIN 2080
  • Surface roughness Ra < 0,4 µm
  • Tensile strength in the core of min. 800 N/mm² after DIN
  • All functional surfaces fine machined





Specifications
PropertySpecification
DCONWS3 - 26
Typ472E | ER 40
ADINTMSISO 7388-1 (DIN 69871)
ADINTWSISO 15488 (DIN 6499) ER
Rundlauf< 3µm

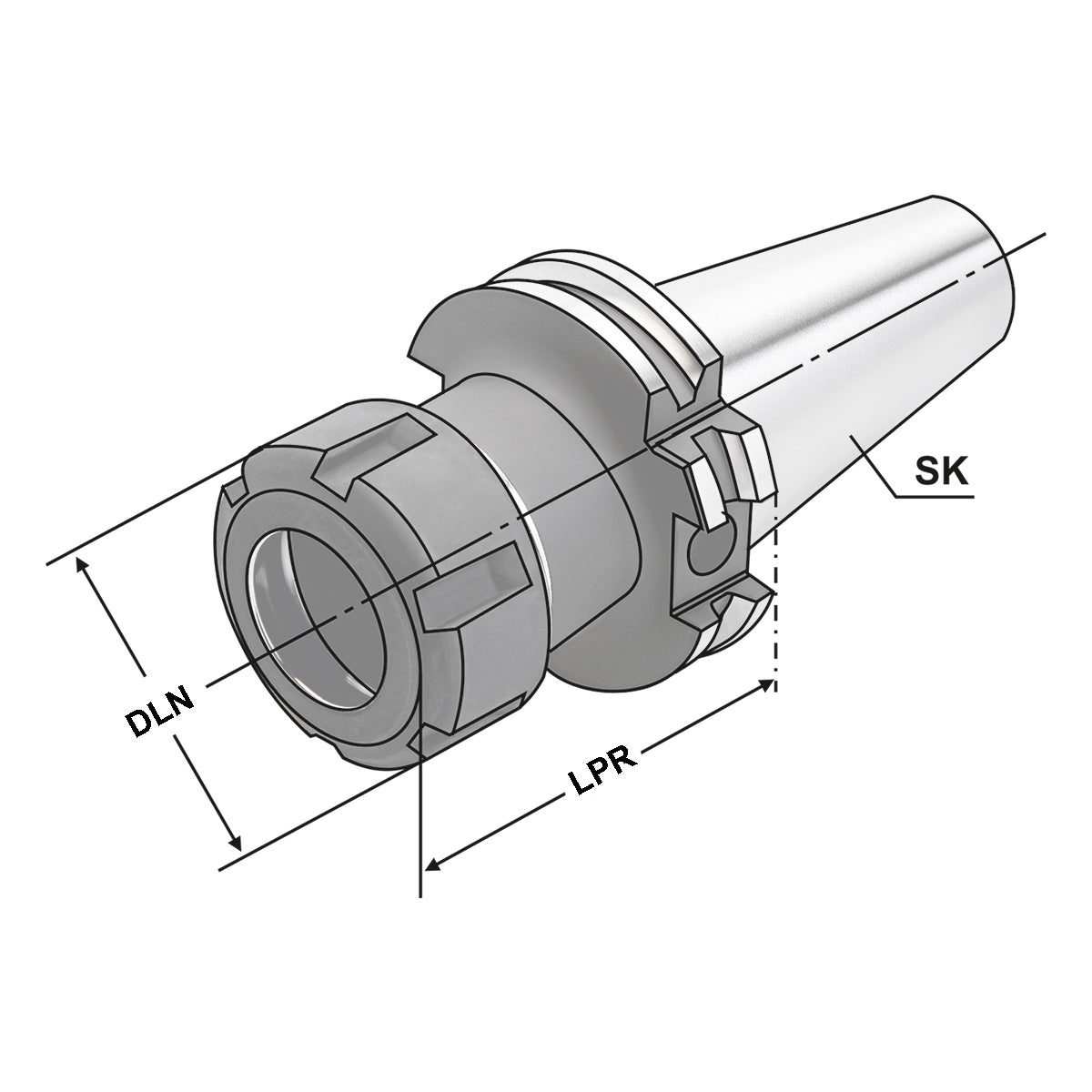

DLN63
LPR80
CNSCAD/AF (AD/B)
SKSK 50
AuswuchtgüteG2,5 | 25.000 1/min
DCPJa
DCPSD10/H4,5
THIDM16 x 2,0
