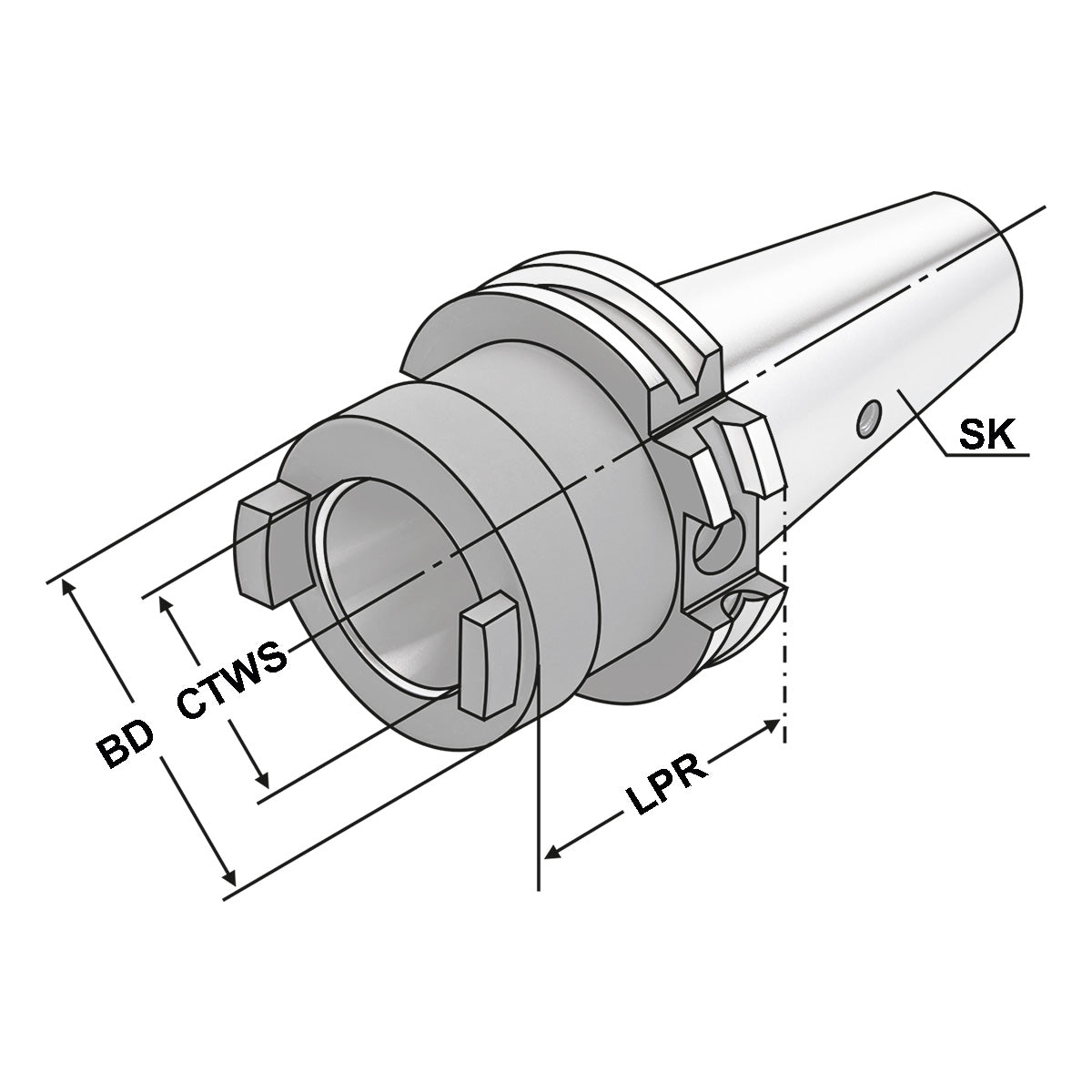

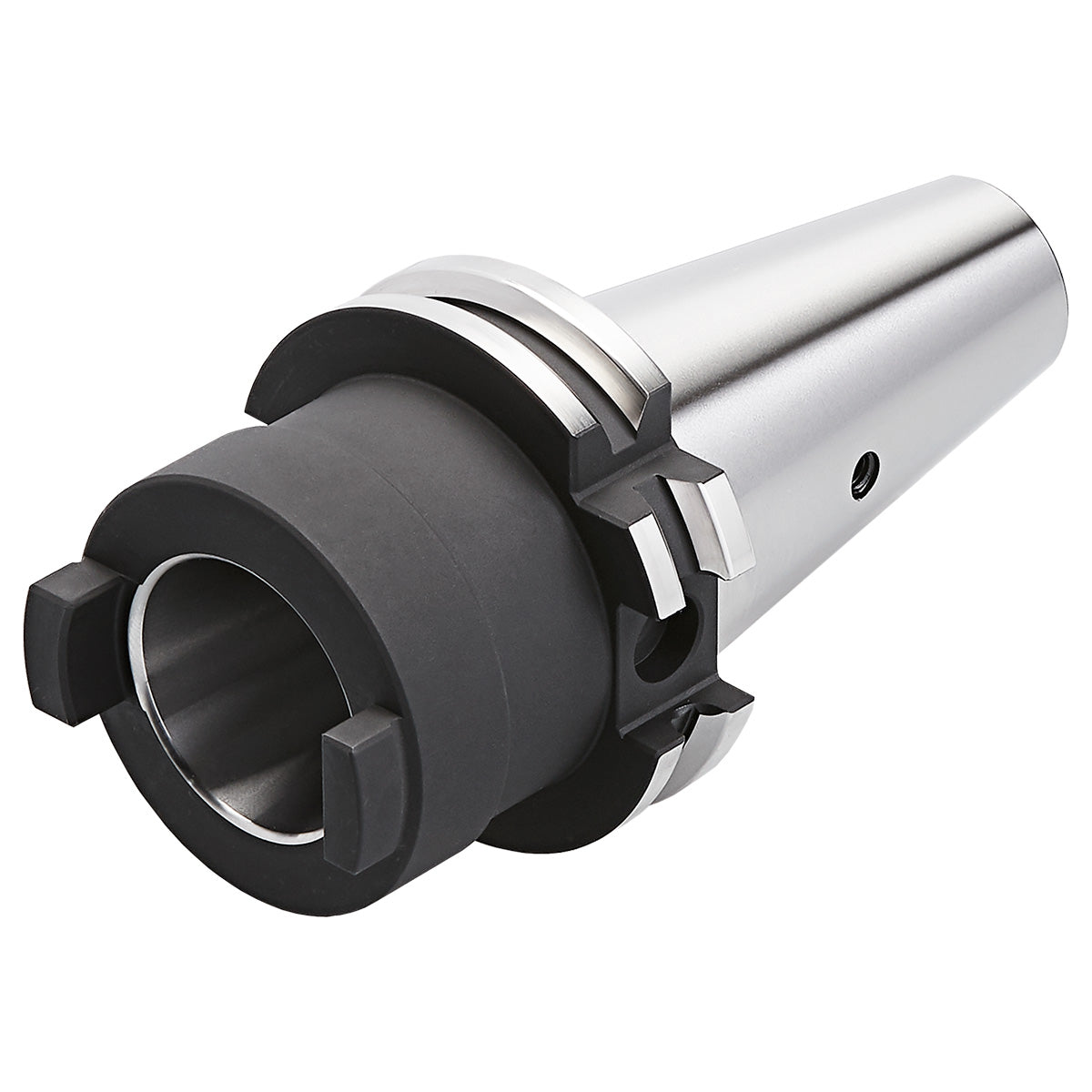

Adapters SK to SK SK 50 - SK 40 - 70

Application:
For holding tapers according to DIN 69871, JIS B 6339 and DIN 2080.

Delivery:
Delivered with a built-in screw for shortened taper tools. Additional screw for DIN 2080 tools included.

• All holders are made of forged steel
• Specific, low warpage hardened
• Surface hardened HRC 58~60
• Hardening depth 0,8mm~0,9mm
• Taper angle tolerance < AT 3 according to DIN 2080
• Surface roughness Ra < 0,4 µm
• Tensile strength in the core of min. 800 N/mm² after DIN
• All functional surfaces fine machined
