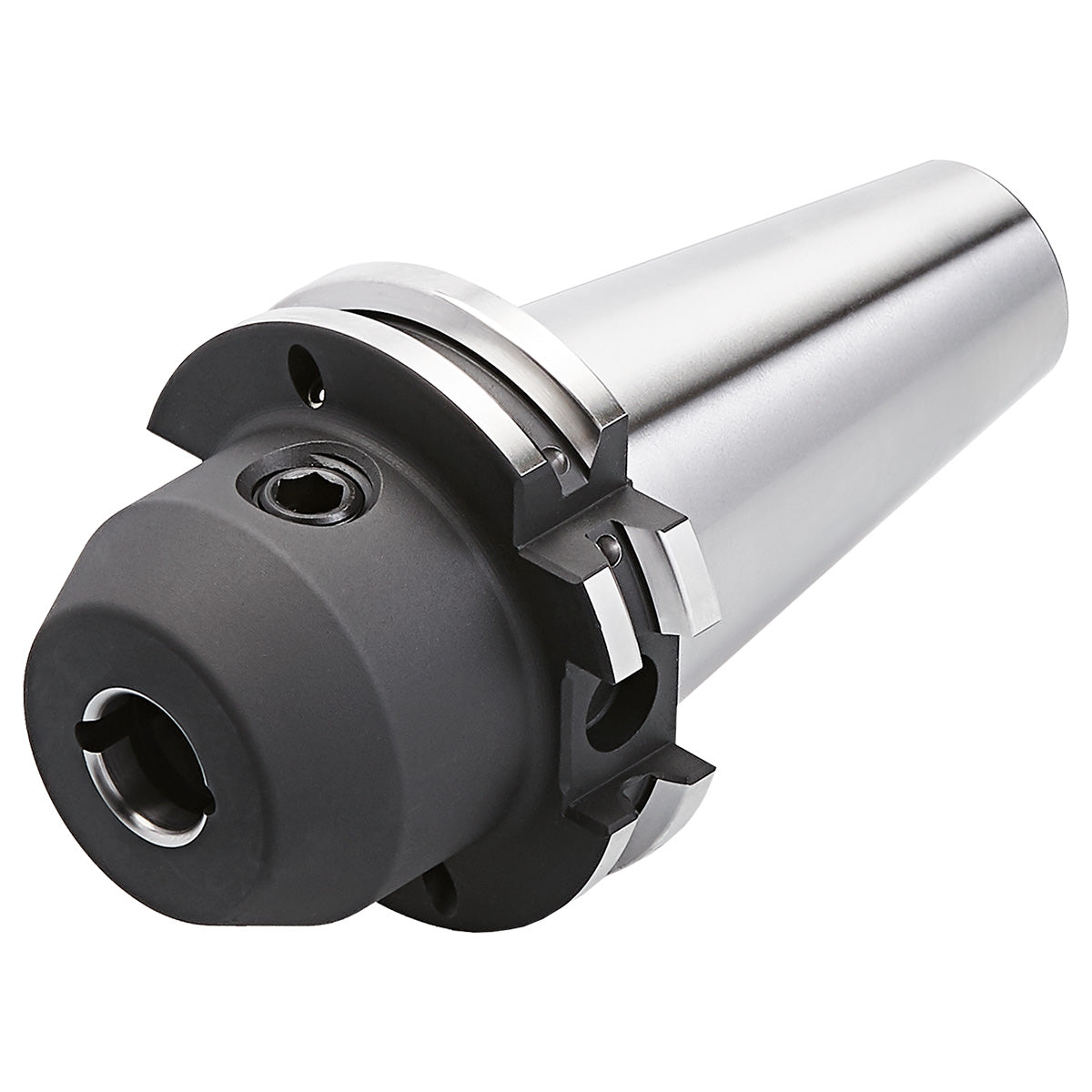

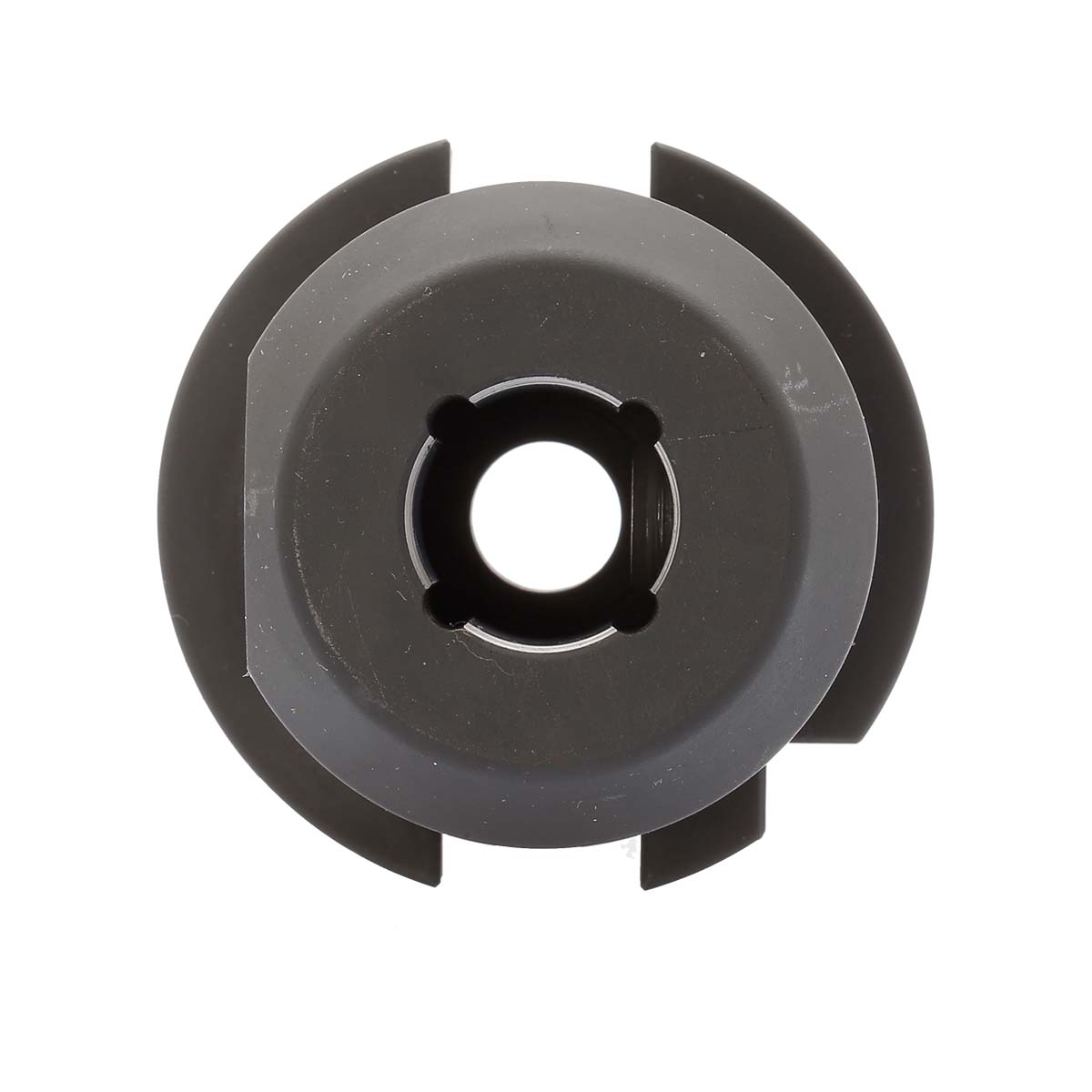

End mill holder Weldon with cooling channels SK 40 - 08 - 50

End mill holder Weldon with cooling channels SK 40 - 08 - 50

€55.00
€55.00
Tax included. Shipping calculated at checkout.

Product Details

Application:
For mounting straight-shank tools with lateral flat according to DIN 1835 form B (Weldon).

Delivery:
With clamping screw and O-ring

  • All holders are made of forged steel
  • Specific, low warpage hardened
  • Surface hardened HRC 58~60
  • Hardening depth 0,8mm~0,9mm
  • Taper angle tolerance < AT 3 according to DIN 2080
  • Surface roughness Ra < 0,4 µm
  • Tensile strength in the core of min. 800 N/mm² after DIN
  • All functional surfaces fine machined

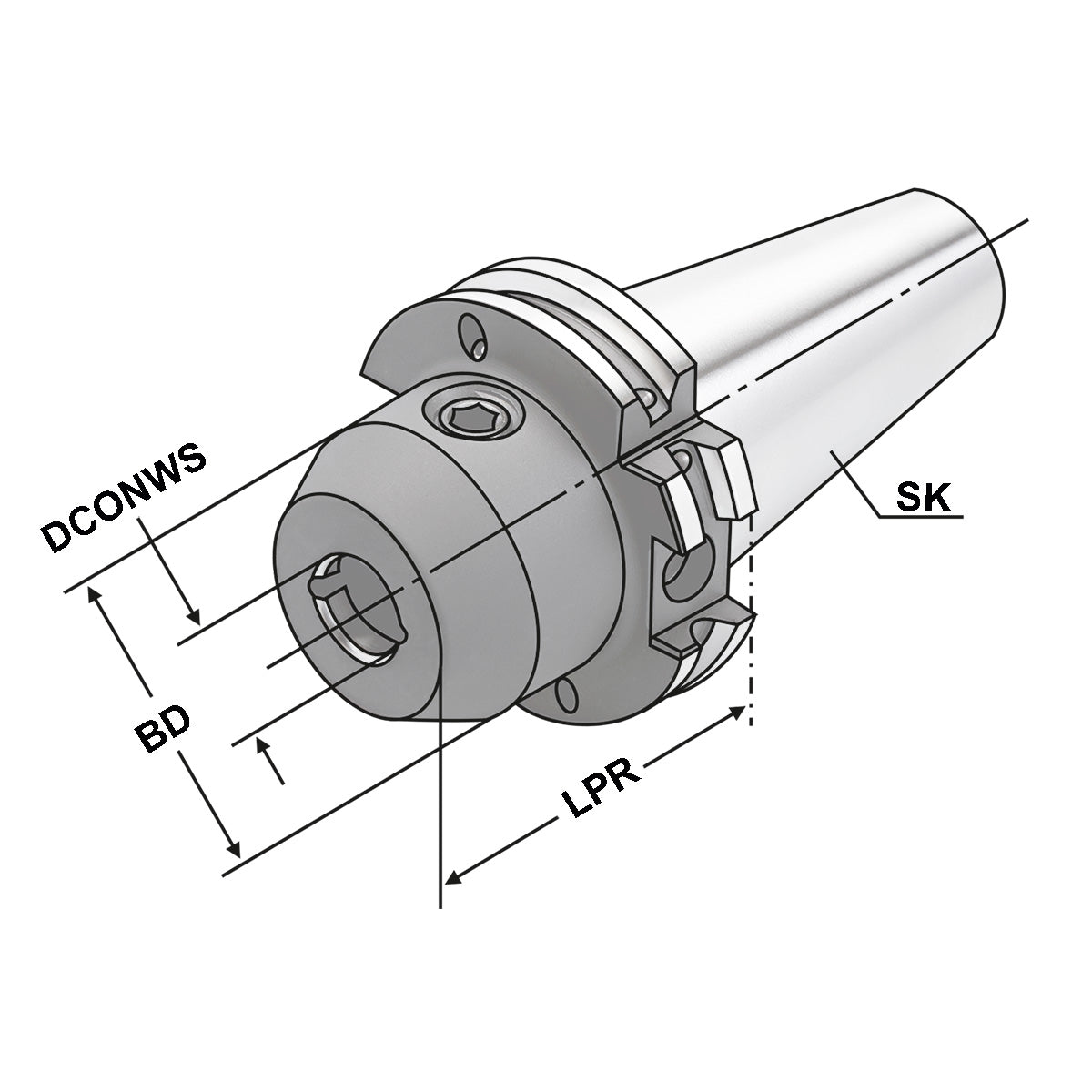

Specifications
PropertySpecification
DCONWS8
BD28
ADINTMSISO 7388-1 (DIN 69871)
ADINTWSDIN 6359 (Weldon)
Rundlauf< 3µm
TDCONH4
LPR50
CNSCAD/AF (AD/B)
SKSK 40
AuswuchtgüteG2,5 | 25.000 1/min
DCPJa
DCPSD10/H4,5
CXSCKühlmittelnuten
Expected delivery date:
10 Sep Usually ready in 6-7 days.
