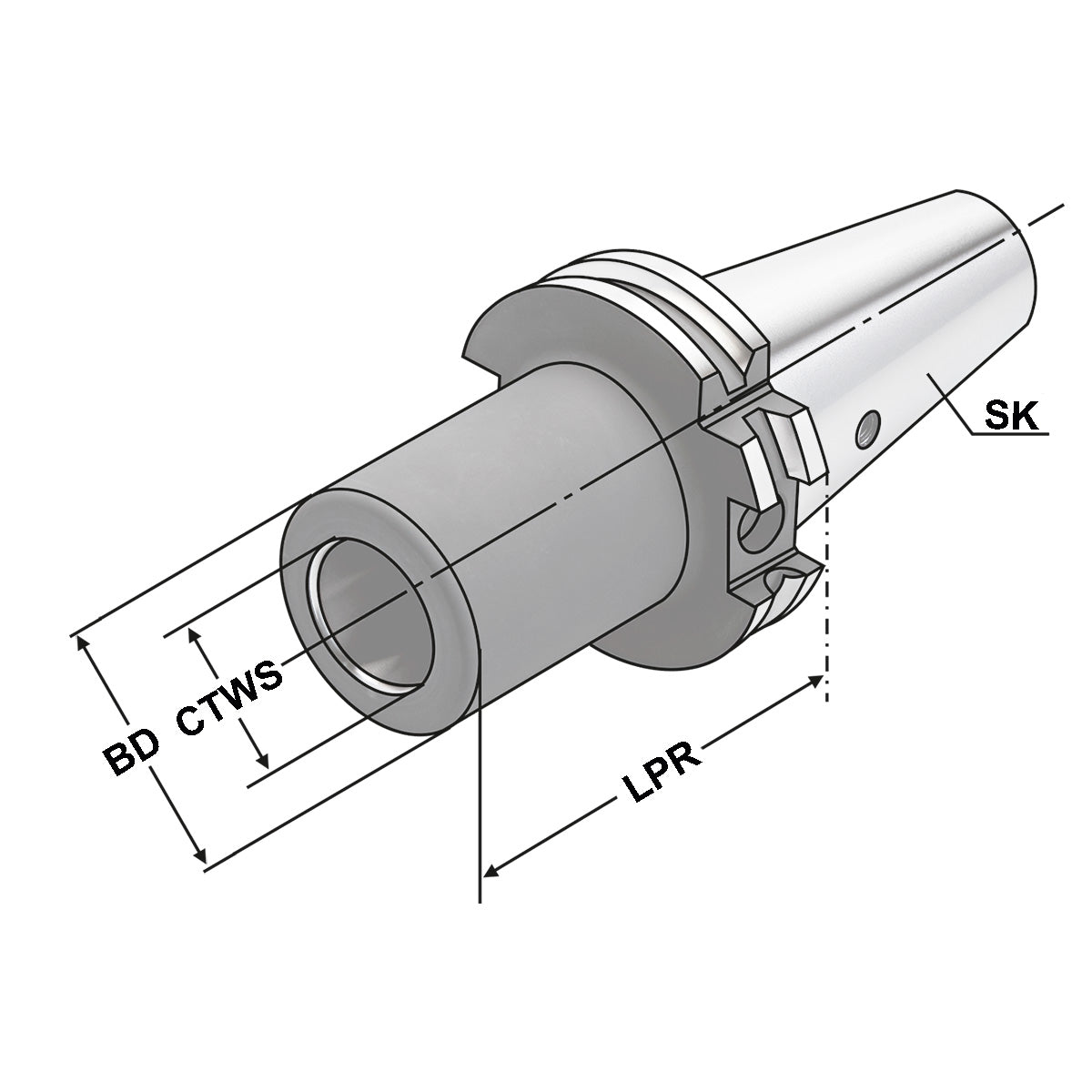

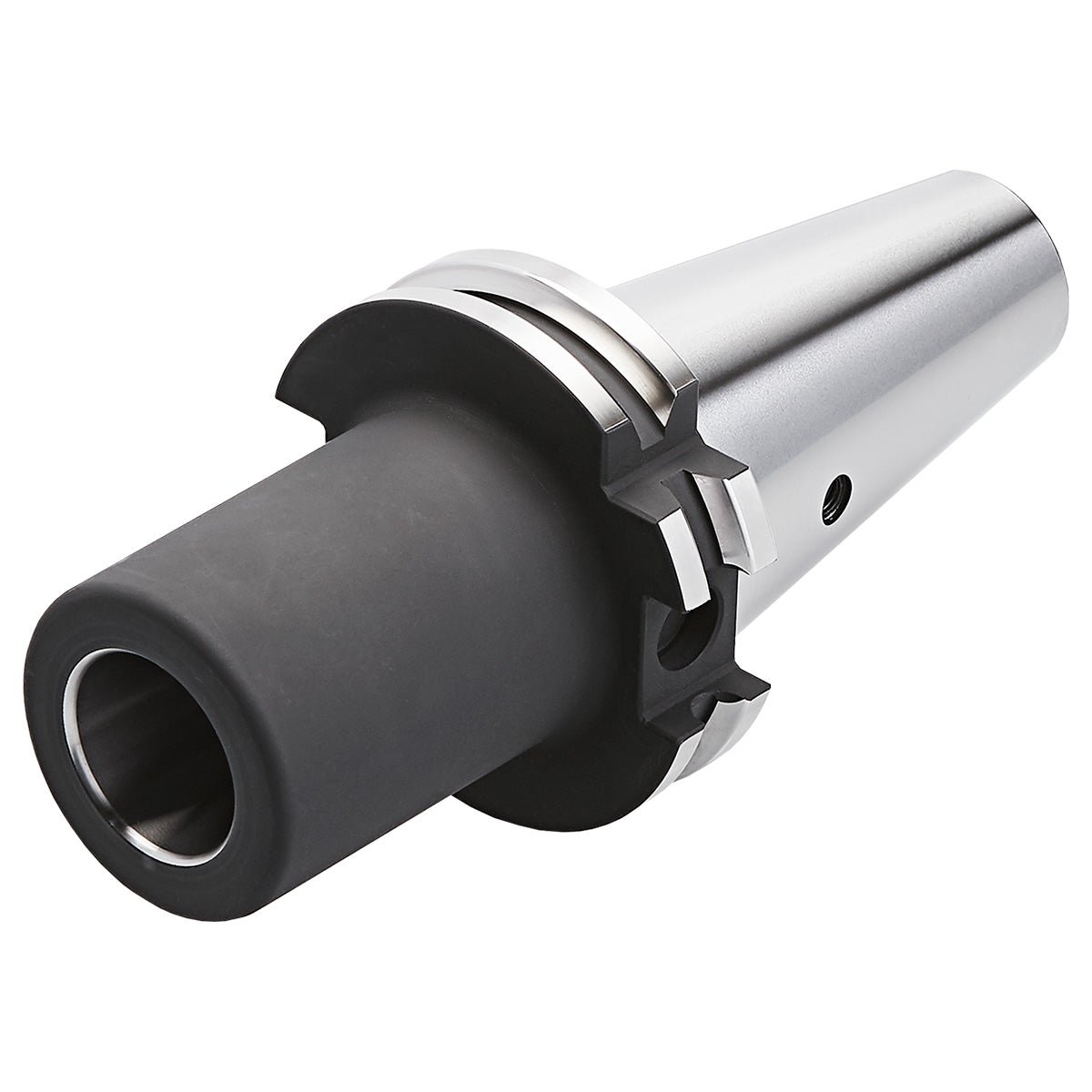

Morse taper adaptor SK 40 - 4 - 110

Application:
For clamping tools with Morse taper shank and thread according to DIN 228-1 form A.

Delivery:
With built-in tightening bolt

• All holders are made of forged steel
• Specific, low warpage hardened
• Surface hardened HRC 58~60
• Hardening depth 0,8mm~0,9mm
• Taper angle tolerance < AT 3 according to DIN 2080
• Surface roughness Ra < 0,4 µm
• Tensile strength in the core of min. 800 N/mm² after DIN
• All functional surfaces fine machined
