  • Drill chuck adaptor DIN 238 SK 40 - B 12
  • Drill chuck adaptor DIN 238 SK 40 - B 12
1 2

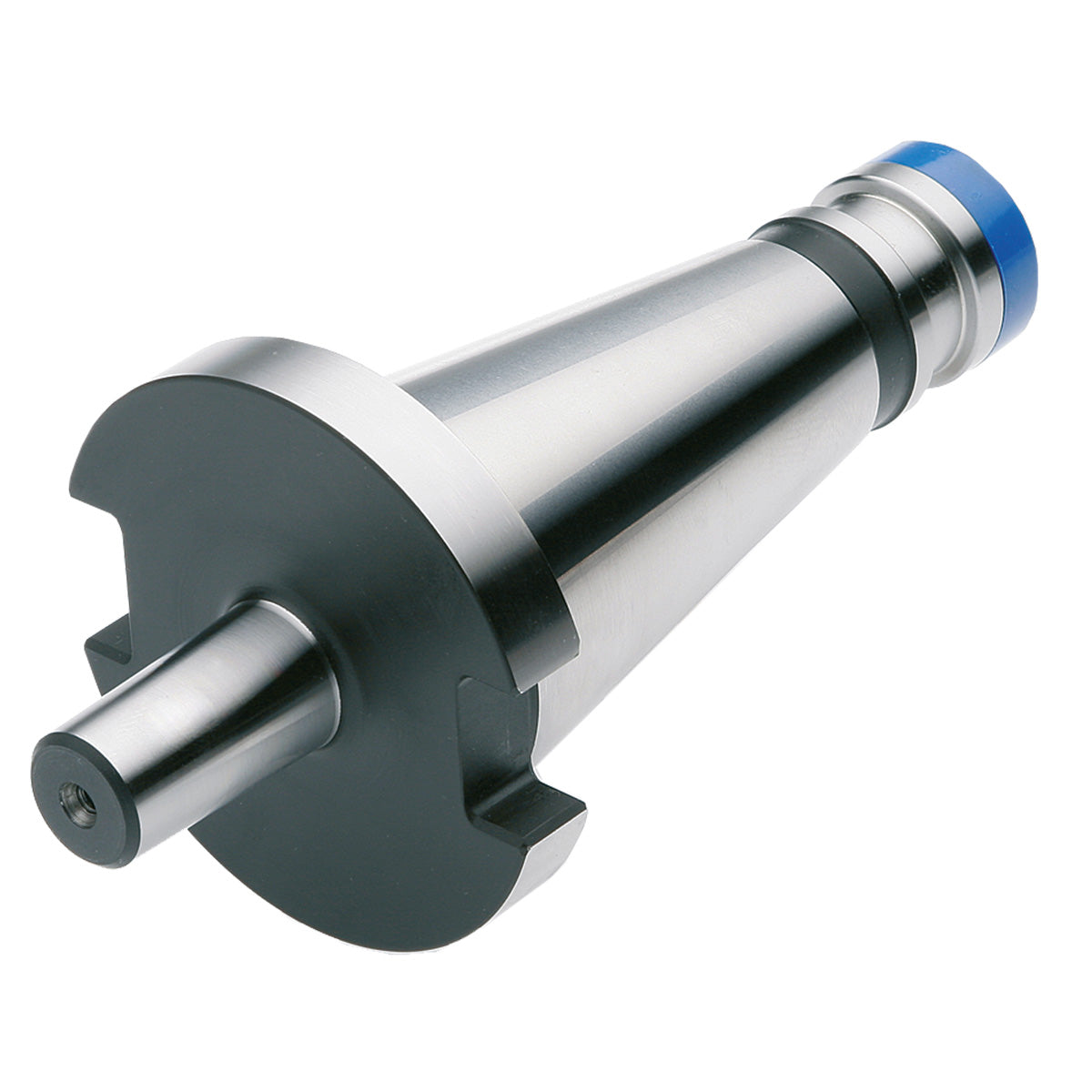

Drill chuck adaptor DIN 238 SK 40 - B 12

Drill chuck adaptor DIN 238 SK 40 - B 12

€52.00
€52.00
Tax included. Shipping calculated at checkout.

Product Details

Application:
For mounting drill chucks.

Delivery:

  • All holders are made of forged steel
  • Specific, low warpage hardened
  • Surface hardened HRC 58~60
  • Hardening depth 0,8mm~0,9mm
  • Taper angle tolerance < AT 3 according to DIN 2080
  • Surface roughness Ra < 0,4 µm
  • Tensile strength in the core of min. 800 N/mm² after DIN
  • All functional surfaces fine machined

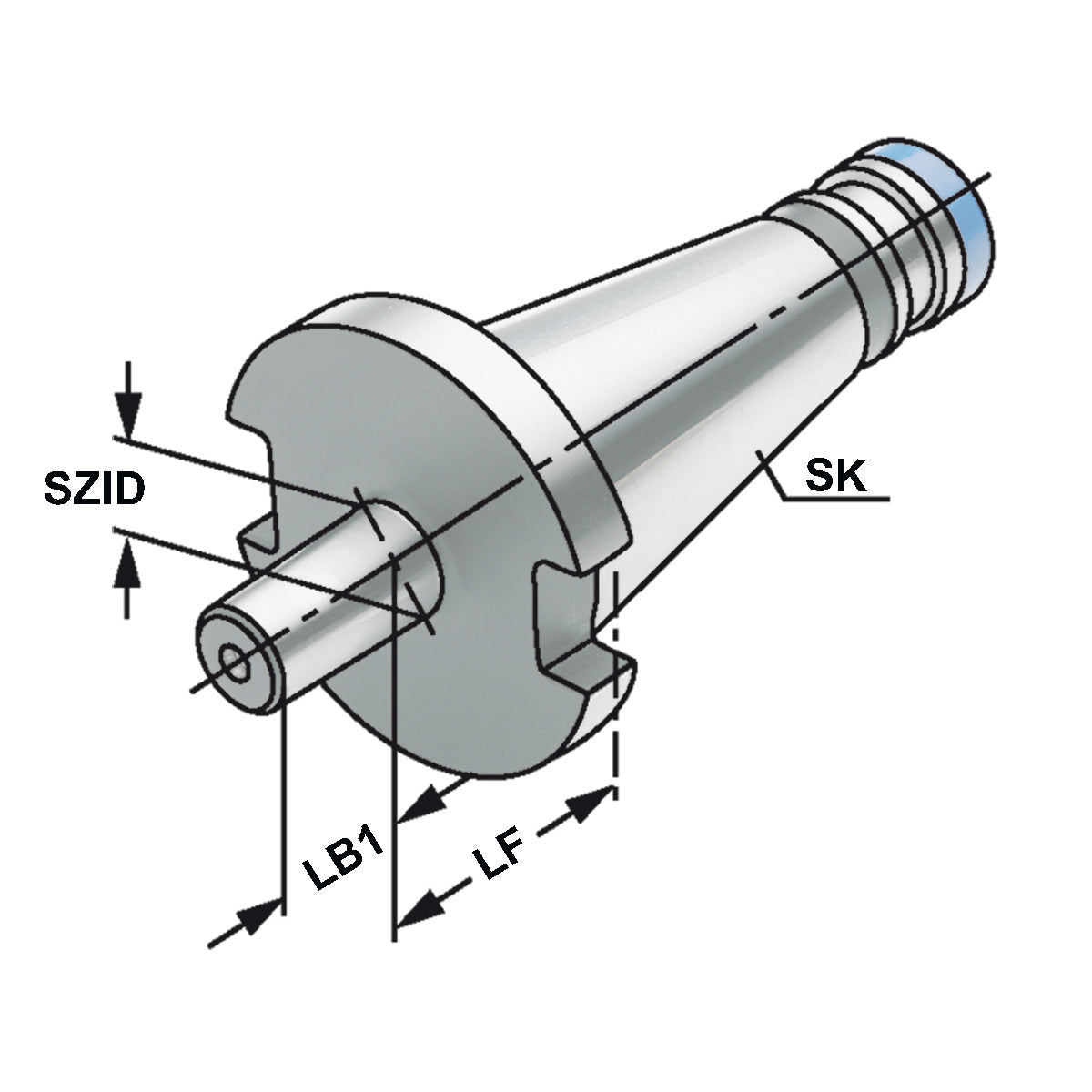

Specifications
PropertySpecification
ADINTMSDIN 2080
ADINTWSBohrfutteraufnahmen DIN 238
Rundlauf< 5µm
LF15
SZIDB12
CNSCA
SKSK 40
AuswuchtgüteG6,3 | 15.000 1/min
LB118,5
Expected delivery date:
10 Sep Usually ready in 6-7 days.
