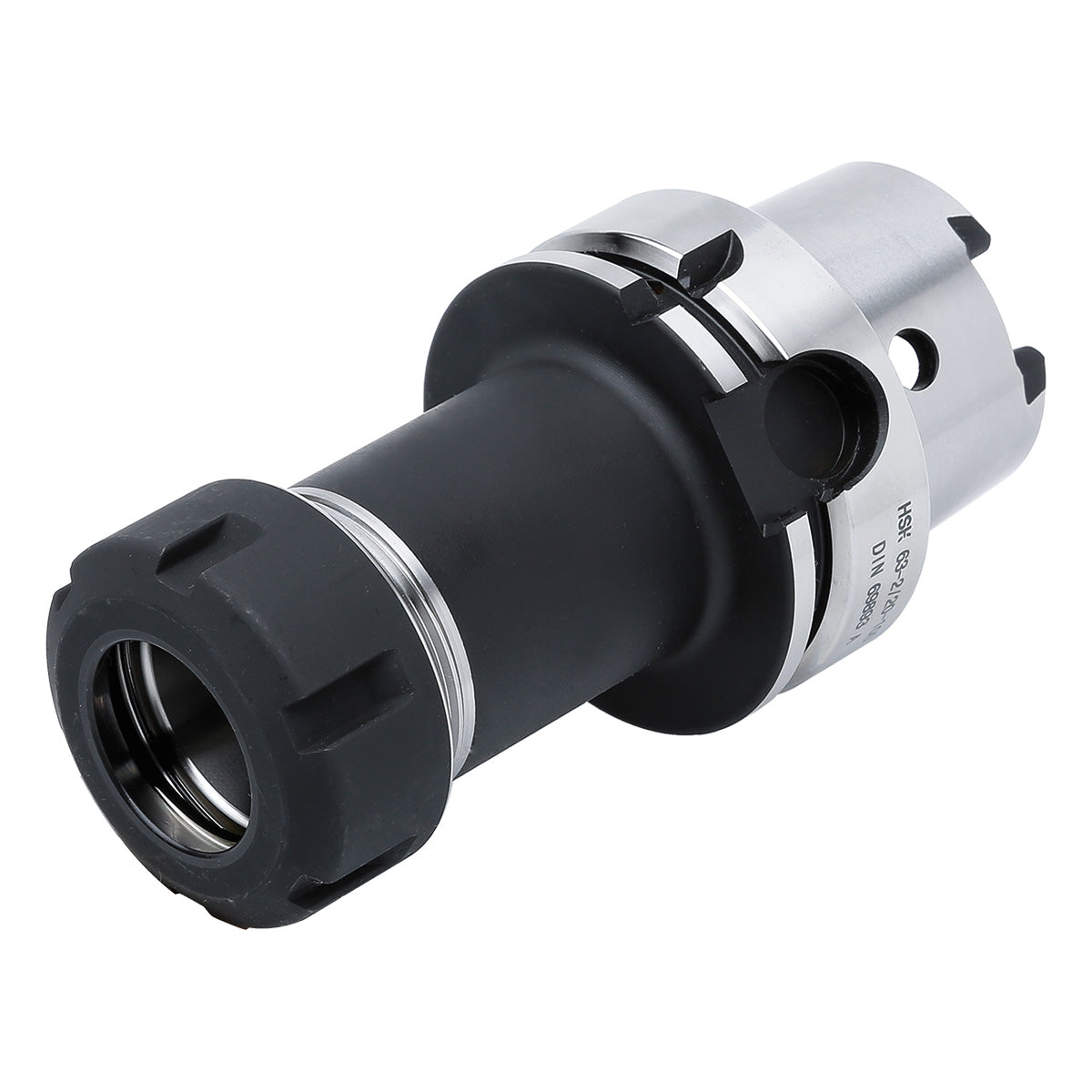

ER-Collet chuck HSK 63 - 2/20 - 100 | ER 32

ER-Collet chuck HSK 63 - 2/20 - 100 | ER 32

€107.00
€107.00
Tax included. Shipping calculated at checkout.

Product Details

Application:
For mounting straight-shank tools in collets.

Delivery:
With balanced clamping nut

  • All holders are made of forged steel
  • Specific, low warpage hardened
  • Surface hardened HRC 58~60
  • Hardening depth 0,8mm~0,9mm
  • Taper angle tolerance < AT 3 according to DIN 2080
  • Surface roughness Ra < 0,4 µm
  • Tensile strength in the core of min. 800 N/mm² after DIN
  • All functional surfaces fine machined





Specifications
PropertySpecification
DCONWS2 - 20
Typ470E | ER 32
ADINTMSISO 12164 (HSK-A)
ADINTWSISO 15488 (DIN 6499) ER

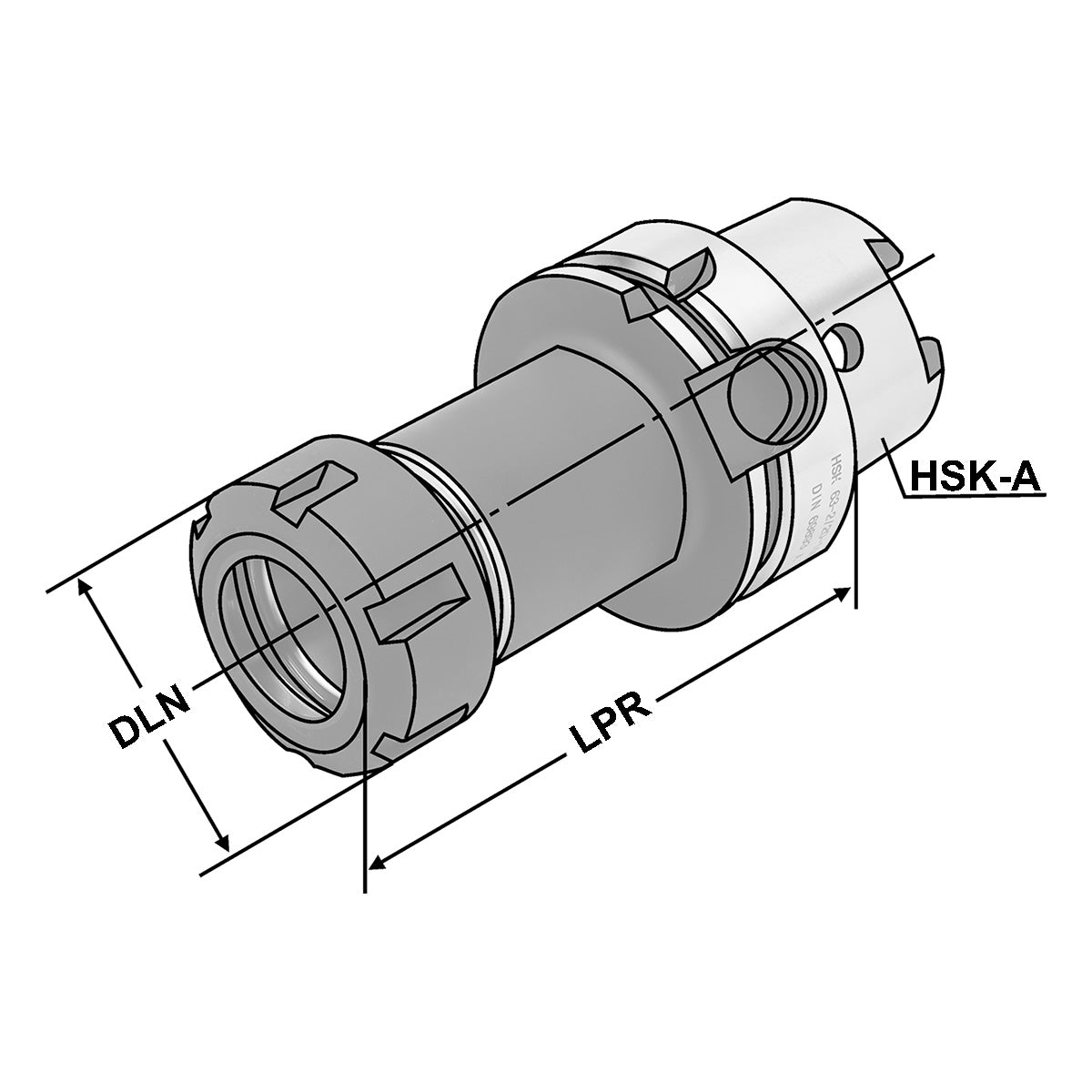

DLN50
LPR100
AuswuchtgüteG2,5 | 25.000 1/min
DCPJa
DCPSD10/H4,5
THIDM16 x 2,0
HSKHSK-A 63
max. Rundlaufabweichung< 3µm
Expected delivery date:
10 Sep Usually ready in 6-7 days.
