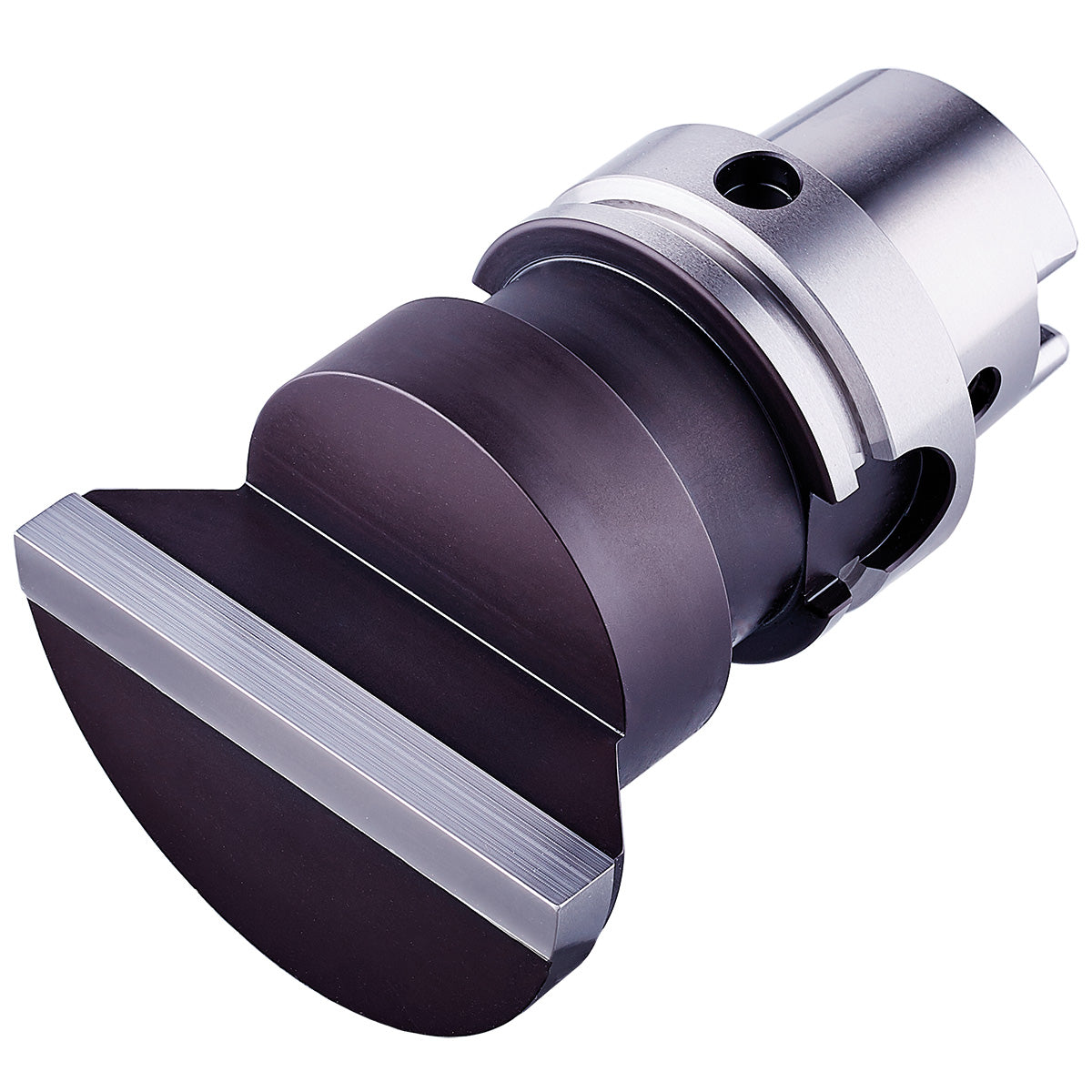

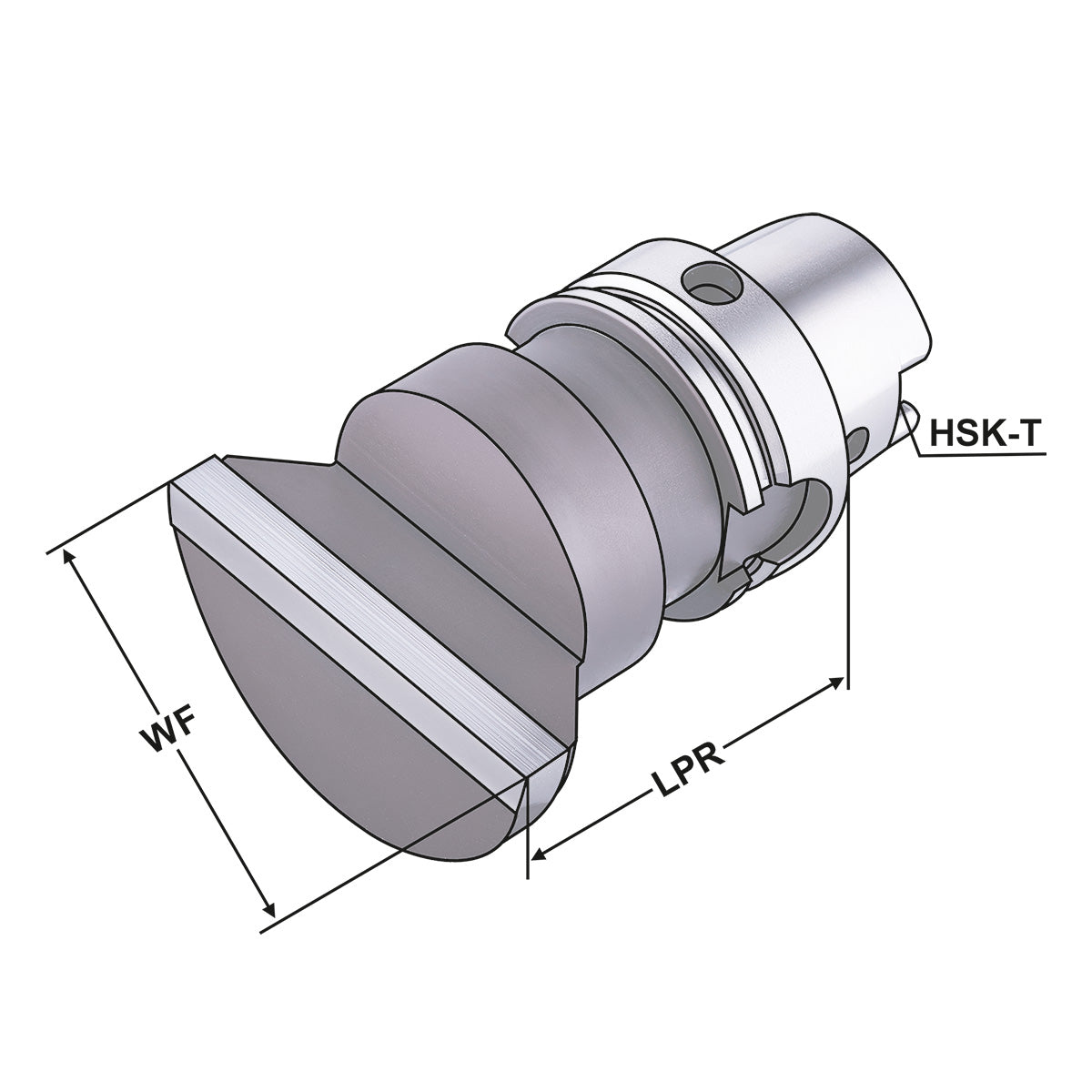

Setting holder HSK 63 - 90 - 90

Application:
Calibration of the angular position of spindles of milling-turning centres.

Application:
- Checking and setting the rotation angle position of machine spindles (M19 function - spindle stop in defi ned end position).
- Determining the reference points (calibration) of optical presetting devices
- Calibration of the angular position of spindles of milling-turning centres
- Calibrating the accuracy of the turret recordings of CNC lathes
- Setting the rotary table zero point of 5-axis machining centres
Accuracy:
- Alignment surface ± 0.01mm to the centre axis
- Parallelism to driver grooves < 0.01 mm

Delivery:
Delivery with test certificate
