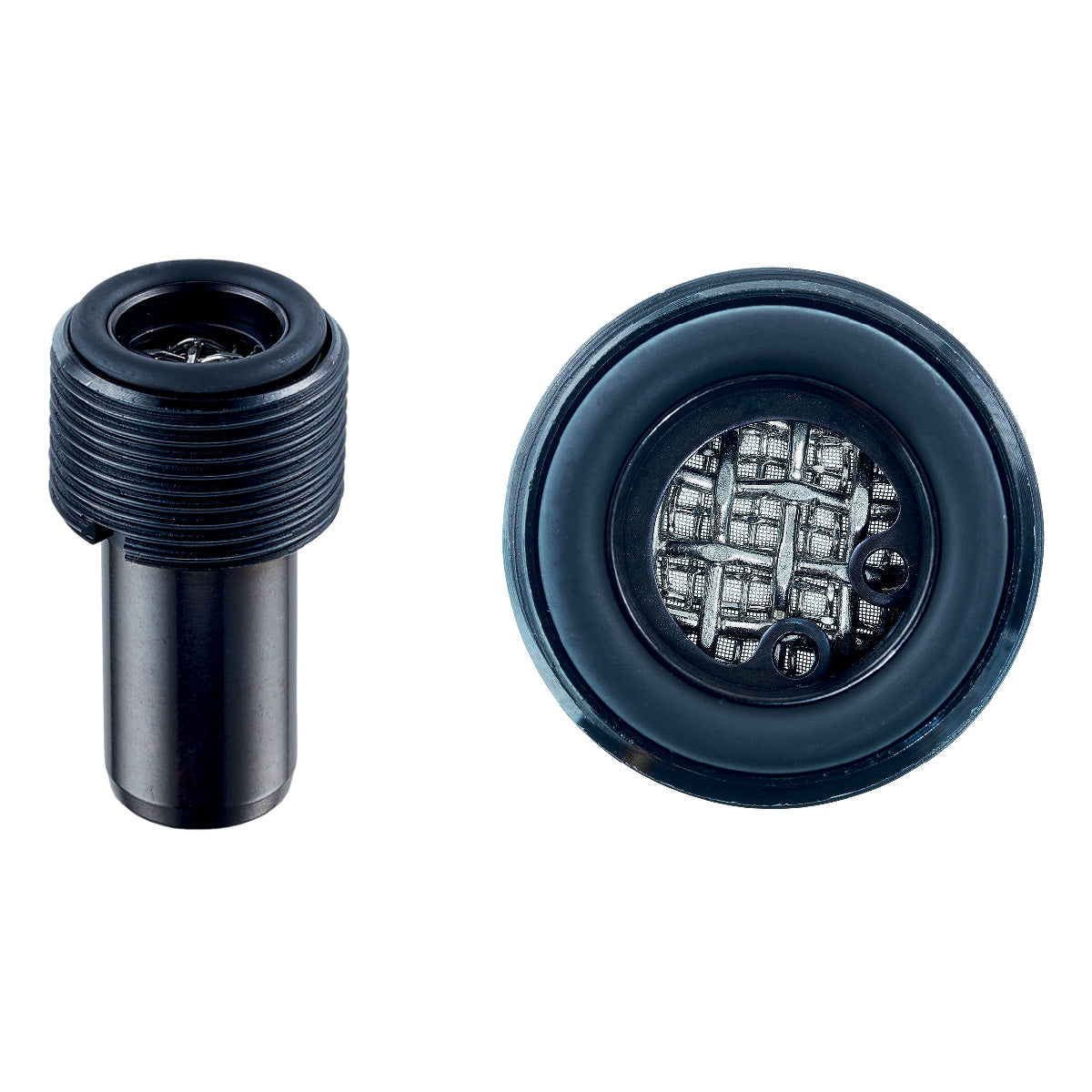

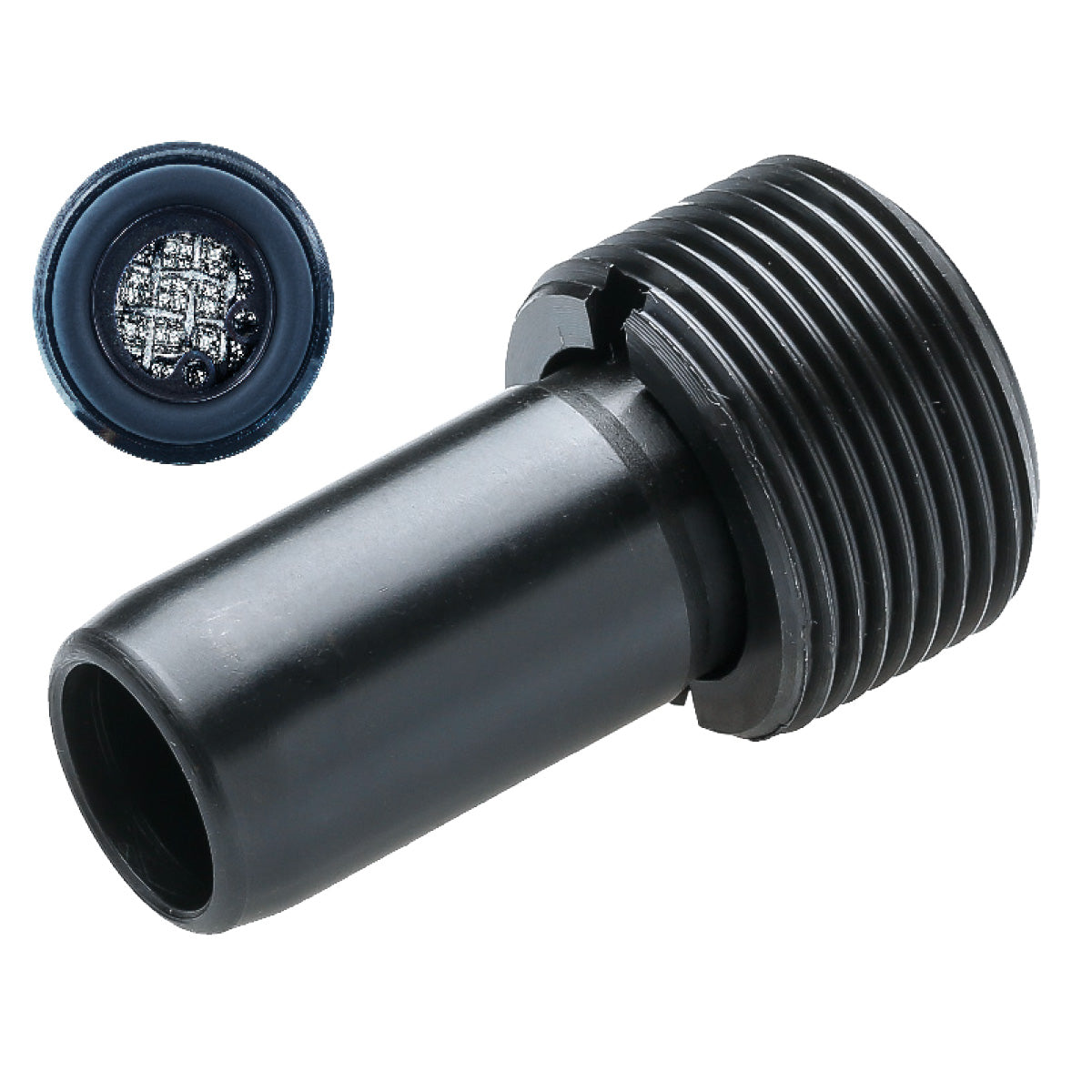

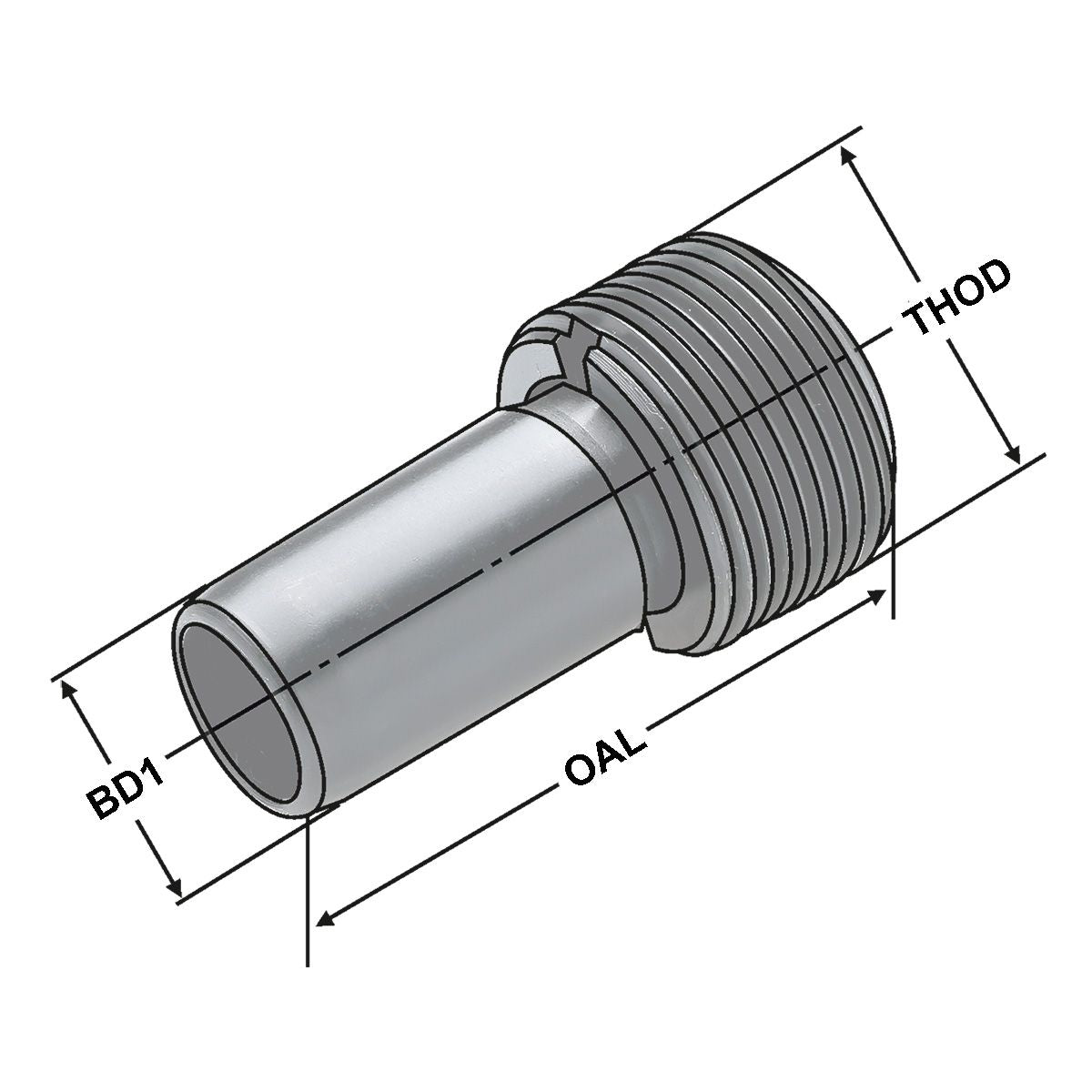

Coolant tube HSK 100

Application:
For the coolant supply through the centre of  HSK toolholders.

Note:
- With filter for dirt particle-free cooling
- 100µ stainless steel mesh filter
- According to DIN 69895 for HSK-A and HSK-E hollow taper shanks
- Axial sealed with two O-rings
- Tightness of the screw connection tested up to 80 bar
- After mounting, the coolant tube can be moved only to a minimum degree according to DIN (±1°)
