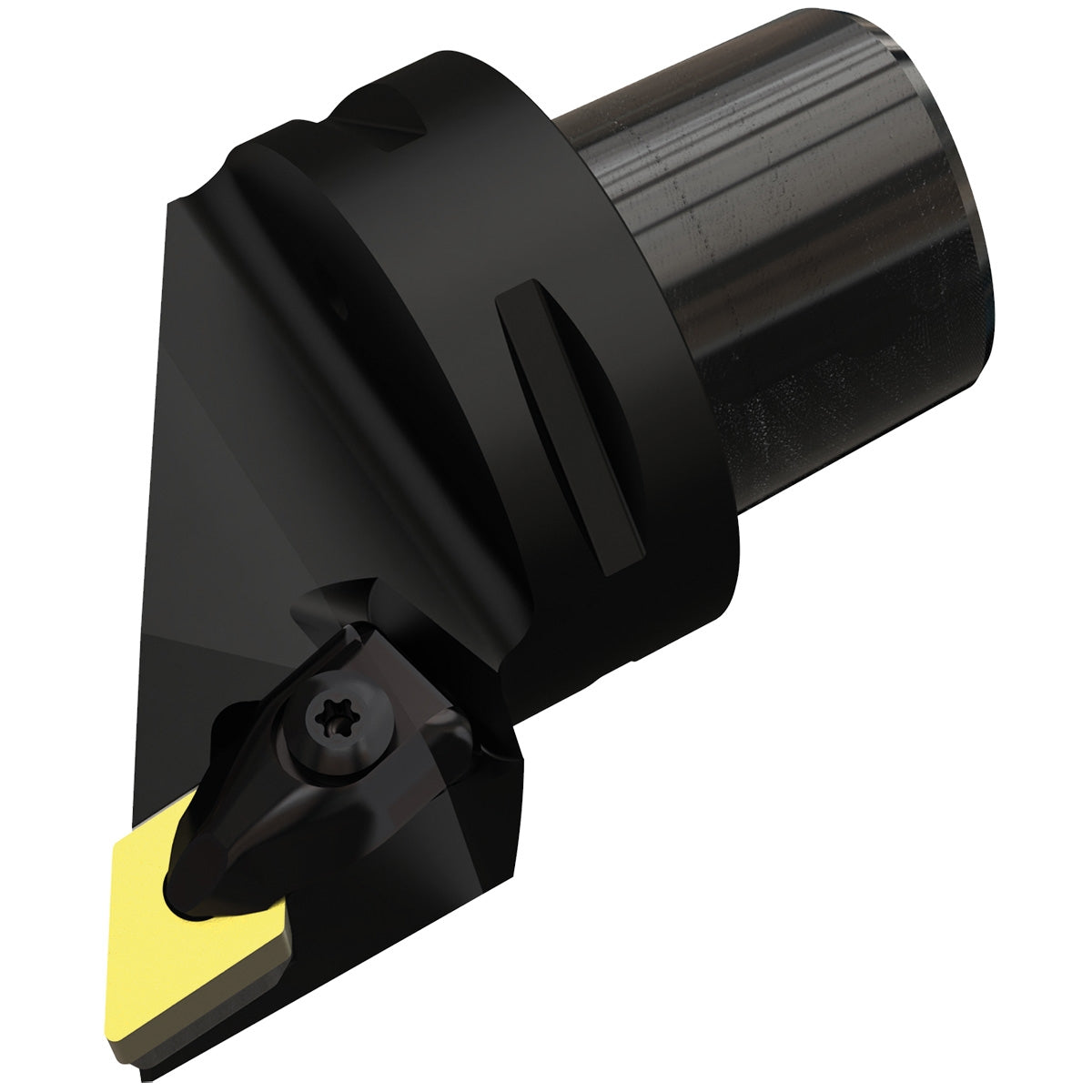

External turning tool 93° DN..15 PSC63-DDJNR-45065-15

External turning tool 93° DN..15 PSC63-DDJNR-45065-15

€311.00
€311.00
Tax included. Shipping calculated at checkout.

Product Details
Specifications

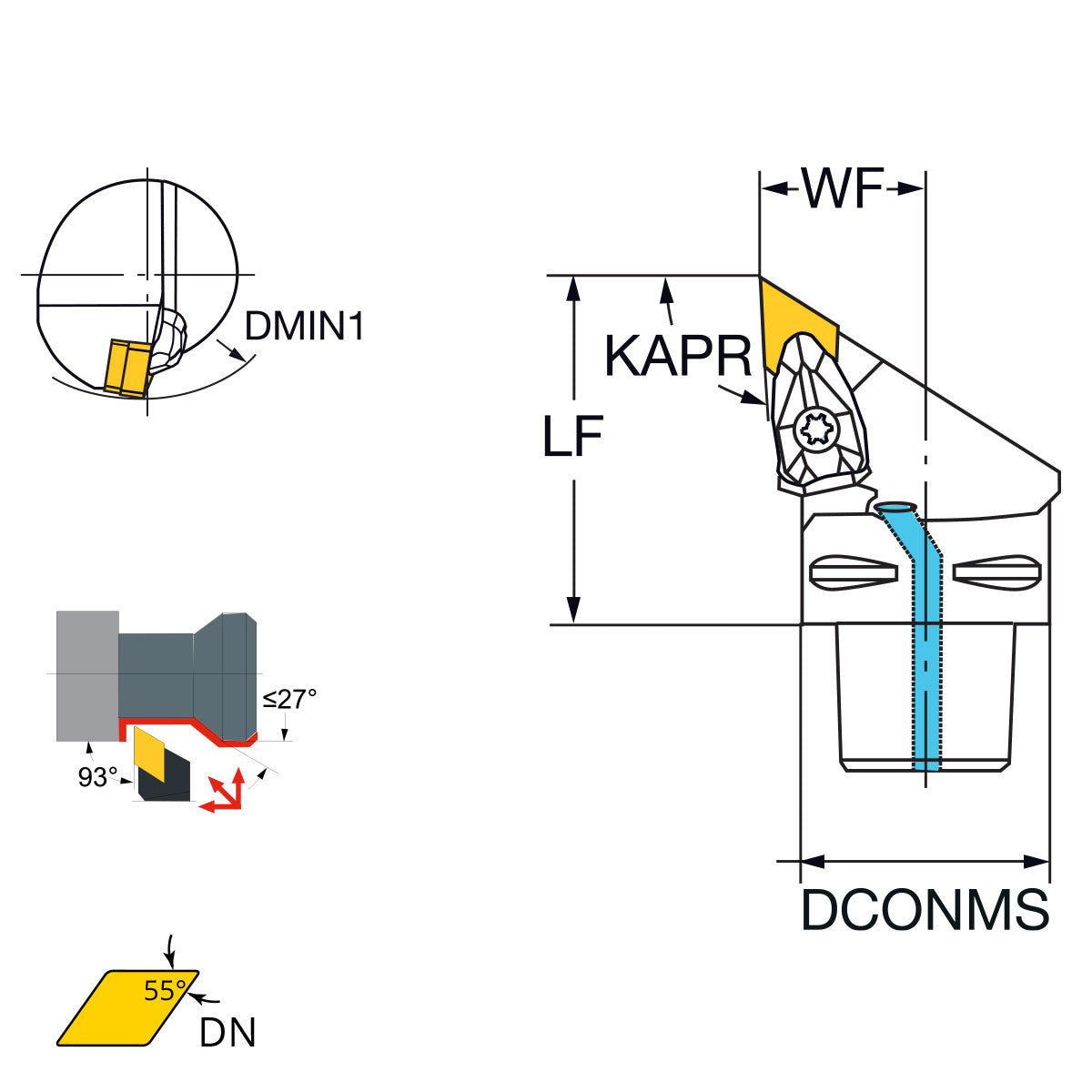

PropertySpecification
CP40 bar
ADINTMSCCS - Polygonschaftkegel
DCONMS63 mm
HANDR
LF65 mm
HF0 mm
CNSC3: axial concentric and radial entry
WF45 mm
CXSC6: decentral exit with nozzles, adjustab
KAPR93 deg
MTPD: clamp on top of insert and into hole
BAMS0 deg
BAWS0 deg
PSIR-3 deg
RMPX27 deg
CUTINT_MASTERDNMG 150608
MIIDDNMG 15 06 08
DMIN1110 mm
LAMS-7 deg
OHX65 mm
TQ3,9 Nm
DMIN2190 mm
