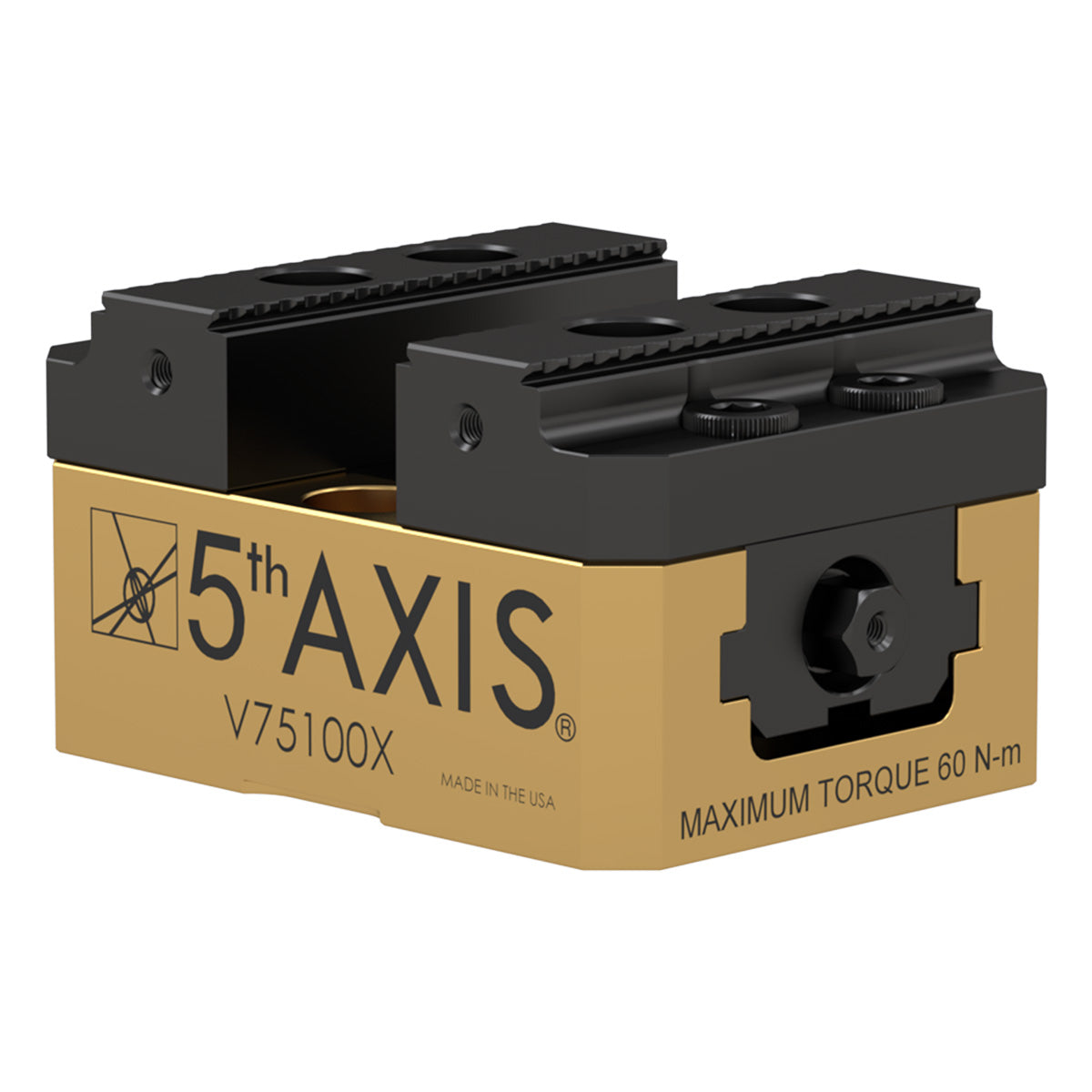

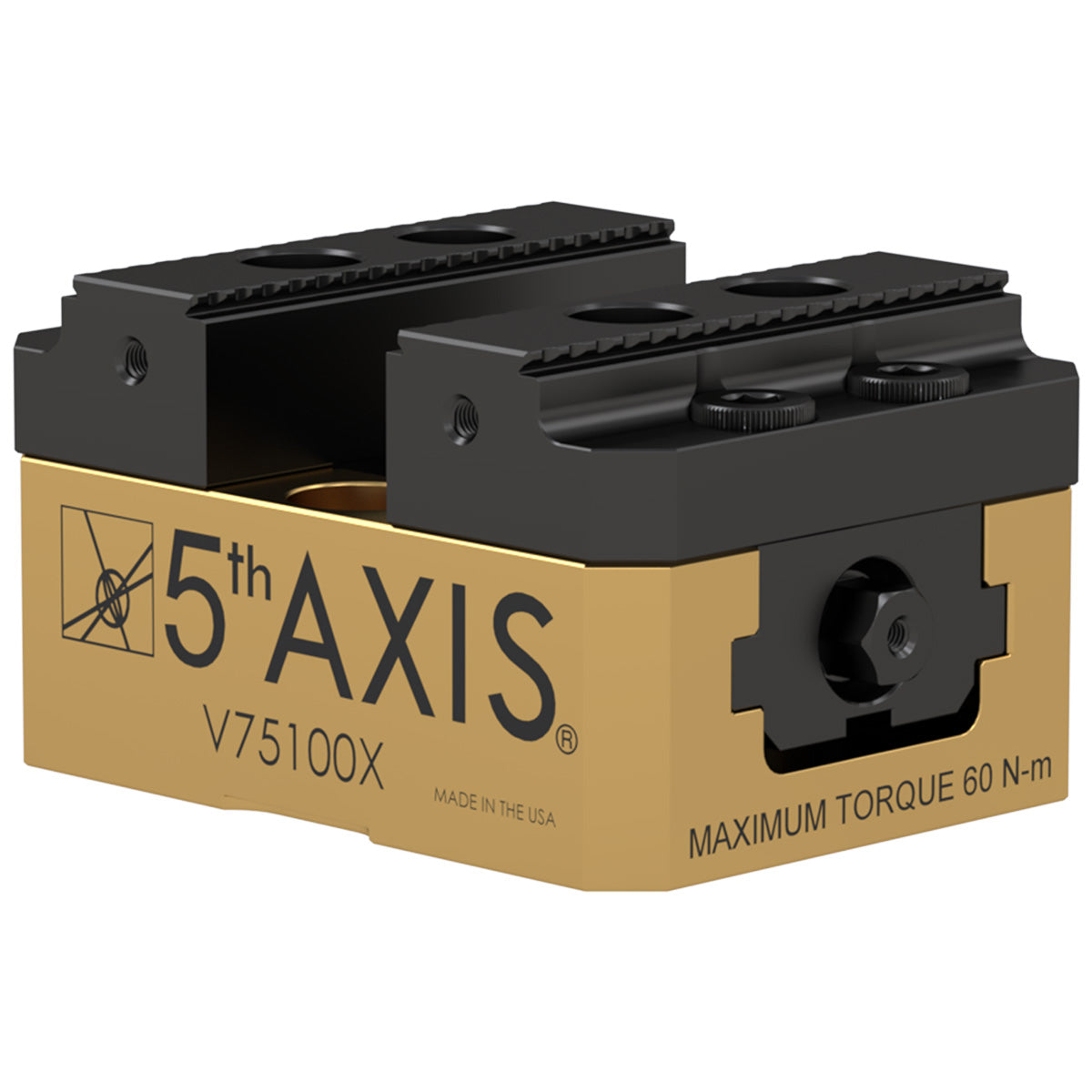

Self-Centering Vise 75mm x 100mm x 56mm

- Compact Self-Centering Vise

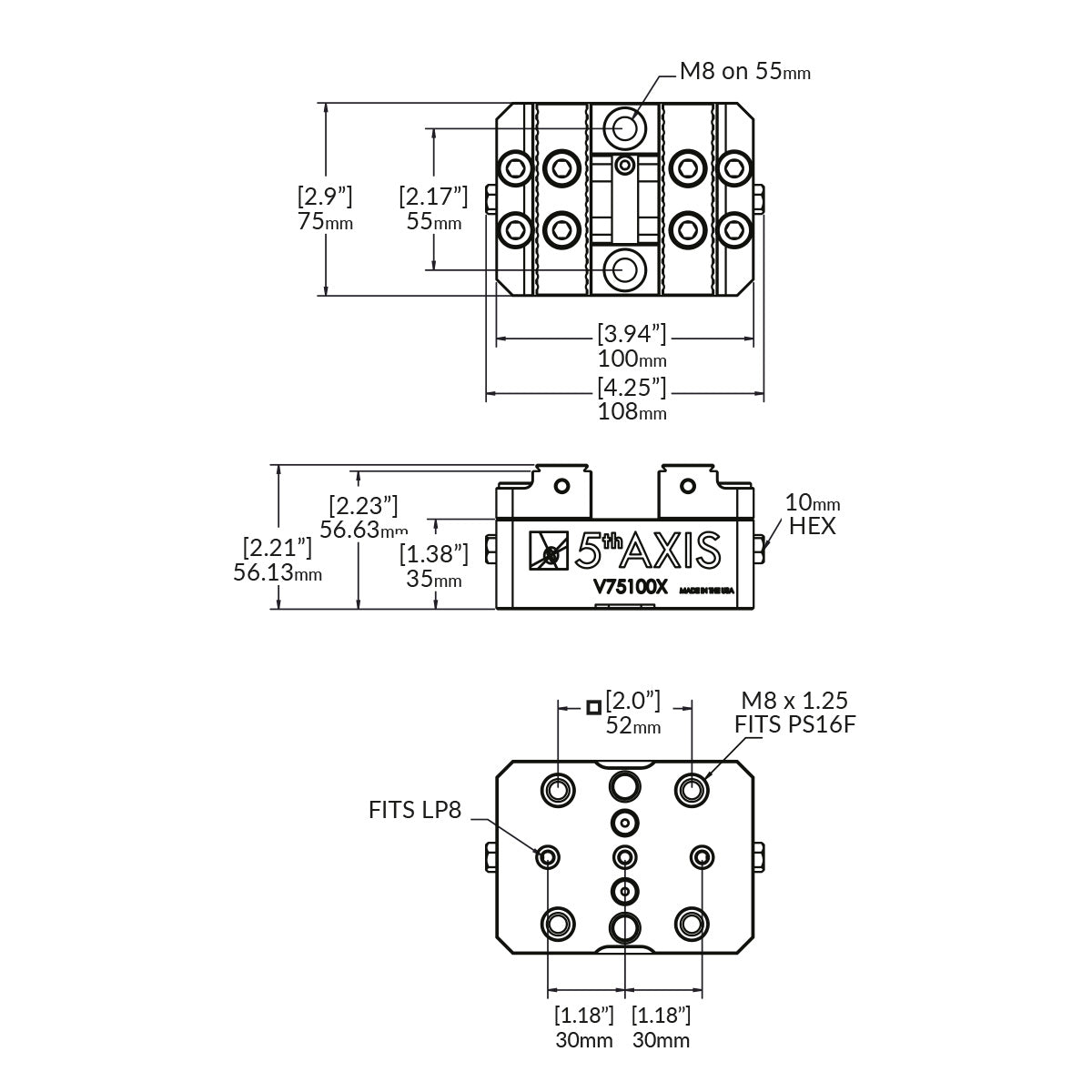

- Size: 75mm x 100mm x 56mm
- 4 bolt jaw mounting to reduce jaw lift
- Reversible / Quick change jaws
- 45° dovetail built into hard jaw
- Jaw Width: 75mm
- Clamping Force: 22,0 kN @ 60 Nm
- Max Torque: 60 Nm
- Clamping Range (Jaws Forward): 0 - 40,3mm
- Clamping Range (Jaws Reversed): 38,5mm - 76,3mm
- Zero-point pitch = 52mm
- Diameter of clamping studs = 16mm (PS16F)
