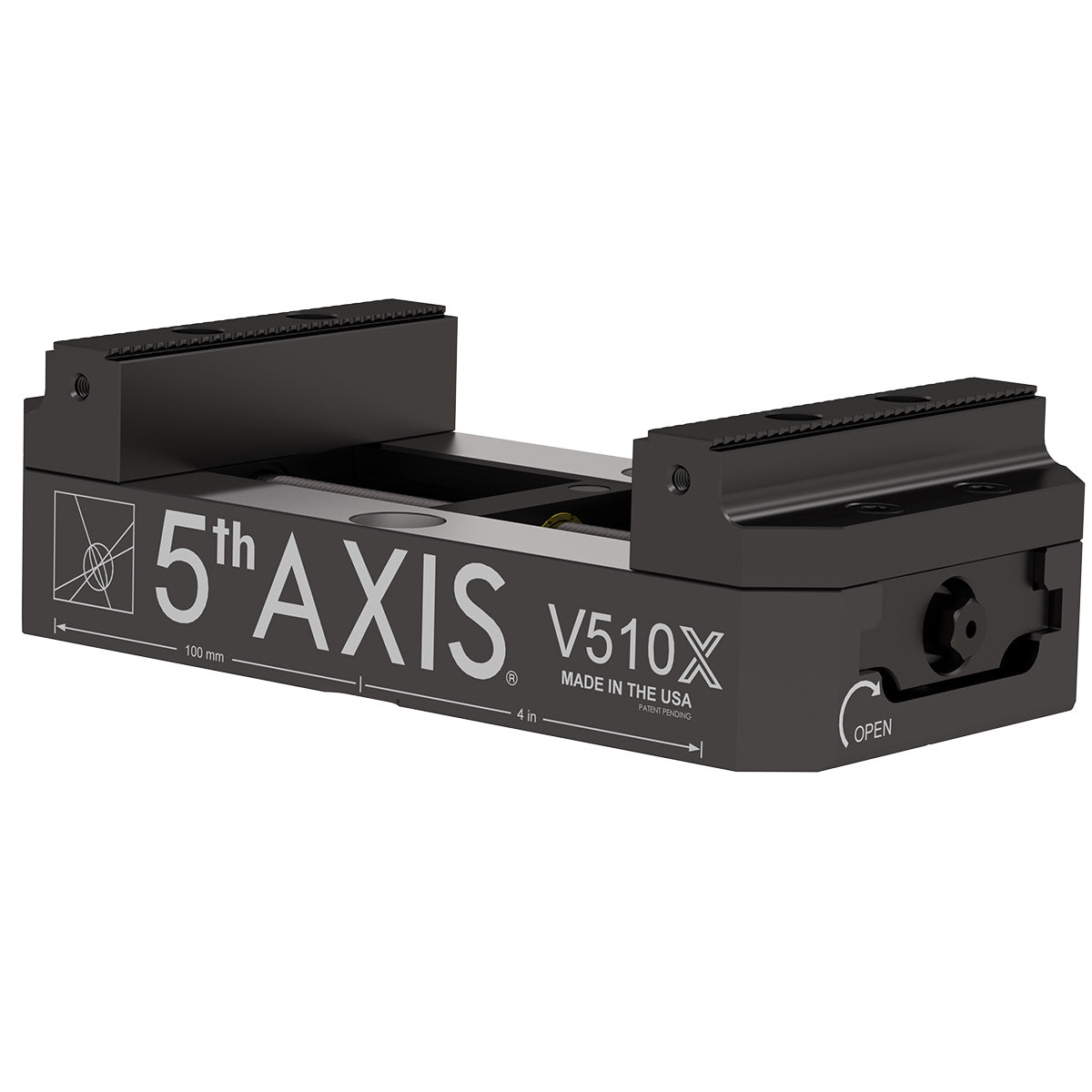

Self-Centering Vise 126mm x 254mm x 74mm

- Self-Centering Vise

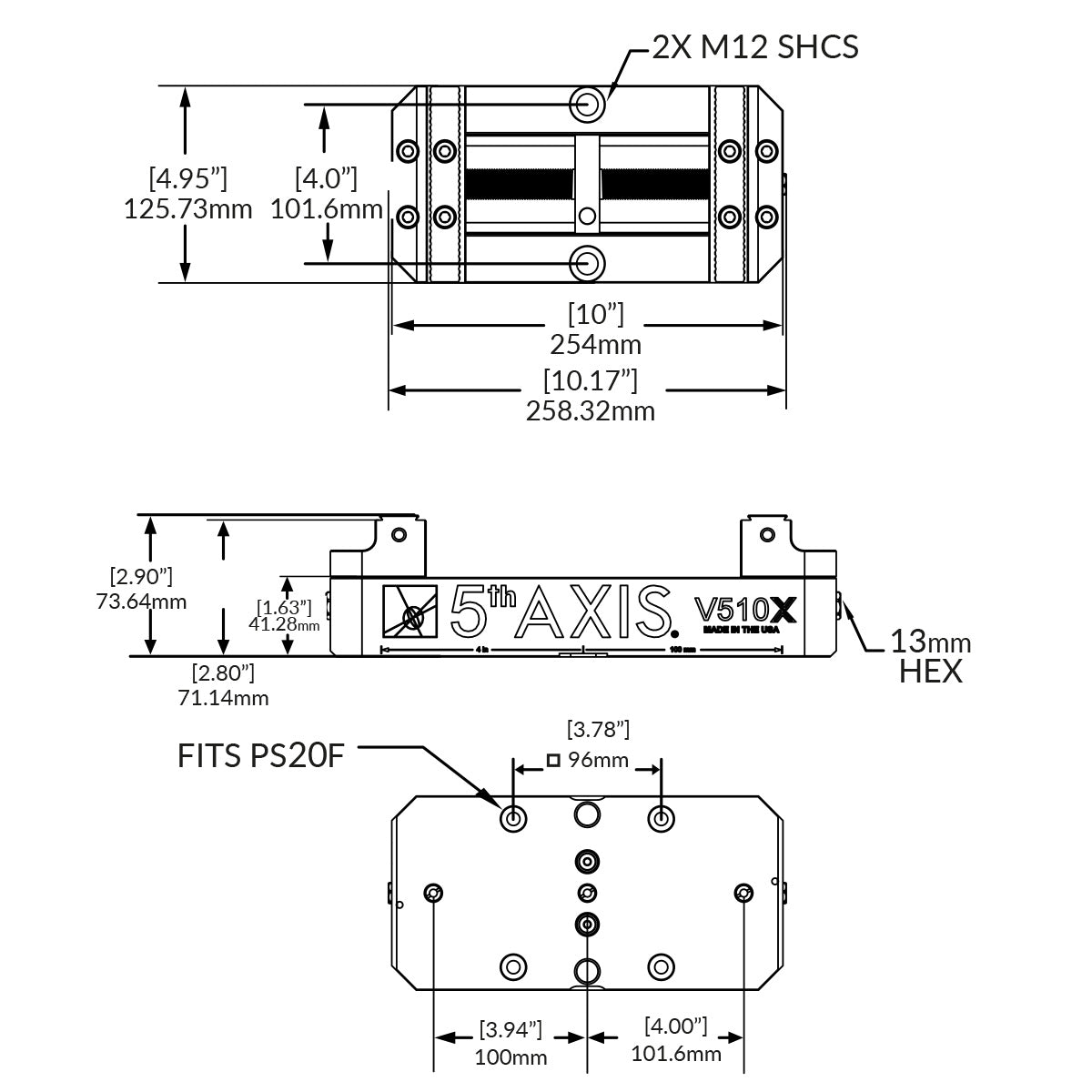

- Size: 125.7mm x 254mm x 73.6mm
- 4-bolt jaw mounting system to reduce jaw deflection
- Serrated gripper teeth for superior hold
- Reversible / quick-change jaws
- 45° dovetail built into hard jaw
- Jaw Width: 125.7mm
- Clamping Force: 25.0 kN @ 75 Nm
- Max Torque (Leadscrew): 75 Nm
- Max Torque (Jaw Bolt): 47 Nm
- Max Torque (Mounting Bolt): 47 Nm
- Clamping Range (Jaws Forward): 8.3mm - 184.7mm
- Clamping Range (Jaws Reversed): 60.3mm - 234.7mm
- Zero-point pitch = 96mm
- Diameter of clamping studs = 20mm (PS20F)
