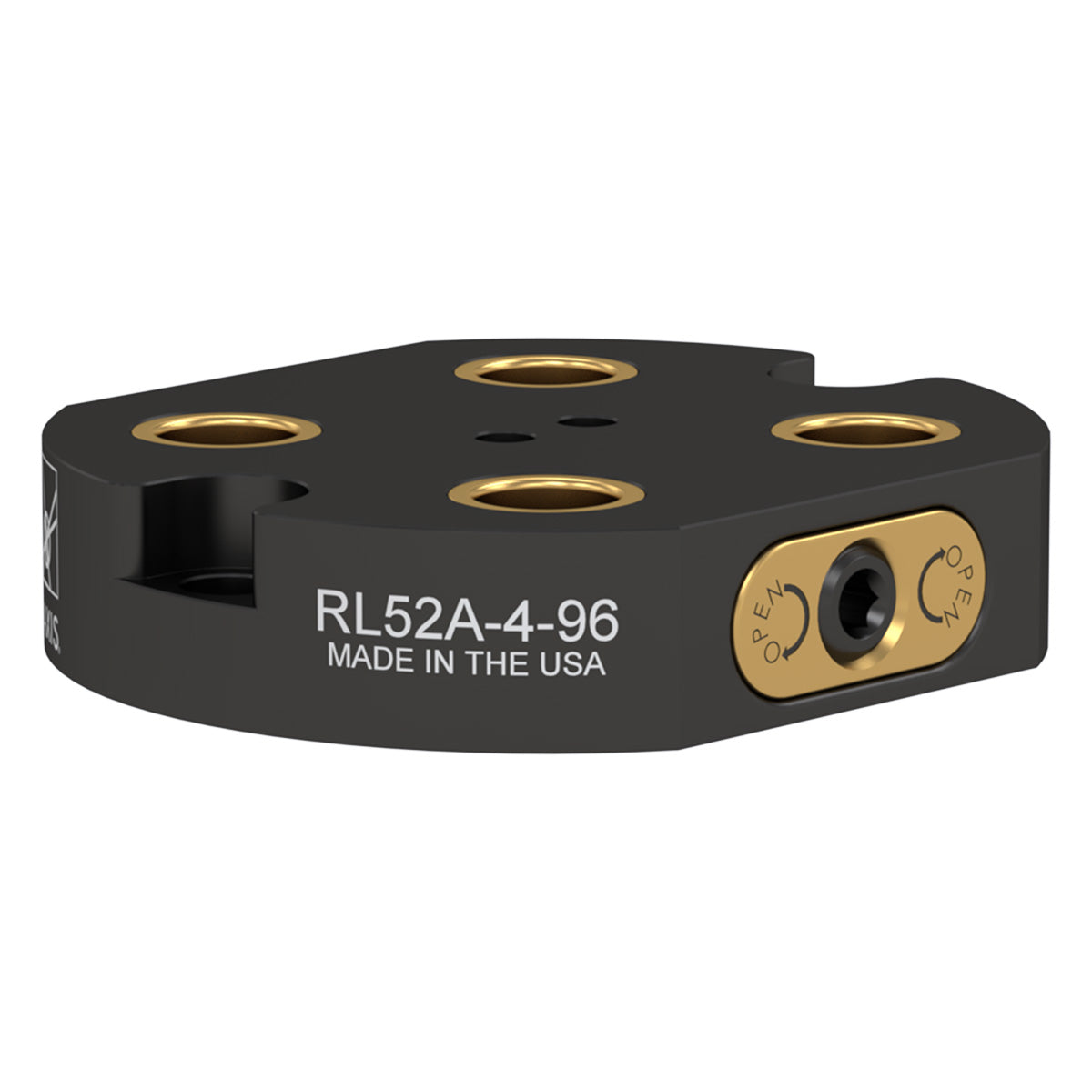

Zero-Point Plate - 52mm - RockLock Ø116mm x 25mm

- 52mm Low Profile Base, Steel (Mounting: 2x M10 at 180° on 96mm PCD)

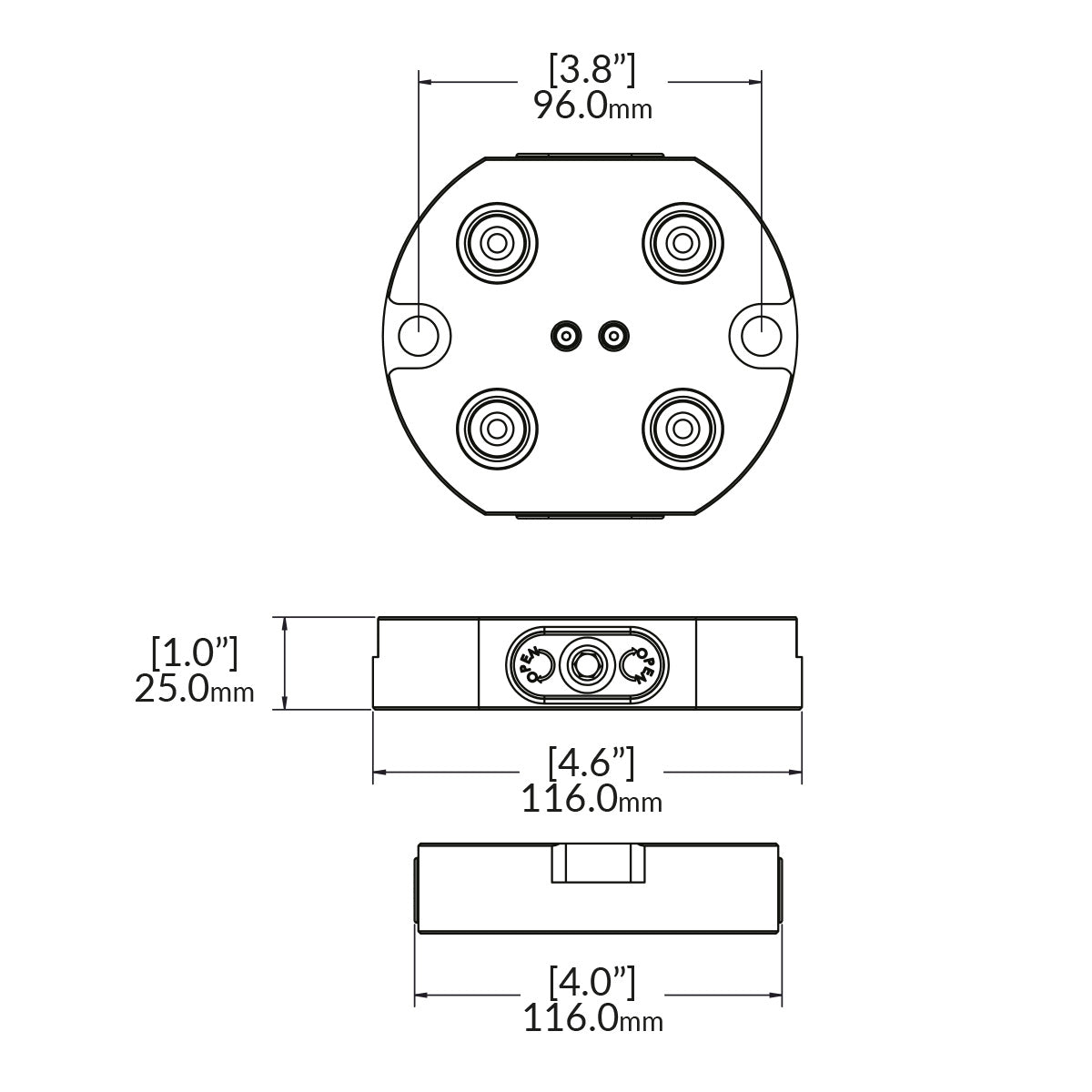

- Size: Ø116mm x 25mm
- Material: Steel (S)
- Mounting: 2x M10 at 180° on 96mm PCD
- Maximize changeout efficiency with the RockLock system
- Zero-point pitch = 52mm
- Diameter of clamping studs = 16mm (PS16F)

This circular RockLock adapter is built for small and medium sized rotaries and trunnions with 96mm bolt circle.
Repeatability of +/- 8 µm.
